Product Recognition
Certification Number	ZC10-19086694

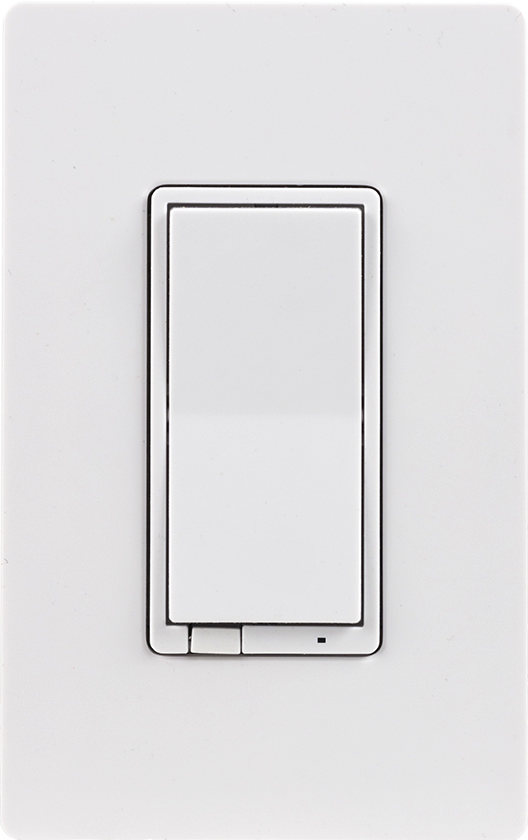

Name	In-Wall Smart Switch
Short Description	Honeywell In-Wall Smart Switch with QuickFit and SimpleWire enhancements.
Long Description	In-Wall Smart Switch with QuickFit and SimpleWire enhancements. Revolutionary QuickFit design features a housing depth that is up to 20 percent smaller than the previous Z-Wave models. This reduced size coupled with the elimination of heat taps provides a better fit in older style boxes and multi-gang configurations. SimpleWire technology allows line and load to automatically be configured with auto-sensing line-load terminals. All of this is coupled with Z-Wave S2 and Smart Start allows for effortless installation while being safer than ever!
Brand	Honeywell
Product Identifier	39348/ZW4008
OEM Version	HW: 255 FW: 5.53
Hardware Platform	ZM5202
Z-Wave Version	6.81.03
Library Type	SLAVE_ENHANCED_232
Device Type	On/Off Power Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x0039
Product Type ID	0x4952
Product ID	0x3135
User Icon	0x0700
Installer Icon	0x0704
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	All Lighting Devices, On/Off Switches/Devices
Countries / Regions	United States of America
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_CONFIGURATION_V4 Configuration V4 0x70 4 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 Firmware Update Meta-Data V4 0x7A 4 COMMAND_CLASS_SCENE_ACTUATOR_CONF Scene Actuator Conf 0x2C 1 COMMAND_CLASS_SWITCH_BINARY_V2 Switch Binary V2 0x25 2 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_APPLICATION_STATUS Application Status 0x22 1 COMMAND_CLASS_TRANSPORT_SERVICE_V2 Transport Service V2 0x55 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_BASIC_V2 Basic V2 0x20 2 COMMAND_CLASS_SECURITY_2 Security S2 0x9F 1 COMMAND_CLASS_VERSION_V3 Version V3 0x86 3 COMMAND_CLASS_CENTRAL_SCENE_V3 Central Scene V3 0x5B 3 COMMAND_CLASS_SUPERVISION Supervision 0x6C 1 COMMAND_CLASS_SCENE_ACTIVATION Scene Activation 0x2B 1 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC_V2 Basic V2 0x20 2
S2 Classes	S2_UNAUTHENTICATED, S2_AUTHENTICATED
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual 39348 Binder.pdf
Features	Feature Values Neutral Wire Required Firmware Updatable Value Updatable by Manufacturer Z-Wave Scene Type Value Central Scene
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Association Group 1 supports Lifeline, Binary Switch Report 2 5 0 Association Group 2 supports Basic Set and is controlled by pressing the ON or OFF button with the local load 3 5 0 Association Group 3 supports Basic Set and is controlled by double pressing the ON or OFF button
Configuration Parameters	Parameter Number Name Format Size Min Value Max Value Default Value Parameter Values 3 LED Indication Configuration 0 1 0 0 0 From To Description 0 0 LED ON when device is OFF, LED OFF when device is ON 1 1 LED ON when device is ON, LED OFF when device is OFF 2 2 LED Always OFF 3 3 LED Always ON
Texts	ID Description Value 1 Inclusion 1. Follow the instructions for your Z-Wave certified controller to add a device to the Z-Wave network. 2. Once the controller is ready to add your device, press and release the top or bottom of the wireless smart switch (rocker) to add it in the network. If prompted by the controller to enter the S2 security code, refer to the QR code/security number on the back of the box, or the QR code label on the product. 2 Exclusion 1. Follow the instructions for your Z-Wave certified controller to remove a device from the Z-Wave network. 2. Once the controller is ready to remove your device, press and release the top or bottom of the wireless smart switch (rocker) to remove it from the network. 5 Factory Reset Quickly press ON (top) button 3 times, then, immediately press the OFF (bottom) button 3 times. The LED will flash ON/OFF 5 times when completed successfully. Note: This should only be used in the event your network’s primary controller is missing or otherwise inoperable.
Supports NWI	Yes
Supports Explorer Frames	Yes
Supports SmartStart	Yes
