Product Recognition
Certification Number	ZC10-15080016

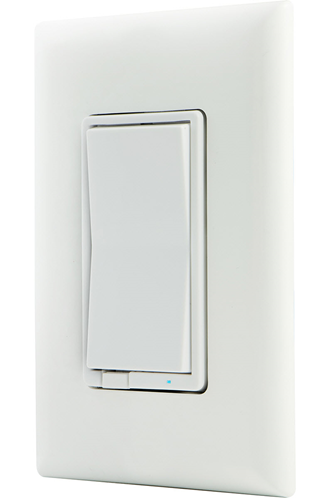

Name	In-Wall Smart Switch
Short Description	Transform any home into a smart home with the GE Z-Wave Smart Lighting Control In-Wall Smart Switch.
Long Description	Transform any home into a smart home with the GE Z-Wave Smart Lighting Control In-Wall Smart Switch. The on/off switch replaces your current light switch, uses your existing wiring, and provides Z-Wave wireless and in-wall control of overhead lighting. The switch enables wireless control of on/off functions of direct wire incandescent, LED, xenon, halogen and fluorescent lighting. Providing ultimate flexibility, the GE Z-Wave Smart Lighting Control On/Off Switch allows you to operate the switch by itself or easily integrate the switch with two-way, three-way or four-way wiring configurations by adding the GE Add-On switch. Single pole wiring configuration turns the light or appliance on/off from one location. Three-way wiring configuration turns the light on/off from two separate locations. Four-way wiring configuration turns the light on/off from three separate locations. The GE Add-On Switch is required for Three-way or Four-way installations. The lighting control includes a blue LED indicator light to easily locate the switch in a dark room. Take control of your home lighting with GE Z-Wave Smart Lighting Controls!
Brand	GE
Product Identifier	14291 (ZW4005)
OEM Version	HW: 255
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	SLAVE_ENHANCED_232
Device Type	On/Off Power Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x0063
Product Type ID	0x4952
Product ID	0x3036
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	All Lighting Devices, On/Off Switches/Devices
Countries / Regions	United States of America
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual 14291-1 EnFrSp QSG.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 1 0 Z-Wave Plus Lifeline
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 3 LED Light When shipped from the factory, the LED is set to turn ON when the connected light is turned OFF. This is the default setting and can be changed if your primary controller supports the node configuration function. To make the LED turn ON when the light is turned ON, change parameter 3’s value to “1”. To turn the LED OFF at all times, change parameter 3’s value to 2. 0 1 0 0 0 From To Description 0 0 LED Light on when Z-Wave turned OFF (Default) 1 1 LED Light on when Z-Wave turned On 2 2 LED Light Always Off 4 Invert Switch If the switch is accidentally installed upside down with “On” at the bottom and “Off” at the top, the default On/Off rocker settings can be reversed by changing parameter 4’s value to “1”. 0 1 0 0 0 From To Description 0 0 (Default) 1 1 Invert Switch
Texts	ID Description Value 1 Inclusion 1. Follow the instructions for your Z-wave certified controller to include a device to the Z-wave network. 2. Once the controller is ready to include your device, press and release the top or bottom of the wireless smart switch(rocker) to include it in the network. 2 Exclusion 1. Follow the instructions for your Z-wave certified controller to exclude a device from the Z-wave network. 2. Once the controller is ready to Exclude your device, press and release the top or bottom of the wireless smart switch(rocker) to exclude it from the network. 5 Factory Reset 1. Quickly press ON (Top) button three (3) times then immediately press the OFF (Bottom) button three (3) times. The LED will flash ON/OFF 5 times when completed successfully. Note: This should only be used in the event your networks primary controller is missing or otherwise inoperable.
Supports NWI	Yes
Supports Explorer Frames	Yes
