Product Recognition | |
|---|
Certification Number | ZC10-21057037 |
|---|

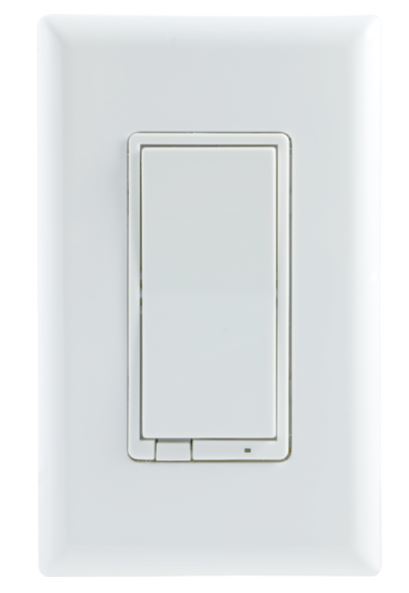

Name | In-Wall Smart Switch |
|---|
Short Description | Transform any home into a smart home with the Resideo Z-Wave In-Wall Switch. |
|---|
Long Description | Transform any home into a smart home with the Resideo Z-Wave In-Wall Switch. The on/off switch replaces your current light switch, uses your existing wiring, and provides Z-Wave wireless and in-wall control of overhead lighting. The switch enables wireless control of on/off functions of direct wire incandescent, LED, xenon, halogen and fluorescent lighting. Providing ultimate flexibility, the Resideo Z-Wave Switch allows you to operate the switch by itself or easily integrate the switch with two-way, three-way or four-way wiring configurations by adding the Resideo Add-On switch. Single pole wiring configuration turns the light or appliance on/off from one location. Three-way wiring configuration turns the light on/off from two separate locations. Four-way wiring configuration turns the light on/off from three separate locations. The Resideo Add-On Switch is required for Three-way or Four-way installations. The lighting control includes a blue LED indicator light to easily locate the switch in a dark room. Take control of your home lighting with Resideo Z-Wave Smart Controls! |
|---|
Brand | Resideo |
|---|
Product Identifier | 39455/ ZW4008 |
|---|
Product Line | In-Wall Switch |
|---|
OEM Version | HW: 255 FW: 5.54 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.81.04 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | On/Off Power Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x041B |
|---|
Product Type ID | 0x4952 |
|---|
Product ID | 0x3036 |
|---|
User Icon | 0x0700 |
|---|
Installer Icon | 0x0704 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | All Lighting Devices, On/Off Switches/Devices |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_CONFIGURATION_V4 | Configuration V4 | 0x70 | 4 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_SCENE_ACTUATOR_CONF | Scene Actuator Conf | 0x2C | 1 | COMMAND_CLASS_SWITCH_BINARY_V2 | Switch Binary V2 | 0x25 | 2 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_APPLICATION_STATUS | Application Status | 0x22 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_CENTRAL_SCENE_V3 | Central Scene V3 | 0x5B | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_SCENE_ACTIVATION | Scene Activation | 0x2B | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product Manual | |
|
|---|
Features | Feature | Values |
|---|
Z-Wave Scene Type | Value |
|---|
Scene & Central Scene |
| Neutral Wire Required | | Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Switch Type | Value |
|---|
Decorator Paddle Push |
| Switch Load Capacity Watts | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Description |
|---|
2 | 5 | 0 | Single Press | Association Group 2 supports Basic Set and is controlled by single pressing the button. | 3 | 5 | 0 | Double Press | Association Group 3 supports Basic Set and is controlled by double pressing the button. | 1 | 5 | 0 | Lifeline | Z-Wave Plus Lifeline, supports device reset locally and receives unsolicited status updates. |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
3 | Parameter 3 | Invert/disable LED (Adjusts when the indicator LED is turned ON, OFF or disables it entirely) | 1 | 1 | 0 | 2 | 0 | From | To | Description |
|---|
0 | 0 | LED ON/device OFF | 1 | 1 | LED ON/device ON | 2 | 2 | Disable LED |
| 4 | Parameter 4 | Invert switch (In case switch is installed upside down) | 1 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 0 | Default (Top ON/bottom OFF) | 1 | 1 | Invert switch (Top OFF/bottom ON) |
|
|
|---|
Texts | ID | Description | Value |
|---|
2 | Classic Exclusion | REMOVING AND RESETTING THE DEVICE
1. Follow the instructions for your Z-Wave certified controller to remove a device from the Z-Wave network.
2. Once the controller is ready to remove your device, press and release the top or bottom of the smart switch (rocker) to remove it from the network. | 5 | Factory Reset Procedure | RETURNING SWITCH TO FACTORY DEFAULTS
Quickly press ON (top) button three times, then, immediately press the OFF (bottom) button three times. The LED indicator will flash ON/OFF five times when completed successfully.
NOTE: This should only be used in the event your network’s primary controller is missing or otherwise inoperable. | 8 | Where to find S2 DSK on product | If prompted by the controller to enter the S2 security code, refer to the QR code/security number on the back of the box, or the QR code label on the product. | 1 | Classic Inclusion | CONNECTING YOUR DEVICE TO A Z-WAVE NETWORK
1. Follow the instructions for your Z-Wave certified controller to add a device to the Z-Wave network.
2. Once the controller is ready to add your device, press and release the top or bottom of the smart switch (rocker) to add it in the network.
If prompted by the controller to enter the S2 security code, refer to the QR code/security number on the back of the box, or the QR code label on the product. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
