Product Recognition | |
|---|
Certification Number | ZC10-21107058 |
|---|

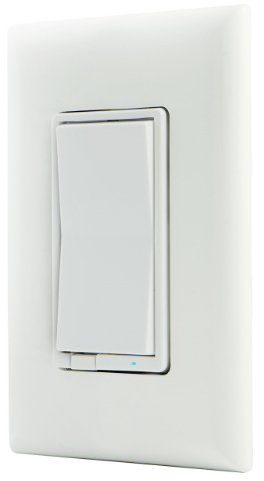

Name | In-Wall Smart Switch |
|---|
Short Description | Z-Wave Plus™ In-Wall Smart Switch replaces existing light switch and allows remote control from any Z-Wave™ certified hub. |
|---|
Long Description | Z-Wave Plus™ In-Wall Smart Switch replaces existing light switch and allows remote control from any Z-Wave™ certified hub. |
|---|
Brand | iDevices |
|---|
Product Identifier | 61301/ZW4008 |
|---|
Product Line | In-Wall Smart Switch |
|---|
OEM Version | HW: 255 FW: 5.55 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.81.03 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | On/Off Power Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0458 |
|---|
Product Type ID | 0x4952 |
|---|
Product ID | 0x3136 |
|---|
User Icon | 0x0700 |
|---|
Installer Icon | 0x0704 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | All Lighting Devices, On/Off Switches/Devices, Lighting Accessories |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_CONFIGURATION_V4 | Configuration V4 | 0x70 | 4 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_SCENE_ACTUATOR_CONF | Scene Actuator Conf | 0x2C | 1 | COMMAND_CLASS_SWITCH_BINARY_V2 | Switch Binary V2 | 0x25 | 2 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_APPLICATION_STATUS | Application Status | 0x22 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_CENTRAL_SCENE_V3 | Central Scene V3 | 0x5B | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_SCENE_ACTIVATION | Scene Activation | 0x2B | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product Manual in English | |
|
|---|
Features | Feature | Values |
|---|
Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Neutral Wire Required | | Switch Load Capacity Watts | | Switch Type | Value |
|---|
Decorator Paddle Push with Indicator |
| Z-Wave Scene Type | Value |
|---|
Scene & Central Scene |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Description |
|---|
2 | 5 | 0 | Single Press | Association group 2 supports basic set and is controlled by single pressing the button | 3 | 5 | 0 | Double Press | Association group 3 supports basic set and is controlled by double pressing the button | 1 | 5 | 0 | Lifeline | Lifeline. Supports device reset locally and receives unsolicited status updates |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Read-only | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
3 | LED Indication Configuration | LED Indication Configuration | 1 | Yes | 1 | 0 | 3 | 0 | From | To | Description |
|---|
0 | 0 | LED ON when device is OFF, LED is OFF when device is ON | 1 | 1 | LED ON when device is ON, LED is OFF when device is OFF | 2 | 2 | LED always OFF | 3 | 3 | LED Always ON |
|
|
|---|
Texts | ID | Description | Value |
|---|
8 | Where to find S2 DSK on product | Page 1 of Section 4.
If prompted by the controller to enter the S2 security code, refer to the QR
code/security number on the side of the box or the QR code label on the
product (see Figure 1). Enter the 5-digit code. | 1 | Classic Inclusion | Adding your device to a Z-Wave network
1. Follow the instructions for your Z-Wave certified
controller to add a device to the Z-Wave network.
2. Once the controller is ready to add your device, press the
top or bottom of the wireless smart switch (rocker). | 2 | Classic Exclusion | To remove and reset the device
1. Follow the instructions for your Z-Wave certified controller
to remove a device from the Z-Wave network.
2. Once the controller is ready to remove your device, press
the top or bottom of the wireless smart switch (rocker).
To return your switch to factory defaults
1. Quickly press ON (top) button three times, then, immediately
press the OFF (bottom) button three times. The LED will
flash ON/OFF five times when completed successfully.
Note: This should only be used if your network’s primary controller is
missing or otherwise inoperable. | 5 | Factory Reset Procedure | To return your switch to factory defaults
1. Quickly press ON (top) button three times, then, immediately
press the OFF (bottom) button three times. The LED will
flash ON/OFF five times when completed successfully.
Note: This should only be used if your network’s primary controller is
missing or otherwise inoperable. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
