Product Recognition | |
|---|---|
Certification Number | ZC10-16075144 |

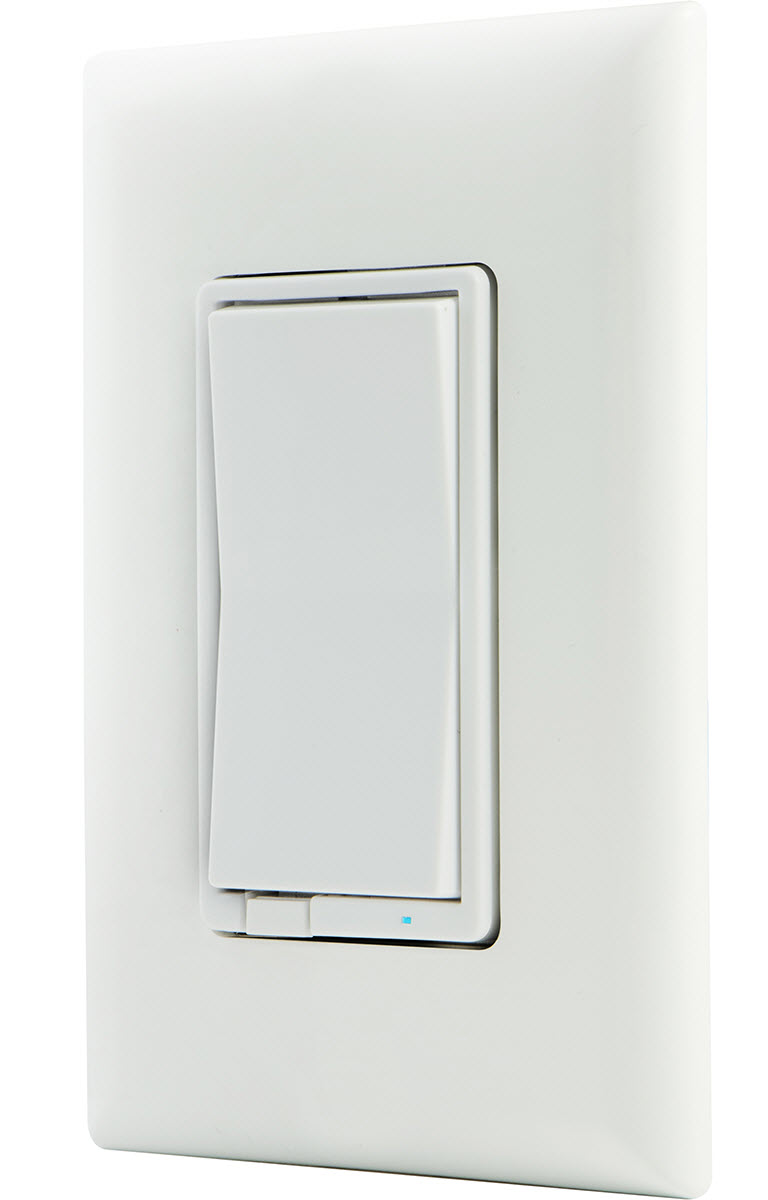

Name | In-Wall Smart Switch |
Short Description | Transform any home into a smart home with the Jasco Z-Wave In-Wall Smart Switch. |
Long Description | Transform any home into a smart home with the Jasco Z-Wave In-Wall Smart Switch. The on/off switch replaces your current light switch, uses your existing wiring, and provides Z-Wave wireless and in-wall control of overhead lighting. The switch enables wireless control of on/off functions of direct wire incandescent, LED, xenon, halogen and fluorescent lighting. Providing ultimate flexibility, the Jasco Z-Wave Smart Lighting Control On/Off Switch allows you to operate the switch by itself or easily integrate the switch with two-way, three-way or four-way wiring configurations by adding the Jasco Add-On switch. Single pole wiring configuration turns the light or appliance on/off from one location. Three-way wiring configuration turns the light on/off from two separate locations. Four-way wiring configuration turns the light on/off from three separate locations. The Jasco Add-On Switch is required for Three-way or Four-way installations. The lighting control includes a blue LED indicator light to easily locate the switch in a dark room. Take control of your home lighting with Jasco Z-Wave Smart Lighting Controls! |
Brand | Jasco Products Company |
Product Identifier | 14318/ZW4005 |
OEM Version | HW: 255 FW: 5.20 |
Hardware Platform | ZM5202 |
Z-Wave Version | 6.51.06 |
Library Type | SLAVE_ENHANCED_232 |
Device Type | On/Off Power Switch |
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
Manufacturer ID | 0x0063 |
Product Type ID | 0x4952 |
Product ID | 0x3130 |
User Icon | 07 00 |
Installer Icon | 07 00 |
Frequency Plans | US: 916.00MHz, 908.40MHz |
Categories | All Lighting Devices, On/Off Switches/Devices |
Countries / Regions | United States of America |
Documents | |
Features | |
Association Groups | |
Configuration Parameters | |
Texts | |
Supports NWI | Yes |
Supports Explorer Frames | Yes |
