| Product Recognition | |
|---|
| Certification Number | ZC10-16105264 |
|---|

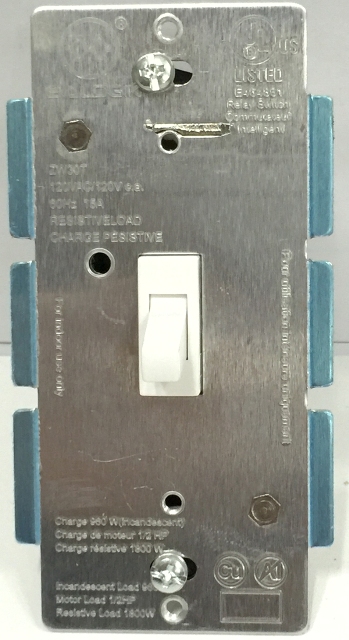

| Name | In-Wall Smart Switch |
|---|
| Short Description | In-wall style Smart switch |
|---|
| Long Description | It is an In-wall type device controlled by Z-Wave controller and can be configured in Z-Wave sensor network, if Z-Wave certified controller features remote access, you can control lights at home from your mobile phone separately, and manual On/Off light by front Up/Down push button. |
|---|
| Brand | show home |
|---|
| Product Identifier | ZW30T |
|---|
| OEM Version | HW: 1 FW: 20.16 |
|---|
| Hardware Platform | ZM5202 |
|---|
| Z-Wave Version | 6.51.07 |
|---|
| Library Type | SLAVE_ROUTING |
|---|
| Device Type | On/Off Power Switch |
|---|
| Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
| Manufacturer ID | 0x015D |
|---|
| Product Type ID | 0x0112 |
|---|
| Product ID | 0x251C |
|---|
| User Icon | 0x0700 |
|---|
| Installer Icon | 0x0702 |
|---|
| Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
| Categories | All Lighting Devices, On/Off Switches/Devices |
|---|
| Countries / Regions | United States of America |
|---|
| Documents | |
|---|
| Features | | Feature | Values |
|---|
| Electric Load Type | | | Switch Load Capacity Watts | | | Neutral Wire Required | | | Switch Type | |
|
|---|
| Association Groups | | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
| 1 | 5 | 0 | Z-Wave Plus Lifeline |
|
|---|
| Texts | | ID | Description | Value |
|---|
| 1 | Inclusion | 1. Follow the instructions of certified controller to include a device from
different manufactures into the Z-Wave network.
2. Once the controller is ready to include your device, triple press the Up/Down
push button to include it in the network.
3. Once your controller has confirmed that the device has been included,
refresh the Z-Wave network to optimize performance.
4. The device is associated in the same group when it included in setting
process. Now you can control your Z-Wave device according to groups,
scenes, schedules and automation programmed. If your controller features
remote access, you can now control all devices in Z-Wave network from mobile devices. | | 2 | Exclusion | 1. Follow the instructions for your Z-Wave certified controller to exclude a device from the Z-Wave network.
2. Once the controller is ready to Exclude your device, triple press the
Up/Down push button to exclude it from the network. | | 5 | Factory Reset | 1. Use controller to remove device from network will reset it to factory default.
2. Please use this procedure only in the event that the network primary controller is missing or otherwise inoperable. |
|
|---|
| Supports NWI | Yes |
|---|
| Supports Explorer Frames | Yes |
|---|
