Product Recognition
Certification Number	ZC10-16105268

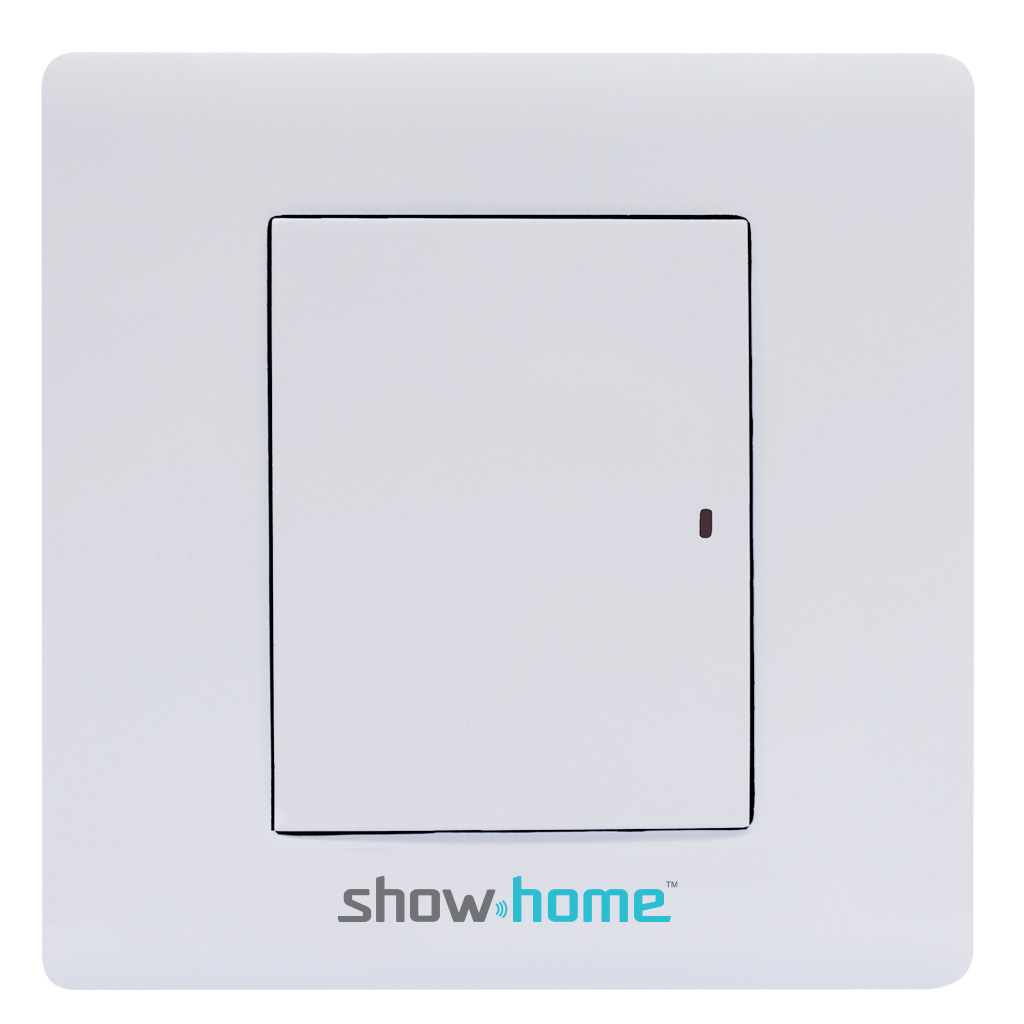

Name	In-Wall Smart Switch
Short Description	An In-wall type smart switch
Long Description	An In-wall type device controlled by Z-Wave controller through a Z-Wave gateway for internet of thing service (IoT). This smart switch can be configured to a Z-Wave sensor network, controlling lights at home from your mobile phone as well as manual On/Off light by the front button.
Brand	show home
Product Identifier	ZW661
OEM Version	HW: 2 FW: 20.15
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	SLAVE_ROUTING
Device Type	On/Off Power Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x015D
Product Type ID	0x0211
Product ID	0x242C
User Icon	0x0700
Installer Icon	0x0701
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	All Lighting Devices, On/Off Switches/Devices
Countries / Regions	European Union
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual ZW661-Manual1011.pdf
Features	Feature Values Color Value White Electric Load Type Value Incandescent LED Switch Load Capacity Current Value 15A Switch Load Capacity Watts Value 3200W Neutral Wire Required Switch Type Value Push Button
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Z-Wave Plus Lifeline
Texts	ID Description Value 5 Factory Reset 1. Exclude the device from Z-Wave network to reset it to factory default. 2. Please use this procedure only in the event that the network primary controller is missing or otherwise inoperable 2 Exclusion 1. Follow the instructions for your Z-Wave certified controller to exclude a device from the Z-Wave network. 2. Once the controller is ready to Exclude your device, triple click front Button to exclude it from the network. 1 Inclusion 1. Follow the instructions for your Z-Wave certified controller to include a device to the Z-Wave network. 2. Once the controller is ready to include your device, triple click front Button to include it in the network.
Supports NWI	Yes
Supports Explorer Frames	Yes
