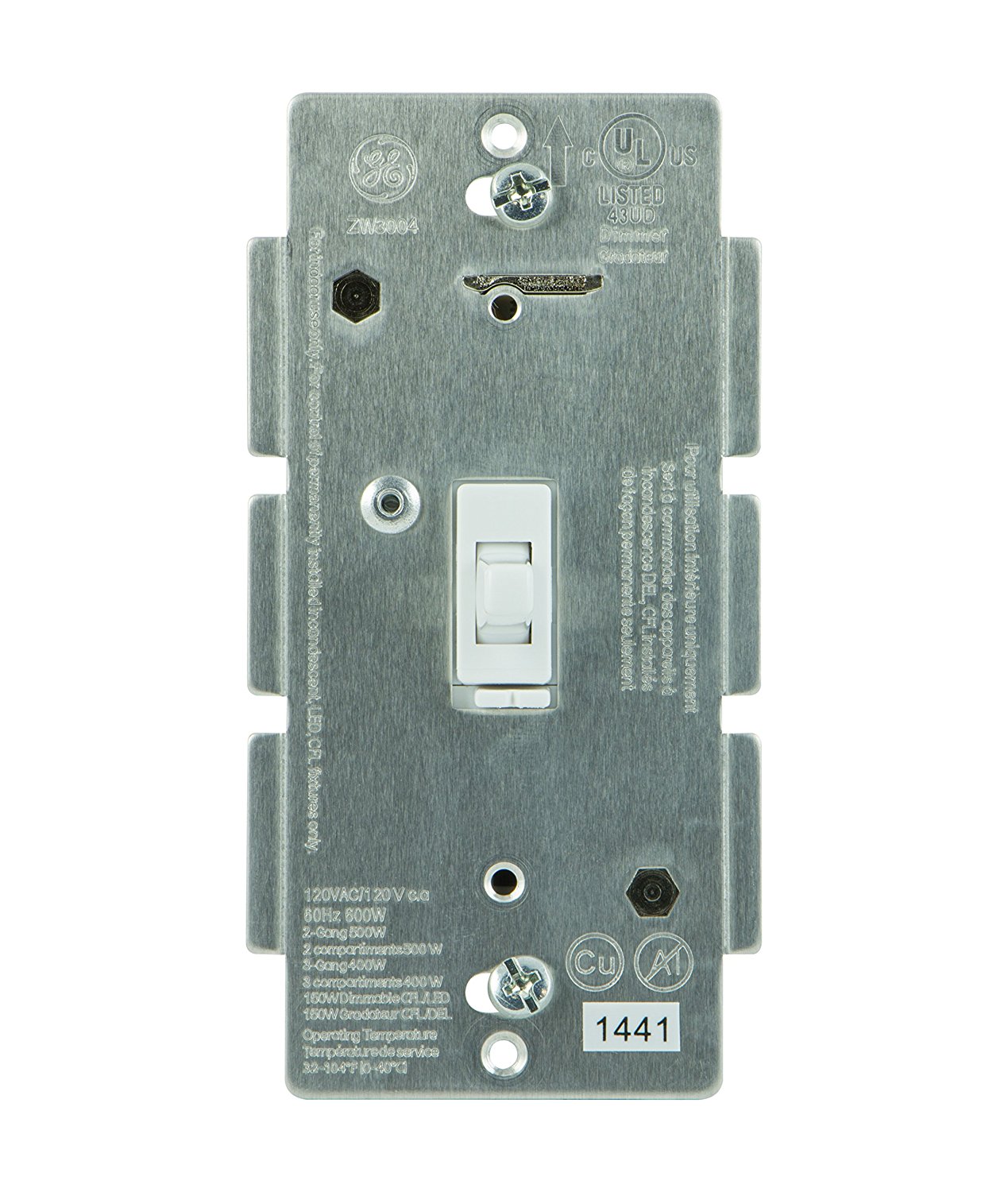

Certification Number | ZC10-16105295 |
|---|
Name | In-Wall Smart Toggle Dimmer |
|---|
Short Description | Transform any home into a smart home with the GE Z-Wave In-Wall Smart Toggle Dimmer. |
|---|
Long Description | Transform any home into a smart home with the GE Z-Wave In-Wall Smart Toggle Dimmer. The dimmer enables wireless control of on/off and dim functions of hard-wired dimmable LED/CFL and incandescent lighting. The dimmer replaces your current light switch, uses your existing wiring, and provides Z-Wave wireless and in-wall control of overhead lighting. Use the dimmer feature to customize the lighting output and create the perfect ambiance for any room. Providing ultimate flexibility, the In-Wall Smart Dimmer allows you to operate the switch by itself or easily integrate the switch three-way or four-way wiring configurations by adding the GE Add-On Switch. Single Pole wiring configuration controls the light from one location. Three-way wiring configuration controls the light from two separate locations. Four-way wiring configuration controls the light from three separate locations. The GE Add-On Switch is required for three-way or four-way installations. Take control of your home lighting with GE Z-Wave Wireless Lighting Controls! |
|---|
Brand | GE |
|---|
Product Identifier | 14295/ZW3004 |
|---|
OEM Version | HW: 255 FW: 5.21 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.51.08 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Light Dimmer Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0063 |
|---|
Product Type ID | 0x4944 |
|---|
Product ID | 0x3130 |
|---|
User Icon | 0x0600 |
|---|
Installer Icon | 0x0600 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | All Lighting Devices, Dimming Lighting Devices |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_SCENE_ACTUATOR_CONF | Scene Actuator Conf | 0x2C | 1 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_SWITCH_ALL | Switch All | 0x27 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_CRC_16_ENCAP | CRC16 Encapsulation | 0x56 | 1 | COMMAND_CLASS_SWITCH_MULTILEVEL_V2 | Switch Multilevel V2 | 0x26 | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_SCENE_ACTIVATION | Scene Activation | 0x2B | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 | Firmware Update Meta-Data V2 | 0x7A | 2 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC | Basic | 0x20 | 1 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Neutral Wire Required | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | Z-Wave Plus Lifeline, Multilevel Switch Report | 2 | 5 | 0 | Supports Basic Set and is controlled with the local load | 3 | 5 | 0 | Supports Basic Set and is controlled by double pressing the On or Off button |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
4 | Invert Switch | Invert Switch | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Default | 1 | 1 | Invert |
| 7 | Dim Rate Adjustments | Dim Rate Adjustments | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
1 | 99 | Number of steps or levels |
| 8 | Dim Rate Adjustments | Dim Rate Adjusments | 0 | 2 | 0 | 0 | 3 | From | To | Description |
|---|
1 | 255 | Timing of steps or levels |
| 9 | Dim Rate Adjustments | Dim Rate Adjustments | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
1 | 99 | Number of steps or levels |
| 10 | Dim Rate Adjustments | Dim Rate Adjustments | 0 | 2 | 0 | 0 | 3 | From | To | Description |
|---|
1 | 255 | Timing of steps |
| 11 | Dim Rate Adjustments | Dim Rate Adjustments | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
1 | 99 | Number of steps or levels |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | 1. Follow the instructions for your Z-Wave certified controller to
include a device to the Z-Wave network.
2. Once the controller is ready to include your device, press
and release the top or bottom of the wireless smart dimmer
(rocker) to include it in the network. | 2 | Exclusion | 1. Follow the instructions for your Z-Wave certified controller to
exclude a device from the Z-Wave network.
2. Once the controller is ready to Exclude your device, press
and release the top or bottom of the wireless smart dimmer
(rocker) to exclude it from the network. | 5 | Factory Reset | 1. Quickly press ON (up) button (3) times then immediately press the OFF (down) button (3) times.
Note: This should only be used in the even your network's primary controller is missing or otherwise inoperable. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
