Product Recognition | |
|---|---|
Certification Number | ZC14-21110022 |

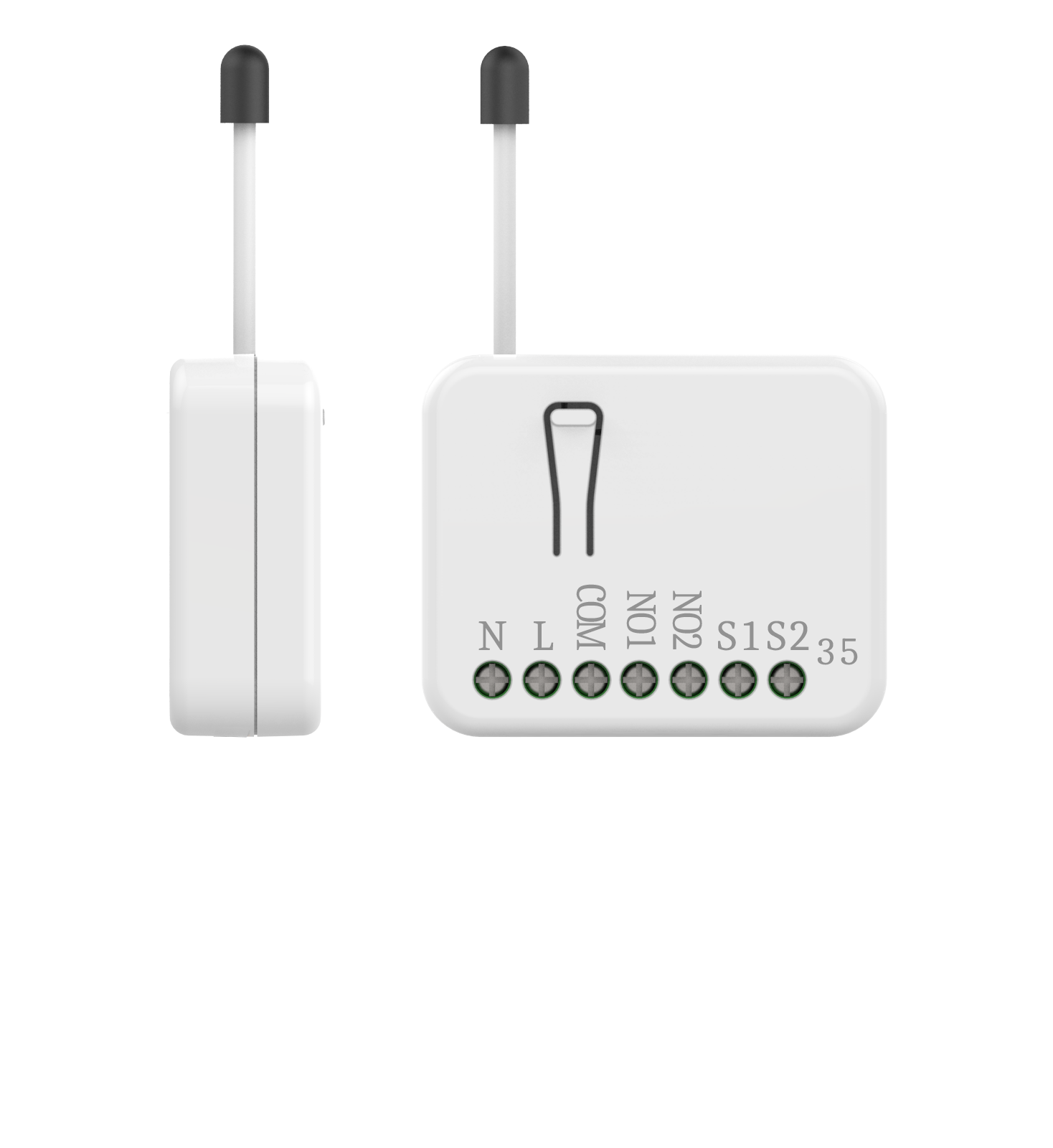

Name | In Wall Switch |
Short Description | This in-wall switch module is a transceiver which is a Z-Wave Plus TM enabled device and is fully compatible with any Z-Wave TM enabled network. Mini size design let the module can easily hide itself into the wall box and that will be good for the house decoration. |
Long Description | This in-wall switch module is a transceiver which is a Z-Wave Plus TM enabled device and is fully compatible with any Z-Wave TM enabled network. Mini size design let the module can easily hide itself into the wall box and that will be good for the house |
Brand | Philio |
Product Identifier | PAN35-US |
Product Line | Philio Z-Wave Products |
OEM Version | HW: 01 FW: 02.00 |
Hardware Platform | ZGM130S037HGN2 / ZGM130S037HGN1 |
Z-Wave Version | 7.15.1 |
Library Type | END_NODE_ENHANCED_232 |
Device Type | Binary Switch DT |
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
Manufacturer ID | 0x013C |
Product Type ID | 0x0001 |
Product ID | 0x0086 |
User Icon | 0x0700 |
Installer Icon | 0x0700 |
Frequency Plans | US: 916.00MHz, 908.40MHz |
Categories | On/Off Switches/Devices |
Countries / Regions | Argentina, Bahamas, Barbados, Bermuda, Bolivia, British Virgin Islands, Canada, Cayman Islands, Colombia, Ecuador, Guatemala, Haiti, Honduras, Jamaica, Mexico, Nicaragua, Panama, Saint Kitts and Nevis, Suriname, Trinidad and Tobago, Turks and Caicos Islands, United States of America |
Supported Command Classes | |
S2 Classes | S2_AUTHENTICATED, S2_UNAUTHENTICATED |
Documents | |
Features | |
Association Groups | |
Configuration Parameters | |
Texts | |
Supported Notification Types | |
Supports NWI | Yes |
Supports Explorer Frames | Yes |
Supports SmartStart | Yes |
Radio Range Z-Wave (m) | 40 |
