Product Recognition | |
|---|
Certification Number | ZC10-18066136 |
|---|
Name | In-wall switch |
|---|

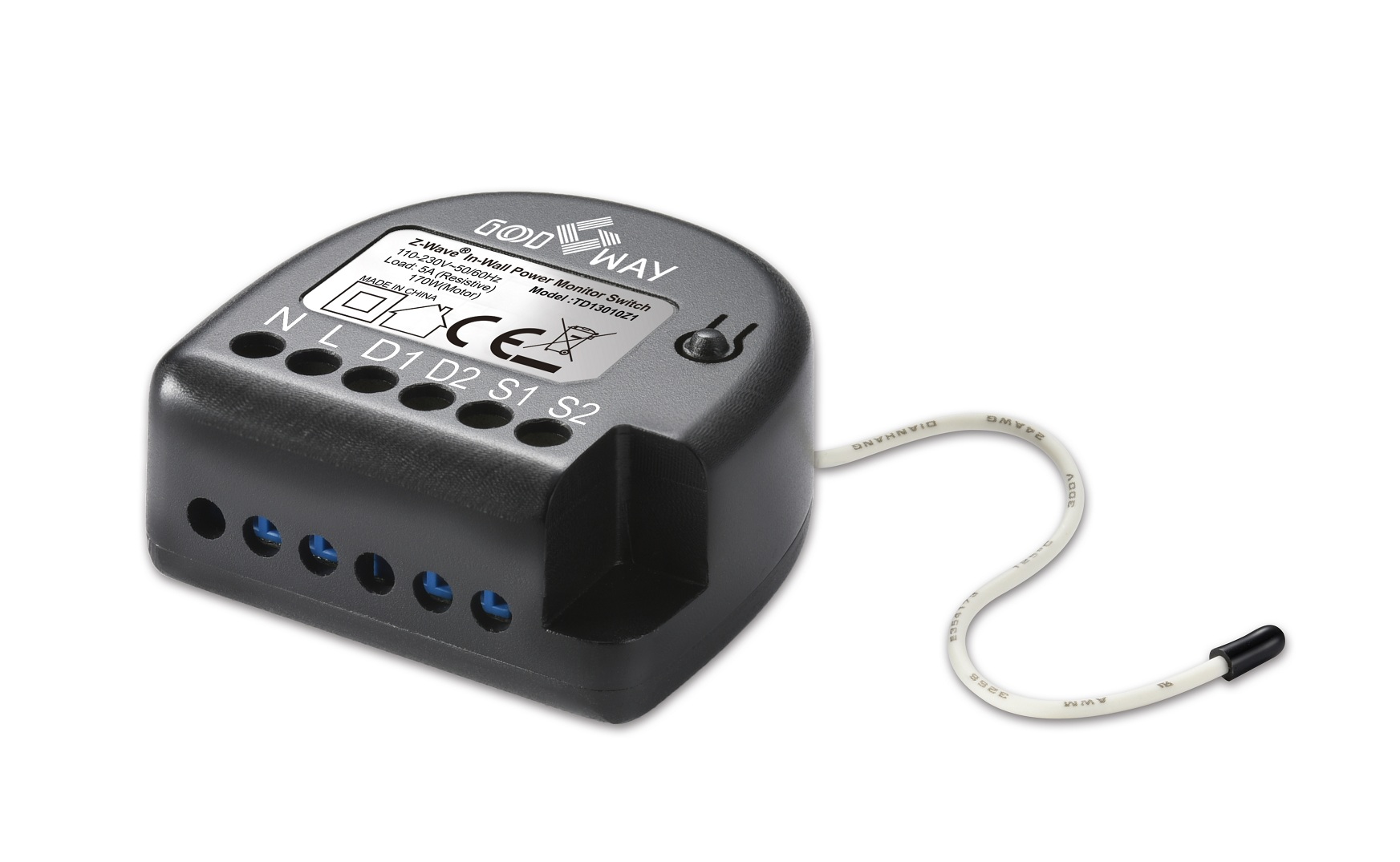

Short Description | This In-wall Power Monitor Switch is a transceiver which is a Z-Wave enabled device and is fully compatible with any Z-Wave enabled network. |
|---|
Long Description | This In-wall Power Monitor Switch is a transceiver which is a Z-Wave enabled device and is fully compatible with any Z-Wave enabled network. Mini-sized design makes it easy to place the In-wall Power Monitor Switch into the wall box and fit in the house decoration. |
|---|
Brand | Good Way Technology, Co., Ltd |
|---|
Product Identifier | TD13010 |
|---|
OEM Version | HW: 1 FW: 2.05 |
|---|
Hardware Platform | ZM5101 |
|---|
Z-Wave Version | 6.81.00 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Power Strip |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0068 |
|---|
Product Type ID | 0x0003 |
|---|
Product ID | 0x0015 |
|---|
User Icon | 0x0700 |
|---|
Installer Icon | 0x0702 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | Energy Meters, All Lighting Devices, On/Off Switches/Devices |
|---|
Countries / Regions | European Union |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_METER_V3 | Meter V3 | 0x32 | 3 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_MULTI_CHANNEL_V4 | Multi-Channel V4 | 0x60 | 4 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Firmware Updatable | Value |
|---|
Updatable by Manufacturer |
| Supported Meter Type | | Supported Notification Types | | Switch Type | | Loads Controlled | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | "Lifeline"
Reports the device status and allows for assigning single device only (main controller by default). | 4 | 5 | 0 | ”alarm EP 2”
It is assigned to switch connected to the S1 terminal (uses Notification command class) | 5 | 5 | 0 | ”Switch 2”
It is assigned to switch connected to the S1 terminal (uses Basic command class) | 3 | 5 | 0 | ”Switch 1”
It is assigned to switch connected to the S1 terminal (uses Basic command class) | 2 | 5 | 0 | ”alarm EP 1”
It is assigned to switch connected to the S1 terminal (uses Notification command class) |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
3 | Switch Type | 0 : Toggle switches (Default) 1 : Toggle switches with memory 2 : Momentary switch | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 2 | switch type |
| 4 | Reload power status | 0 : device does not memorize its status at power cut. Load is disconnected (Default) 1 : device memorizes its status at the power cut. Load will be set to the status from before power cut. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 1 | Reload power status |
| 5 | Power reporting on power change | 0 : Disabled 1~100 : 1 % ~ 100 %. (Default = 10%) | 0 | 1 | 0 | 0 | 10 | From | To | Description |
|---|
0 | 0 | Disble | 1 | 100 | change rate |
| 6 | Watts auto-report period | 0 : Disabled 60~32767Seconds. (Default = 300 Seconds) | 0 | 2 | 0 | 0 | 300 | From | To | Description |
|---|
0 | 0 | Disable | 60 | 32767 | Watts auto-report period |
| 7 | KWH auto-report period | 0 : Disabled Set time interval of reporting KWH (60 ~32767) in seconds. | 0 | 2 | 0 | 0 | 3600 | From | To | Description |
|---|
0 | 0 | Disable | 60 | 32767 | KWH auto-report period |
| 8 | D1 automatically turn on | 0 : Disable (Default) 1~32767 : Time in second that the O2 will turn on automatically. | 0 | 2 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Disable | 1 | 32767 | D1 automatically turn on |
| 9 | D2 automatically turn on | 0 : Disable (Default) 1~32767: Time in second that the O2 will turn on automatically. | 0 | 2 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Disable | 1 | 32767 | D2 automatically turn on |
| 2 | D2 automatically turn off | 0 : Disable (Default) 1~32767: Time in second that the O2 will turn off automatically. | 0 | 2 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Disable | 1 | 32767 | D2 automatically time |
| 1 | D1 automatically turn off | 0 : Disable (Default) 1~32767 : Time in second that the O2 will turn off automatically. | 0 | 2 | 0 | 0 | 0 | From | To | Description |
|---|
1 | 32767 | D1 automatically time | 0 | 0 | Disable |
|
|
|---|
Texts | ID | Description | Value |
|---|
5 | Factory Reset | Press the pairing button 3 times in 2 seconds and press and hold the pairing button for more than 5 seconds at the 3rd time.
The module is excluded and restores to factory default setting.
Then the module will be in auto-inclusion mode for 2 minutes.
Please use this procedure only when the network primary controller is missing or otherwise inoperable.
The Device Reset Locally Command Class is used to notify central controllers that a Z-Wave device is resetting its network specific parameters. | 1 | Inclusion | Include/Exclude Button - Inclusion/exclusion, press 3 times in 2 seconds | 2 | Exclusion | Include/Exclude Button - Inclusion/exclusion, press 3 times in 2 seconds |
|
|---|
Supported / Controlled Meter Types | Meter Type | Rate Type | Description |
|---|
Electric meter | Import | Electric Meter Consumption |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Power Management | (Refer to parameters): State idle |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
