Product Recognition | — |
|---|---|
Certification Number | ZC08-13060014 |

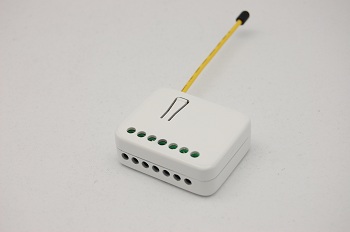

Name | In-Wall Switch Module |
Long Description | Features:
- World first two relay Z-wave 400 series module in a very slim case.
- Input voltage AC100~240V / DC24~60V.
- Adopt Z-Wave protocol to secure the success of wireless two way communication.
- Slim design, easy install.
- Adopt newest Z-wave 400series chip, support multichannel operation and higher data rate (9.6/40/100kbps).
- Resistive load 1500W X 2.
- Two dry contact relay.
- Z-Wave V6.02
- Very low electricity consumption, meet Europe year 2012 energy-related products requirement directive 2009/125/EC no. 1275/2008.
- LVD:EN 60669-2-1:2004+A1:2009+A12:2010,
- EN 60669-2-2 :2006
- EN 60669-1:1999+A1:2002+A2:2008+IS1:2009
- R&TTE: EN 301489, EN 300200, |
Brand | Philio |
Product Identifier | PAN06-2 |
OEM Version | v1.0 |
Hardware Platform | ZM4101 |
Z-Wave Version | 6.01.03 |
Library Type | SLAVE_ENHANCED |
Device Type | Not Z-Wave Plus |
Manufacturer ID | 0x013C |
Product Type ID | 0x0001 |
Product ID | 0x0004 |
Frequency Plans | US: 916.00MHz, 908.40MHz |
Categories | All Lighting Devices, On/Off Switches/Devices |
Countries / Regions | United States of America |
Documents |
