| Product Recognition | |
|---|
| Certification Number | ZC10-16065111 |
|---|

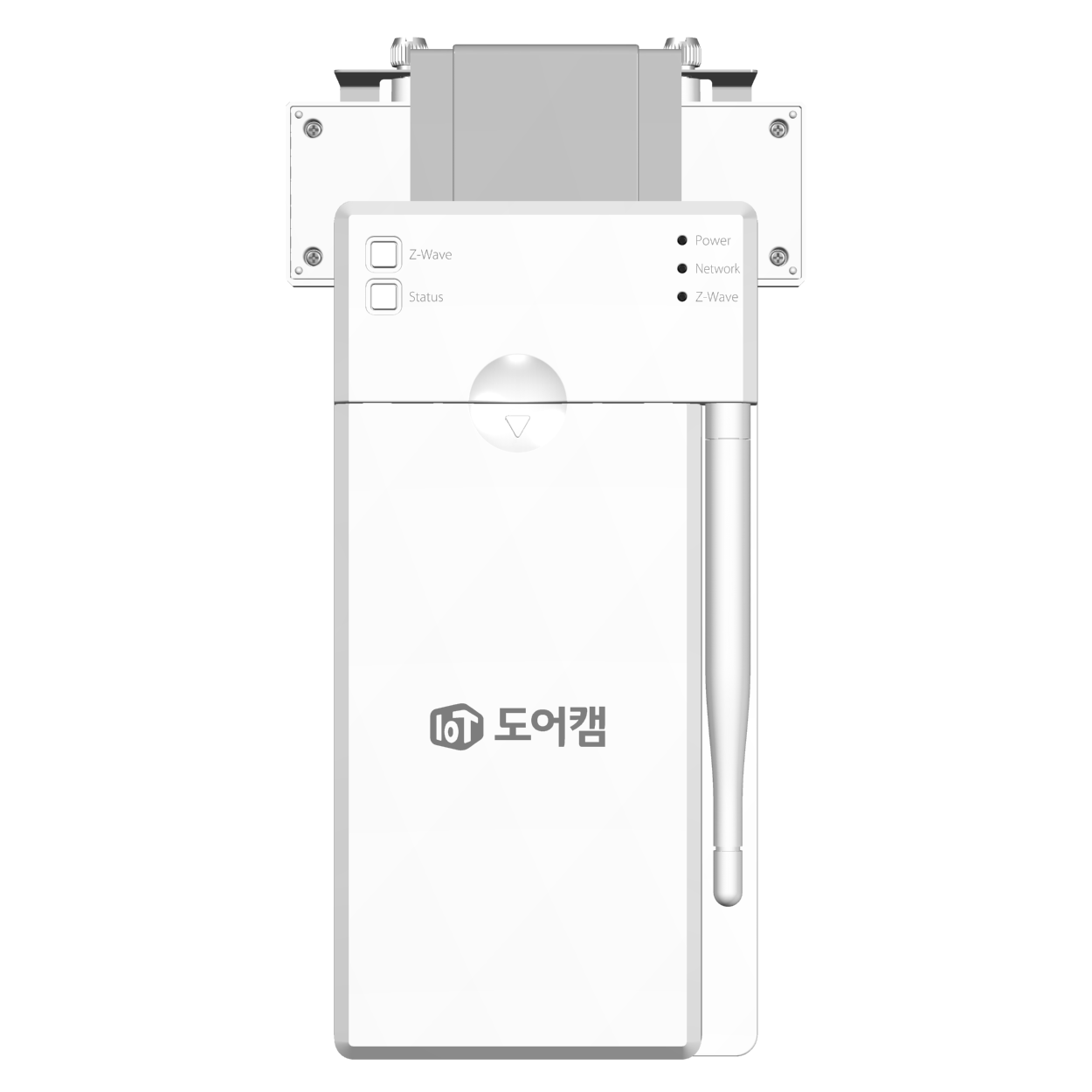

| Name | IoT DoorCam |
|---|
| Short Description | LG Uplus IoT DoorCam streams live video feed to your phone remotely. |
|---|
| Long Description | LG Uplus IoT DoorCam streams live video feed to your phone remotely. The app receives push notifications of different activities and record motion videos when visitors arrive. It also checks the battery life with the app and receives reminders when the battery is low. |
|---|
| Brand | LG Uplus |
|---|
| Product Identifier | DCH-01 |
|---|
| OEM Version | HW: 1 FW: 39.38 |
|---|
| Hardware Platform | ZM5101 |
|---|
| Z-Wave Version | 6.51.08 |
|---|
| Library Type | SLAVE_ENHANCED_232 |
|---|
| Device Type | On/Off Power Switch |
|---|
| Role Type | ROLE_TYPE_OTHER |
|---|
| Manufacturer ID | 0x023D |
|---|
| Product Type ID | 0x0043 |
|---|
| Product ID | 0x0001 |
|---|
| User Icon | 0x0700 |
|---|
| Installer Icon | 0x0700 |
|---|
| Frequency Plans | KR: 920.90MHz, 921.70MHz, 923.10MHz |
|---|
| Categories | Hospitality |
|---|
| Countries / Regions | Republic of Korea |
|---|
| Documents | |
|---|
| Features | | Feature | Values |
|---|
| Battery Quantity | | | Battery Type | | | Color | | | Communications Connections | | | Firmware Updatable | | Value |
|---|
| Updatable by Manufacturer |
| | Neutral Wire Required | | | Outdoor Use | | | Sensors | | Value |
|---|
| Motion/No Motion (Binary) |
|
|
|---|
| Association Groups | | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
| 1 | 2 | 0 | This product's Association Group are used by Life Line of products. |
|
|---|
| Texts | | ID | Description | Value |
|---|
| 2 | Exclusion | This must be done when the DoorCam is in an included status, which means that it is a part of any Z-Wave network; you will know this because the Z-Wave LED will remain off.
After starting the exclusion process on your Z-Wave Controller, please do the following.
a. Press & hold ‘Z-Wave’ button for 5 seconds when DoorCam is inclusion status.
b. When Z-Wave LED blinks with 250ms interval, Release ‘Z-Wave’ button to try exclusion.
c. DoorCam will try exclusion for 30sec.
d. Z-Wave LED will be turned on if exclusion is successful. | | 1 | Inclusion | This must be done when the DoorCam is in an excluded status, which means that it is not a part of any Z-Wave network; you will know this because the Z-Wave LED will remain on.
After starting the inclusion process on your Z-Wave controller, please do the following:
a. Press & hold the Z-Wave inclusion button for 5 seconds.
b. When the Z-Wave LED blinks rapidly, release the Z-Wave inclusion button.
c. The DoorCam will try inclusion for 30 seconds.
d. If inclusion was successful, the Z-Wave LED will turn off. | | 5 | Factory Reset | a. Hold the ‘Z-Wave’ button for 10 seconds.
(Z-Wave LED will blink after 5 seconds with 250ms interval then Z-Wave LED will be turned off after another 5 seconds.)
b. When Z-Wave LED stops blinking after 10 seconds, release Z-Wave button.
c. When factory reset is successful, LED will be on.
Please use this procedure only if the network primary controller is missing or inoperable. |
|
|---|
| Supported Multilevel Sensors | | Multilevel Sensor Type |
|---|
| 0x02 |
|
|---|
| Supports NWI | Yes |
|---|
| Supports Explorer Frames | Yes |
|---|
| Is Flirs | Yes |
|---|
