Product Recognition
Certification Number	ZC10-17055597

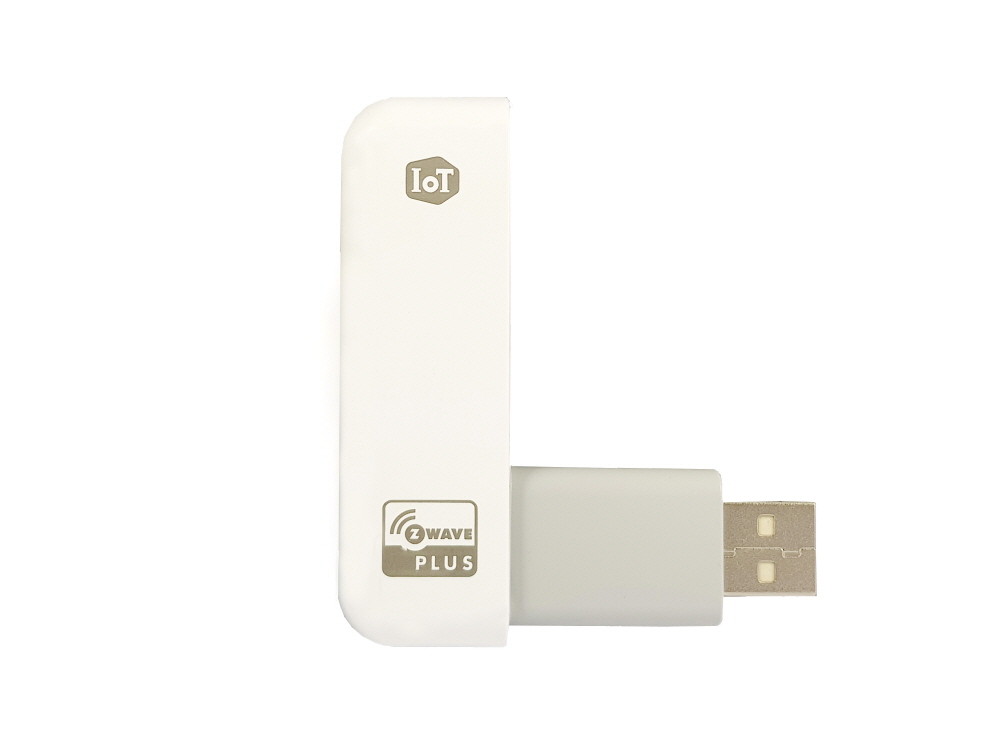

Name	IoT Hub
Short Description	Universal Controller for controlling Notification Sensors, On/Off Switches, Valves, Open/Closed and Door Lock products.
Long Description	LGUplus IoT Hub is universal controller which can control several control groups. This IoT Hub can support full function of notification sensor, On/Off switch, Valve, Open/Closed and Door Lock products made for LGUplus. Other products made as general Z-Wave plus standard can be controlled with limited function. This is USB dongle type connected to LGUplus Home Gateway.
Brand	LG Uplus
Product Identifier	GWG-02
OEM Version	HW: 1 FW: 39.48:39.16
Hardware Platform	ZM5101
Z-Wave Version	6.61.00
Library Type	CONTROLLER_STATIC
Device Type	Central Controller
Role Type	ROLE_TYPE_CONTROLLER_CENTRAL_STATIC
Manufacturer ID	0x018B
Product Type ID	0x0002
Product ID	0x0001
User Icon	0x0100
Installer Icon	0x0100
Frequency Plans	KR: 920.90MHz, 921.70MHz, 923.10MHz
Categories	All Controllers, Gateway Controller
Countries / Regions	Republic of Korea
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_APPLICATION_STATUS Application Status 0x22 1 COMMAND_CLASS_CRC_16_ENCAP CRC16 Encapsulation 0x56 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_NO_OPERATION No Operation 0x00 1 COMMAND_CLASS_USER_CODE User Code 0x63 1 COMMAND_CLASS_DOOR_LOCK_V2 Door Lock V2 0x62 2 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 Multi-Channel Association V3 0x8E 3 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_SWITCH_BINARY Switch Binary 0x25 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_CRC_16_ENCAP CRC16 Encapsulation 0x56 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_NOTIFICATION_V3 Notification V3 0x71 3 COMMAND_CLASS_WAKE_UP_V2 Wake Up V2 0x84 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_METER_V3 Meter V3 0x32 3 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_MULTI_CHANNEL_V4 Multi-Channel V4 0x60 4 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual GWG-02_User Manual_20170516.pdf
Features	Feature Values Color Value White Communications Connections Value USB (Universal Serial Bus) Communications Protocol Value Manufacturer's Open/Documented Protocol Controller Supports Multiple Networks Controller Supports Multiple Z-Wave Interfaces Sensors Value Open/Closed (Binary) Supported Notification Types Value Access Control
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Z-Wave Plus Lifeline
Texts	ID Description Value 23 Controller Inclusion - To Add : Run ‘Inclusion’ in Setting, then click YES of Inclusion PoP UP and then run inclusion of Slave device. 24 Controller Exclusion - To Delete : Run ‘Exclusion’ in Setting, then click YES of Exclusion PoP UP and then run exclusion of Slave device. 3 Learn Mode (adding another controller) - To enter Learn Mode : Run ‘LearnMode’ in Setting, then click YES. 5 Factory Reset - Run ‘ZW_SET_DEFAULT’ in Setting, then click YES of UZB PoP UP - Use this procedure only in the event that the network primary controller is missing or otherwise inoperable. - If this controller is the primary controller for your network, resetting it will result in the nodes in your network being orphaned and it will be necessary after the reset to exclude and re-include all of the nodes in the network. If this controller is being used as a secondary controller in the network, use this procedure to reset this controller only in the event that the network primary controller is missing or otherwise inoperable.
Supports NWI	Yes
Supports Explorer Frames	Yes
