| Product Recognition | |
|---|
| Certification Number | ZC10-15110008 |
|---|

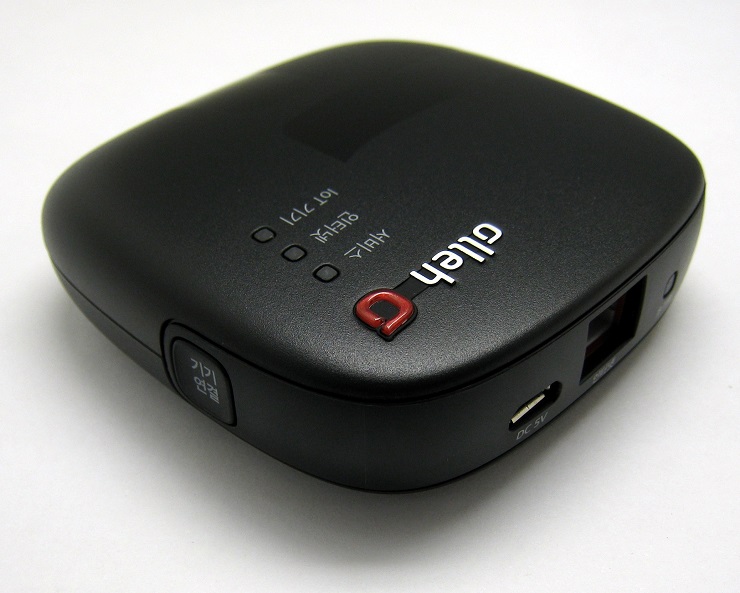

| Name | IoT hub |
|---|
| Short Description | IoT hub is universal controller which can control several home control group devices. |
|---|
| Long Description | IoT hub is universal controller which can control several home control group devices. It can control the gas valve, the digital door-lock, and the door sensor that are supported by the KT. |
|---|
| Brand | Mercury |
|---|
| Product Identifier | MC01-507L |
|---|
| OEM Version | 01 |
|---|
| Hardware Platform | ZM5202 |
|---|
| Z-Wave Version | 6.51.06 |
|---|
| Library Type | CONTROLLER_BRIDGE |
|---|
| Device Type | Central Controller |
|---|
| Role Type | ROLE_TYPE_CONTROLLER_CENTRAL_STATIC |
|---|
| Manufacturer ID | 0x022D |
|---|
| Product Type ID | 0x0100 |
|---|
| Product ID | 0x0001 |
|---|
| Frequency Plans | KR: 920.90MHz, 921.70MHz, 923.10MHz |
|---|
| Categories | All Controllers, Gateway Controller |
|---|
| Countries / Regions | Republic of Korea |
|---|
| Controlled Command Classes | | Identifier | Name | Key | Version |
|---|
| COMMAND_CLASS_ASSOCIATION | Association | 0x85 | 1 | | COMMAND_CLASS_ASSOCIATION_GROUP_INFORMATION | Association Group Information V1 | 0x59 | 0 | | COMMAND_CLASS_DOOR_LOCK | Door Lock | 0x62 | 1 | | COMMAND_CLASS_NO_OPERATION | No Operation | 0x00 | 1 | | COMMAND_CLASS_USER_CODE | User Code | 0x63 | 1 | | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION | Multi-Channel Association V1 | 0x8E | 0 | | COMMAND_CLASS_MULTI_CHANNEL | Multi-Channel V1 | 0x60 | 0 | | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | | COMMAND_CLASS_WAKE_UP | Wake Up | 0x84 | 1 | | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | | COMMAND_CLASS_CRC_16_ENCAP | CRC16 Encapsulation | 0x56 | 1 | | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | | COMMAND_CLASS_ZWAVEPLUS_INFO | Z-Wave Plus Info | 0x5E | 1 | | COMMAND_CLASS_NOTIFICATION | Notification V1 | 0x71 | 0 | | COMMAND_CLASS_MANUFACTURER_SPECIFIC | Manufacturer Specific | 0x72 | 1 | | COMMAND_CLASS_VERSION | Version | 0x86 | 1 |
|
|---|
| Documents | |
|---|
| Association Groups | | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
| 1 | 5 | 0 | Z-Wave Plus Lifeline |
|
|---|
| Texts | | ID | Description | Value |
|---|
| 3 | Learn Mode (adding another controller) | 1. Select Controller Learn Mode Request command in the Emulator.
2. Click Kafka Send button.
3. Enter the parameter value.
4. Click Confirm button. | | 5 | Factory Reset | Press Reset button more than 5 seconds. | | 23 | Controller Inclusion | You can add the device ether hardware button or application.
- Hard ware button : Press the Add/Remove button(Start Z-Wave LED blink)
- Application :
1. Click Add the device button.
2. Click Start button. (Start blink Z-Wave LED)
3. MC01-507L put into inclusion mode and it is added the device. when finish the add device, the Z-Wave LED was green light ON.(Stop blink Z-Wave LED)
4. The home screen of the app shown the added device.
5. Click the device icon. the screen detail view about information of added-device and can control device on this screen. | | 24 | Controller Exclusion | You can remove the device by either hardware button or application.
- Hardware button : Press the Add/Remove button(Start Z-Wave LED blink)
- Application :
1. Click Menu button on the screen detail view.
2. Click Remove the device button.
3. Click Remove button. (Start blink Z-Wave LED)
4. MC01-507L put into exclusion mode and it will remove the device. When finished removing the device, the Z-Wave LED is green light OFF. (Stop blink Z-Wave LED)
5. The home screen of the app shows the removed device. |
|
|---|
| Supports NWI | Yes |
|---|
| Supports Explorer Frames | Yes |
|---|
