Product Recognition
Certification Number	ZC10-16075138

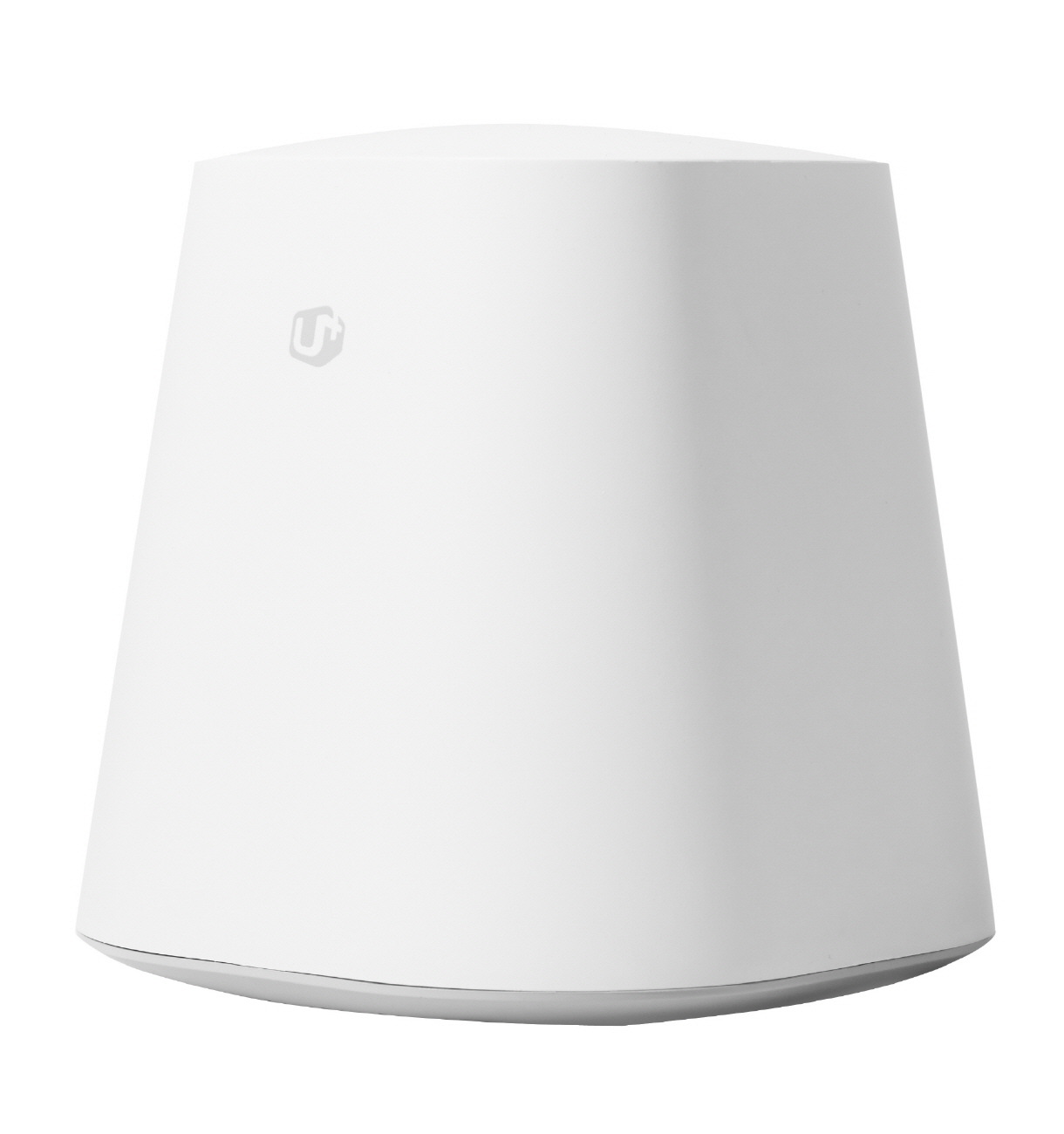

Name	IoT Hub
Short Description	Universal Controller for controlling Notification Sensors,On/Off Switch,Valve, Open/Closed and Door Lock groups.
Long Description	LGUplus IoT Hub is universal controller which can control several control groups. This IoT Hub can support full function of notification sensor, On/Off switch, Valve, Open/Closed and Door Lock products made for LGUplus. Other products made as general Z-Wave plus standard can be controlled with limited function.
Brand	LG Uplus
Product Identifier	GIHG20
OEM Version	HW: 1 FW: 39.22:78.133
Hardware Platform	ZM5101
Z-Wave Version	6.51.08
Library Type	CONTROLLER_STATIC
Device Type	Central Controller
Role Type	ROLE_TYPE_CONTROLLER_CENTRAL_STATIC
Manufacturer ID	0x018B
Product Type ID	0x0003
Product ID	0x0001
User Icon	0x0100
Installer Icon	0x0100
Frequency Plans	KR: 920.90MHz, 921.70MHz, 923.10MHz
Categories	All Controllers, Gateway Controller
Countries / Regions	Republic of Korea
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_ASSOCIATION_GROUP_INFORMATION Association Group Information V1 0x59 0 COMMAND_CLASS_NO_OPERATION No Operation 0x00 1 COMMAND_CLASS_USER_CODE User Code 0x63 1 COMMAND_CLASS_DOOR_LOCK_V2 Door Lock V2 0x62 2 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 Multi-Channel Association V3 0x8E 3 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_SWITCH_BINARY Switch Binary 0x25 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_CRC_16_ENCAP CRC16 Encapsulation 0x56 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_NOTIFICATION_V3 Notification V3 0x71 3 COMMAND_CLASS_WAKE_UP_V2 Wake Up V2 0x84 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_METER_V3 Meter V3 0x32 3 COMMAND_CLASS_MULTI_CHANNEL_V4 Multi-Channel V4 0x60 4 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual IoT 허브 설명서_20160629_review.pdf
Features	Feature Values Communications Protocol Value Z-Wave Serial API Communications Connections Value Ethernet (Wired) Ethernet (Wireless/WiFi) USB (Universal Serial Bus)
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Z-Wave Plus Lifeline
Texts	ID Description Value 23 Controller Inclusion - To Add : Run ‘Inclusion’ in Setting, then click YES of Inclusion PoP UP and then run inclusion of Slave device. 24 Controller Exclusion - To Remove : Run ‘Exclusion’ in Setting, then click YES of Exclusion PoP UP and then run exclusion of Slave device. 3 Learn Mode (adding another controller) - To enter Learn Mode : Run ‘LearnMode’ in Setting, then click YES. 5 Factory Reset - Run ‘ZW_SET_DEFAULT’ in Setting, then click YES of UZB PoP UP - Use this procedure only in the event that the network primary controller is missing or otherwise inoperable.
Supports NWI	Yes
Supports Explorer Frames	Yes
