Product Recognition | |
|---|
Certification Number | ZC10-18025985 |
|---|

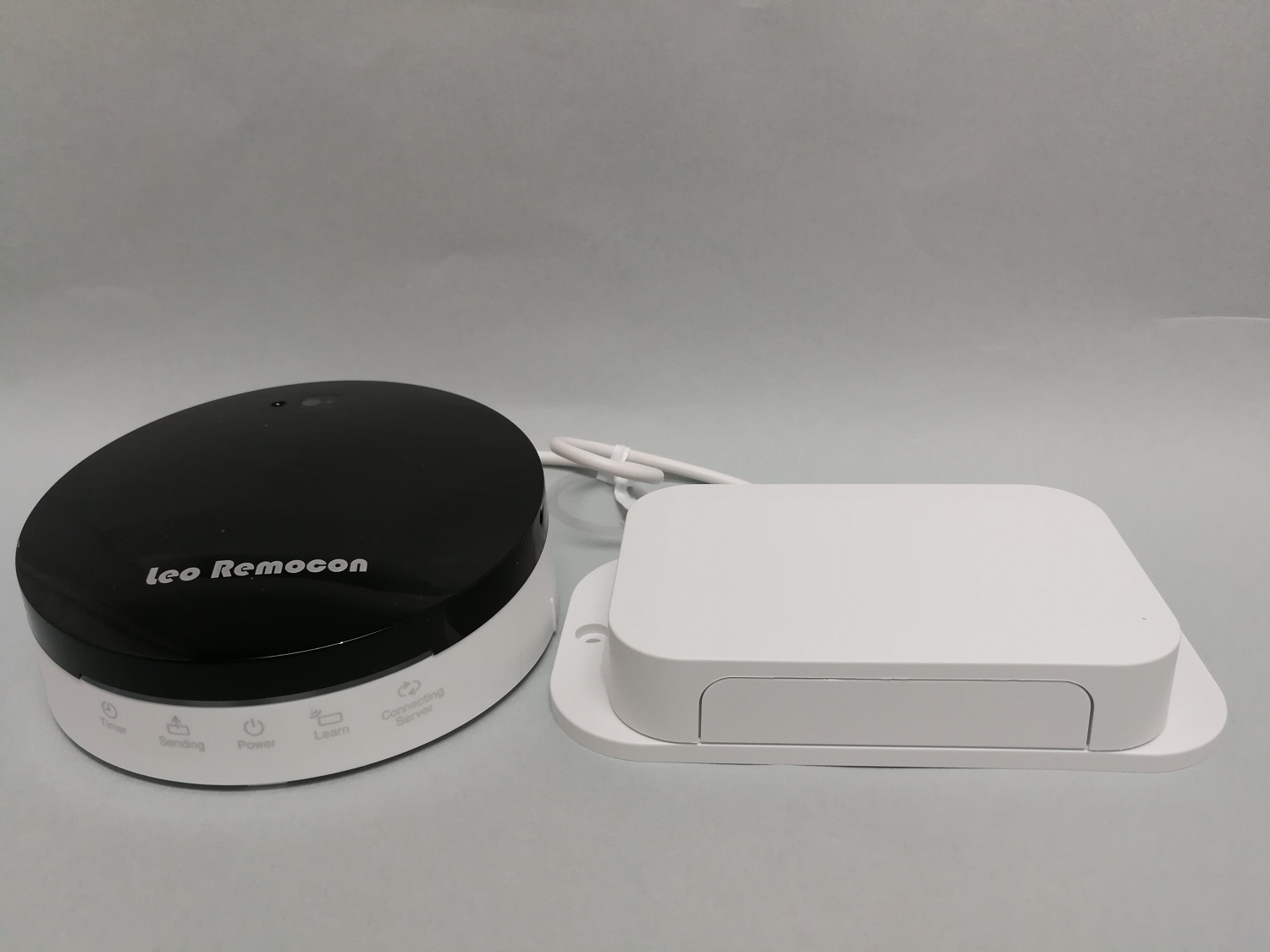

Name | iRemocon Wi-Fi |
|---|
Short Description | iRemocon is a one-stop solution for a number of needs on home automation, HEMS and Smart Lock. |
|---|
Long Description | "iRemocon" is an universal remote controller with IR signal learning functionality for a wide variety of home appliances from Smartphone APP.
iRemocon is a turn key solution to bring home automation at ease for consumers, and it is widely adopted as standard equipment of properties managed by apartment developers and custom-home builder, not only for consumers, but also Homebuilding Industry.
iRemocon is also capable of working with HEMS, e.g. CT sensor or smart meter to retrieve power consumption, JEM-A controlled floor heating and ECHONET Lite capable appliances like bath water heater.
iRemocon is one-stop solution for a number of needs on home automation, HEMS and Smart Lock. |
|---|
Brand | Glamo Inc. |
|---|
Product Identifier | IRM-03WLA |
|---|
OEM Version | HW: 1 FW: 5.34:02.61:01.00 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.71.01 |
|---|
Library Type | CONTROLLER_BRIDGE |
|---|
Device Type | Central Controller |
|---|
Role Type | ROLE_TYPE_CONTROLLER_CENTRAL_STATIC |
|---|
Manufacturer ID | 0x034B |
|---|
Product Type ID | 0x0001 |
|---|
Product ID | 0x0001 |
|---|
User Icon | 0x0100 |
|---|
Installer Icon | 0x0100 |
|---|
Frequency Plans | JP: 922.50MHz, 923.90MHz, 926.30MHz |
|---|
Categories | All Controllers, Gateway Controller |
|---|
Countries / Regions | Japan |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_INCLUSION_CONTROLLER | Inclusion Controller | 0x74 | 1 | COMMAND_CLASS_CRC_16_ENCAP | CRC16 Encapsulation | 0x56 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_ZIP_GATEWAY | Z/IP Gateway | 0x5F | 1 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_USER_CODE | User Code | 0x63 | 1 | COMMAND_CLASS_DOOR_LOCK_V2 | Door Lock V2 | 0x62 | 2 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_TIME_PARAMETERS | Time Parameters | 0x8B | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_INDICATOR | Indicator | 0x87 | 1 | COMMAND_CLASS_CRC_16_ENCAP | CRC16 Encapsulation | 0x56 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_MULTI_CHANNEL_V4 | Multi-Channel V4 | 0x60 | 4 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_CONFIGURATION_V2 | Configuration V2 | 0x70 | 2 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED, S2_ACCESS_CONTROL |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Gateway Has Preferred Partners | | Supported Notification Types | Value |
|---|
Access Control | System | Emergency Alarm |
| Communications Protocol | | Communications Connections | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 1 | 0 | This group is used to inform the member that it had been reset & leaving the network.
|
|
|---|
Texts | ID | Description | Value |
|---|
3 | Learn Mode (adding another controller) | 1. Run network join from Primary controller
2. Make sure iRemocon SYNC-LED blinks slowly.
3. Click “Learn mode”
4. Input DSK 5-digit on the primary controller (e.g. PC Controller) dialog and complete inclusion. | 5 | Factory Reset | 1. Click “Reset”
2. Once the lock device is removed, iRemocon “SYNC-LED” blinks slowly.
Note: Please use this procedure only when the network primary controller is missing or otherwise inoperable. | 23 | Controller Inclusion | 1. Set DSK 5-digit in the DSK text box.
2. Click “Add”, then SYNC-LED (at the bottom of the iRemocon) blinks fast.
3. Carry out the lock device inclusion action.
4. Once the device is joined to the network properly, iRemocon “SYNC-LED” lighting up. | 24 | Controller Exclusion | 1. Click “Remove”, then SYNC-LED (at the bottom of the iRemocon) blinks fast.
2. Carry out device exclusion action.
3. Once the device is removed, iRemocon “SYNC-LED” blinks slowly. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
