Product Recognition

Certification Number

ZC10-20106987

Name

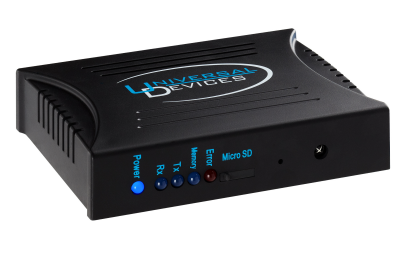

ISY-994 Zigbee/Z-Wave/Pro

Short Description

Create, maintain, and automate your Z-Wave network with the ISY-994 ZW+/ZS Pro together with Zigbee

Long Description

The ISY-994ZW controller brings Z-Wave network management, automation including simple logic based on device status and controls, and integration with Zigbee and other protocols and controls together in one cohesive environment.

Brand

Universal Devices

Product Identifier

ISY-994 ZW+/ZS Pro

Product Line

ISY

OEM Version

HW: 3 FW: 6.09:05.03

Hardware Platform

ZM5202

Z-Wave Version

6.82.01

Library Type

CONTROLLER_STATIC

Device Type

Central Controller

Role Type

ROLE_TYPE_CONTROLLER_CENTRAL_STATIC

Manufacturer ID

0x0193

Product Type ID

0x0001

Product ID

0x000A

User Icon

0x0100

Installer Icon

0x0100

Frequency Plans

US: 916.00MHz, 908.40MHz

Categories

All Controllers, Gateway Controller, Computer Controller Interfaces

Countries / Regions

United States of America

Supported Command Classes

Controlled Command Classes

Documents

Features

Association Groups

Texts

ID	Description	Value
23	Controller Classic Inclusion	Set Z-Wave \| Options \| Use Network Wide Search when adding or removing Z-Wave devices (NWI/NWE) to enable or disable NWI/NWE when adding or removing devices. 1. Select Z-Wave \| Add a Z-Wave Device and wait for a popup window to appear. - If the popup window does not appear, Select Z-Wave \| Advanced \| Stop Adding or Removing a Z-Wave Device then try again. 2. Put the Z-Wave device you are adding into learn Mode. Refer to the user guide for your product on how to do this. In many cases this just requires you to press a button on the device. 3. The ISY will begin adding the device (this may occur a few seconds after you put the device into learn mode). - The popup window will go away and you will see your device added to the tree. Note: To add a device, it must not already be in a Z-Wave network. Therefore, if you are having trouble adding a device try removing it first.
24	Controller Classic Exclusion	1. Select Z-Wave \| Remove a Z-Wave Device and wait for a popup window to appear. - If the popup window does not appear, Select Z-Wave \| Advanced \| Stop Adding or Removing a Z-Wave Device then try again. 2. Put the Z-Wave device into learn Mode. Refer to the user guide for your product on how to do this. In many cases this just requires you to press a button on the device. 3. The ISY will remove the device (this may occur a few seconds after you put the device intolearn mode). - The popup window will go away and the nodes for the device will be removed from the tree.
3	Controller Learn Mode	1. Select Z-Wave \| Learn Mode and wait for a popup window to appear. - If the popup window does not appear, Select Z-Wave \| Advanced \| Stop Adding or Removing a Z-Wave Device then try again. 2. The ISY will now wait to receive information from another Z-Wave device performing an action such as Add, Remove, etc. - The popup window will go away when the operation is complete. - In some cases this may take 30 to 60 seconds or longer to complete. Note: Learn Mode is only available if the Z-Wave network is empty or the ISY is not the SIS for the Z-Wave network.
10	Controller Replication	1. Select Z-Wave \| Add a Z-Wave Device and wait for a popup window to appear. - If the popup window does not appear, Select Z-Wave \| Advanced \| Stop Adding or Removing a Z-Wave Device then try again. 2. Put the other controller into Learn Mode. Refer to the user guide for your product on how to do this. 3. The ISY will begin updating the other controller
5	Factory Reset Procedure	When the Z-Wave dongle in the ISY is factory reset it is also given a new Home Id and new S0 security keys are generated. To factory reset the Z-Wave dongle, select Z-Wave \| Advanced \| Factory Reset Z-Wave Dongle If this controller is the primary controller for your network, resetting it will result in the nodes in your network being orphaned and it will be necessary after the reset to exclude and re-include all of the nodes in the network. If this controller is being used as a secondary controller in the network, use this procedure to reset this controller only in the event that the network primary controller is missing or otherwise inoperable.

Supported / Controlled Meter Types

Supports NWI

Yes

Supports Explorer Frames

Yes

Radio Range Z-Wave (m)
