Product Recognition | |
|---|
Certification Number | ZC12-21040221 |
|---|

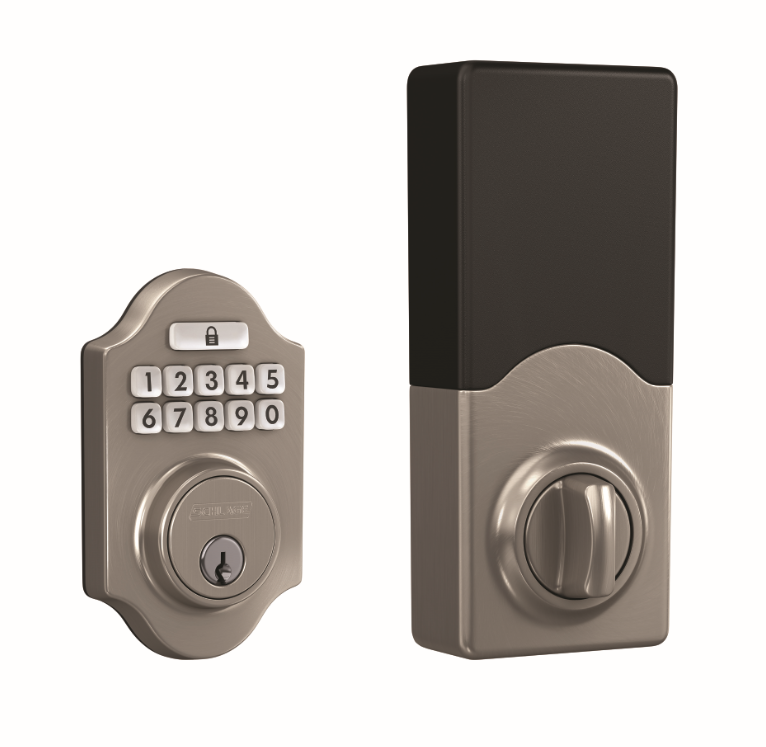

Name | J-Series by Schlage Z-Wave Keypad Deadbolt |
|---|
Short Description | The J-Series by Schlage Z-Wave Deadbolt combines advanced features and compatibility with home automation or security systems, so you can control your lock from anywhere using your smartphone. |
|---|
Long Description | The J-Series by Schlage Z-Wave Deadbolt combines advanced features and compatibility with your home automation or security system, allowing you to control your lock from anywhere and freeing you from the hassles of lost keys, getting locked out, or hiding a spare for friends and family. The lock comes preprogrammed with two access codes and can hold up to 30 unique codes for family members and trusted friends.
The J-Series by Schlage Z-Wave Deadbolt is battery-powered with a low battery warning that gives you weeks of advanced notice before it runs out. With guaranteed fit on standard doors, it’s easy for homeowners to install in minutes with just a screwdriver. The touchscreen continues to work in the event of a power outage, so you don’t have to worry about getting locked out – plus, a back-up key is included with the lock for peace of mind.
The J-Series by Schlage Z-Wave Deadbolt incorporates Z-Wave Plus S2 technology, an enhanced security protocol that features an additional layer of AES encryption of wireless signals. The Z-Wave technology allows you to integrate your exterior door locks with other Z-Wave smart home devices, such as cameras, motion detectors, lights and thermostats, bringing the safety, simplicity and style of Schlage to your smart home. |
|---|
Brand | Schlage |
|---|
Product Identifier | JBE109 |
|---|
Product Line | J-Series |
|---|
OEM Version | HW: 3 FW: 1.09:01.13 |
|---|
Hardware Platform | ZGM130 |
|---|
Z-Wave Version | 7.11.1 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Lock |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_LISTENING |
|---|
Manufacturer ID | 0x003B |
|---|
Product Type ID | 0x0004 |
|---|
Product ID | 0x2109 |
|---|
User Icon | 0x0300 |
|---|
Installer Icon | 0x0300 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | Locks |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_CONFIGURATION_V4 | Configuration V4 | 0x70 | 4 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_USER_CODE | User Code | 0x63 | 1 | COMMAND_CLASS_DOOR_LOCK_V4 | Door Lock V4 | | 0 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_INDICATOR_V3 | Indicator V3 | 0x87 | 3 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_APPLICATION_STATUS | Application Status | 0x22 | 1 | COMMAND_CLASS_TIME | Time | 0x8A | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 | Firmware Update Meta-Data V5 | 0x7A | 5 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 | Association Group Information V3 | 0x59 | 3 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC | Manufacturer Specific | 0x72 | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_SCHEDULE_ENTRY_LOCK_V3 | Schedule Entry Lock V3 | 0x4E | 3 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_TIME | Time | 0x8A | 1 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 |
|
|---|
S2 Classes | S2_ACCESS_CONTROL |
|---|
Documents | Category | Description | File |
|---|
Manual_English | Product Manual in English | | Manual_Primary_Lang | Product Manual | |
|
|---|
Features | Feature | Values |
|---|
Door Lock Type | | Battery Type | | Battery Quantity | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Description |
|---|
1 | 2 | 0 | Lifeline | Z-Wave Lifeline |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Read-only | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
6 | USER_SLOT_BIT_FIELD | GET USER SLOT OCCUPIED | 2 | Yes | 4 | 0 | 1073741823 | 0 | From | To | Description |
|---|
1 | 1 | User Slots 8 – 1 (MSB – LSB) 8,7,6,5,4,3,2,1 | 2 | 2 | User Slots 16 – 9 (MSB – LSB) 16,15,14,13,12,11,10,9 | 3 | 3 | User Slots 24 – 17 (MSB – LSB) 24,23,22,21,20,19,18,17 | 4 | 4 | User Slots 30 – 25 (MSB – LSB) X,X,30,29,28,27,26,25 |
| 3 | BEEPER | CONFIG ENABLE SND FF ELSE 00 | 2 | | 1 | 0 | 255 | 255 | From | To | Description |
|---|
0 | 0 | Disable Beeper | 255 | 255 | Enable Beeper |
| 4 | VACATION_MODE | CONFIG ENABLE SND FF ELSE 00 | 2 | | 1 | 0 | 255 | 0 | From | To | Description |
|---|
0 | 0 | Disable Vacation Mode | 255 | 255 | Enable Vacation Mode |
| 5 | LOCK_AND_LEAVE | CONFIG ENABLE SND FF ELSE 00 | 2 | | 1 | 0 | 255 | 255 | From | To | Description |
|---|
255 | 255 | Enable Lock & Leave | 0 | 0 | Disable Lock & Leave |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Classic Inclusion | One-button Add lock to Z-Wave Network (Inclusion) 1. Place your home automation system or panel into the “Add” or Inclusion Mode (Refer to the respective documentation for that specific home automation system or panel device for details). 2. Remove the battery cover of the deadbolt. 3. Press then release the button on the PCB. 4. An LED will flash amber indicating the “Add” or Inclusion process is in progress. • If the Security Scheme is Security 2 (S2), verify the DSK of the lock at the Z-Wave Controller. The PIN Code portion of the Z-Wave DSK will be needed. 5. When a green LED turns ON, the “Add” or Inclusion has completed successfully. 6. If a red LED turns ON, try repeating steps 1-3 Interactive Instruction for Add https://instructions.allegion.com/instr/86/2543 | 2 | Classic Exclusion | One-button Remove lock from Z-Wave Network (Exclusion) 1. Place your home automation system or panel into the “Remove” or Exclusion Mode (Refer to the respective documentation for that specific home automation system or panel device for details). 2. Remove the battery cover of the deadbolt. 3. Press then release the button on the PCB. 4. An LED will flash amber indicating the “Remove” or Exclusion process is in progress. 5. When a green LED flashes 3 times, the “Remove” or Exclusion process is completed successfully. 6. If a red LED turns ON, try repeating steps 1-3 Interactive Instruction for Remove https://instructions.allegion.com/instr/86/258 | 8 | Where to find S2 DSK on product | User Guide Page 2 | 5 | Factory Reset Procedure | 1. Press and hold the enrollment button. The led will light solid amber. 2. After about 8 seconds of holding the button, the amber light will turn off. Release the button. Successful FDR is indicated by 3 long green blinks and 3 long beeps. 3. You must enter a valid user code. Lock will enter auto-handing routine, locking and unlocking several times. Auto-handing is complete when lock movement stops. | 4 | Wake-Up Procedure | N/A |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Access Control | Manual lock operation | Access Control | Manual unlock operation | Access Control | RF lock operation | Access Control | RF unlock operation | Access Control | Keypad lock operation | Access Control | Keypad unlock operation | Access Control | Auto lock locked operation | Access Control | Lock state: Lock jammed | Access Control | Keypad state: Keypad temporary disabled | Access Control | New program code entered : unique code for lock configuration | Power Management | Battery maintenance status: Replace battery soon | Power Management | Battery maintenance status: Replace battery now |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Is Flirs | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
