Product Recognition
Certification Number	ZC10-15060025

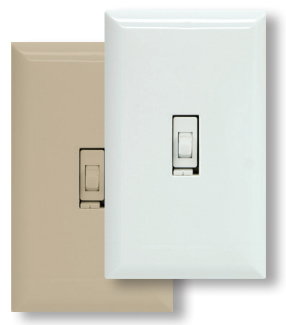

Name	Jasco In-Wall Smart Dimmer (White Toggle)
Short Description	Wirelessly control, schedule or dim lights from anywhere. Works with dimmable LED, CFL, halogen and incandescent bulbs
Long Description	Transform any home into a smart home with the Jasco Z-Wave Smart Toggle Dimmer. The in-wall Dimmer can easily replaces any standard in-wall switch remotely controls a light in your home. Your home will be equipped with ultimate flexibility with the Jasco Z-Wave Smart Toggle Dimmer, capable of being used by itself or with up to four add-on switches. Screw terminal installation provides improved space efficiency when replacing existing switches. The Jasco Z-Wave Smart Toggle Dimmer is compatible with any Z-Wave certified gateway, providing access to many popular home automation systems. Take control of your home lighting with Jasco Z-Wave Smart Lighting Controls! Z-Wave is the world’s largest ecosystem of interoperable smart home products. Z-Wave lighting controls provide an easy-to-install and affordable system to control lighting and small appliances in your home. Add GE Z-Wave lighting controls to a Z-Wave certified gateway to access and control your home from anywhere in the world using your smartphone, tablet or computer as a home automation command center. Never worry if you accidentally left the lights on because you can turn them off remotely or program your lights to go on/off at specific times. Create customized lighting scenes for any occasion such as a “go to sleep” scene or a “movie night” scene. Give the illusion that someone is home by programming the lights to turn on/off while you are away—perfect for deterring crime and adding additional security!"
Brand	Jasco Products Company
Product Identifier	14322
OEM Version	HW: 255
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	SLAVE_ENHANCED_232
Device Type	Light Dimmer Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x0063
Product Type ID	0x4944
Product ID	0x3137
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	All Lighting Devices, Dimming Lighting Devices
Countries / Regions	United States of America
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual 14322_14323-1 QSG.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 1 0 Z-Wave Plus Lifeline
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 11 Dim Rate Adjustments Dim Rate Adjustments When receiving an All-On or All-Off command 0 1 0 0 1 From To Description 1 99 number of steps or levels 9 Dim Rate Adjustments Dim Rate Adjustments When receiving a Z-Wave Dim Command 0 1 0 0 1 From To Description 1 99 number of steps or levels 8 Dim Rate Adjustment Dim Rate Adjustments When receiving a Z-Wave Dim Command For values over 127, consult your controller's user guide; some controllers may require values above 127 to be entered using the 2's complement value or using hexadecimal notation 0 1 0 0 3 From To Description 1 255 timing of the steps 4 Default Default 0 1 0 0 0 From To Description 0 0 Default 4 Invert Switch If the switch is accidentally installed upside down with “On” at the bottom and “Off” at the top, the default On/Off rocker settings can be reversed by changing parameter 4’s value to “1”. 0 1 0 0 0 From To Description 1 1 Invert Switch 7 Dim Rate Adjustment Dim Rate Adjustments When receiving a Z-Wave Dim Command 0 1 0 0 1 From To Description 1 99 Number of steps or levels 10 Dim Rate Adjustments Dim Rate Adjustments When manually controlling dimming For values over 127, consult your controller's user guide; some controllers may require values above 127 to be entered using the 2's complement value or using hexadecimal notation 0 1 0 0 3 From To Description 1 255 timing of the steps
Texts	ID Description Value 2 Exclusion To exclude and reset the device 1. Follow the instructions for your Z-wave certified controller to exclude a device from the Z-wave network. 2. Once the controller is ready to Exclude your device, press up and release on the toggle to exclude it from the network. 1 Inclusion Adding your device to a Z-wave network: 1. Follow the instructions for your Z-wave certified controller to include a device to the Z-wave network. 2. Once the controller is ready to include your device, press up and release on the toggle to include it in the network. 3. Once your controller has confirmed that the device has been included, refresh the Z-wave network to optimize performance. Please reference the controller’s manual for instructions. Now you have complete control to turn your fixture ON/OFF or dim according to groups, scenes, schedules and interactive automations programmed by your controller. If your Z-wave certified controller features Remote Access, you can now control your fixture from your mobile devices. 5 Factory Reset To return your switch to factory defaults: 1. Quickly press ON (Up) button three (3) times then immediately press the OFF (Down) button three (3) times. Note: This should only be used in the event your network’s primary controller is missing or otherwise inoperable.
Supports NWI	Yes
Supports Explorer Frames	Yes
