Certification Number | ZC12-21060235 |
|---|

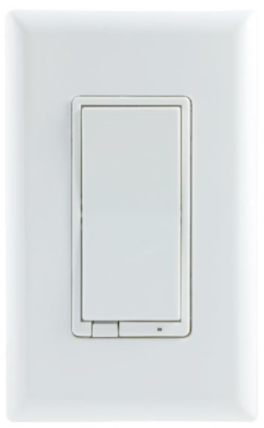

Name | Jasco Z-Wave Plus In-Wall Smart Dimmer, No Neutral, LED-CFL, White and Light Almond Paddles, 700S |
|---|
Short Description | In-Wall No-Neutral Smart Dimmer with QuickFit and SimpleWire enhancements. No neutral wire required for installation! All of this is coupled with Z-Wave S2 and SmartStart allows for effortless installation while being safer than ever. |
|---|
Long Description | Transform any home into a smart home with the Enbrighten Z-Wave Smart No-neutral Dimmer. The In-Wall Smart No-neutral Dimmer can easily replace any standard in-wall switch (No-neutral required) and remotely controls a light in your home. Your home will be equipped with ultimate flexibility with the Enbrighten Z-Wave Smart No-neutral Dimmer, capable of being used by itself or with up to four add-on switches. Screw terminal installation provides improved space efficiency when replacing existing switches and the integrated LED indicator light allows you to easily locate the switch in a dark room. The Enbrighten Z-Wave In-Wall Smart No-neutral Dimmer is compatible with any Z-Wave certified gateway, providing access to many popular home automation systems. Take control of your home lighting with Enbrighten Z-Wave Smart Lighting Controls! |
|---|
Brand | JascoPro |
|---|
Product Identifier | 56590/56592/ZW3012 |
|---|
Product Line | Wireless Lighting Controls |
|---|
OEM Version | HW: 1 FW: 7.06 |
|---|
Hardware Platform | ZGM130 |
|---|
Z-Wave Version | 7.13.6 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Multilevel Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0063 |
|---|
Product Type ID | 0x4944 |
|---|
Product ID | 0x3334 |
|---|
User Icon | 0x0600 |
|---|
Installer Icon | 0x0604 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | All Lighting Devices, Dimming Lighting Devices |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_CONFIGURATION_V4 | Configuration V4 | 0x70 | 4 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_INDICATOR_V3 | Indicator V3 | 0x87 | 3 | COMMAND_CLASS_APPLICATION_STATUS | Application Status | 0x22 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 | Firmware Update Meta-Data V5 | 0x7A | 5 | COMMAND_CLASS_SWITCH_MULTILEVEL_V4 | Switch Multilevel V4 | 0x26 | 4 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 | Association Group Information V3 | 0x59 | 3 | COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC | Manufacturer Specific | 0x72 | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_CENTRAL_SCENE_V3 | Central Scene V3 | 0x5B | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product Manual | |
|
|---|
Features | Feature | Values |
|---|
Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Switch Load Capacity Current | | Switch Type | Value |
|---|
Decorator Paddle Push with Indicator |
| Z-Wave Scene Type | Value |
|---|
Scene & Central Scene |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Description |
|---|
2 | 5 | 0 | Single Press | Association Group 2 supports Basic Set and is controlled with the local load | 1 | 5 | 0 | Lifeline | Association Group 1 supports Lifeline, Multi-level Switch report | 3 | 5 | 0 | Double Press | Association Group 3 supports Basic Set and is controlled by double pressing the ON/OFF button |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
4 | Invert Switch | Reverse the default On/Off rocker setting | 1 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 0 | Disabled- Normal Operation | 1 | 1 | Enabled- Invert Switch |
| 6 | Dim up/down rate | Enable/Disable slow dim rate | 1 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 0 | Disable- Normal Operation | 1 | 1 | Enabled Slow Dim Rate |
| 84 | Reset factory default | Reset Switch to Factory Defaults | 1 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
1 | 1 | Enabled Reset | 0 | 0 | Disable- Normal Operation |
| 31 | Maximum Dim Threshold | Maximum Dim Threshold | 1 | 1 | 1 | 99 | 99 | From | To | Description |
|---|
1 | 99 | Set the maximum dim threshold when manually or remotely controlled |
| 3 | LED Light | Set the LED light status | 1 | 1 | 0 | 3 | 0 | From | To | Description |
|---|
0 | 0 | LED On when load is On, LED Off when load is Off (Default) | 1 | 1 | LED ON when load is Off, LED Off when Load is On | 2 | 2 | LED always ON | 3 | 3 | LED always OFF |
|
|
|---|
Texts | ID | Description | Value |
|---|
8 | Where to find S2 DSK on product | If prompted by the controller to enter the S2 security code, refer to the QR code/security number on the side of the box or the QR code label on the product (see Figure 1). | 1 | Classic Inclusion | 1. Follow the instructions for your Z-Wave certified controller to add a device to the Z-Wave network.2. Once the controller is ready to add your device, press and release the top or bottom of the smart dimmer (rocker). | 2 | Classic Exclusion | 1. Follow the instructions for your Z-Wave certified controller to remove a device from the Z-Wave network.2. Once the controller is ready to remove your device, press and release the top or bottom of the smart dimmer (rocker). | 5 | Factory Reset Procedure | 1. Quickly press ON (top) button three times, then immediately press the OFF (bottom) button three times. The LED will flash ON/OFF five times when completed successfully. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
