Product Recognition
Certification Number	ZC14-22020060

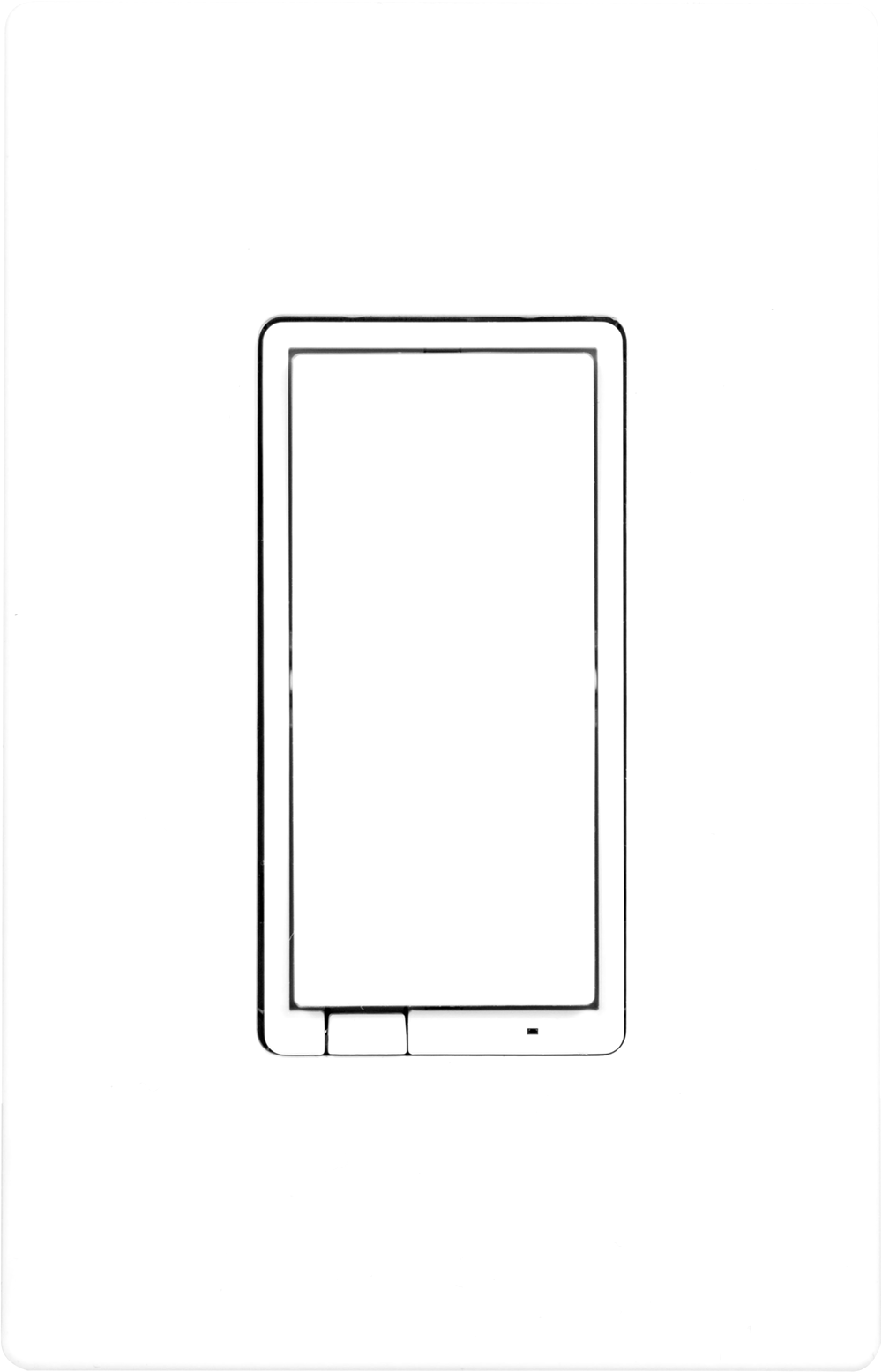

Name	JascoPro Series Z-Wave Plus™ In-Wall Smart Dimmer, White and Light Almond Paddles, 700S
Short Description	Experience the latest generation of Z-Wave™ smart controls for in-wall configurations with paddle-style dimmers to accommodate any home.
Long Description	Set the scene with the JascoPro Series Z-Wave™ In-Wall Smart Dimmer with QuickFit™ and SimpleWire™. When paired with a compatible hub, the hardwired smart dimmer operates wall, ceiling and accent lighting through individual commands and programmed settings. Wirelessly control and schedule indoor or outdoor fixtures for effortless management of your home. Your automation possibilities are seemingly infinite when connected to hubs from Ring, Wink, SmartThings, HomeSeer, Vera, American Standard and more.
Brand	JascoPro Series
Product Identifier	59383/ZWA3016
Product Line	Wireless Lighting Controls
OEM Version	HW: 01 FW: 01.21
Hardware Platform	ZGM130S037HGN2 / ZGM130S037HGN1
Z-Wave Version	7.15.4
Library Type	END_NODE_ENHANCED_232
Device Type	Multilevel Switch DT
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x0063
Product Type ID	0x4944
Product ID	0x3434
User Icon	0x0600
Installer Icon	0x0604
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	All Lighting Devices, Dimming Lighting Devices
Countries / Regions	Canada, Mexico, United States of America
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC_V2 Basic V2 0x20 2 COMMAND_CLASS_CENTRAL_SCENE_V3 Central Scene V3 0x5B 3 COMMAND_CLASS_CONFIGURATION_V4 Configuration V4 0x70 4 COMMAND_CLASS_SWITCH_MULTILEVEL_V4 Multilevel Switch V4 0x26 4 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 Association Group Information (AGI) V3 0x59 3 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 Firmware Update Meta Data V5 0x7A 5 COMMAND_CLASS_INDICATOR_V3 Indicator V3 0x87 3 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 Multi Channel Association V3 0x8E 3 COMMAND_CLASS_VERSION_V3 Version V3 0x86 3 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_SECURITY_2 Security 2 0x9F 1 COMMAND_CLASS_SUPERVISION Supervision 0x6C 1 COMMAND_CLASS_TRANSPORT_SERVICE_V2 Transport Service V2 0x55 2 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1
S2 Classes	S2_AUTHENTICATED, S2_UNAUTHENTICATED
Documents	Category File Manual_English 59383parameterscommandclasses.pdf
Features	Feature Values Firmware Updatable Value Updatable by Consumer by RF Z-Wave Scene Type Value Scene & Central Scene Neutral Wire Required Value 1 Switch Type Value Decorator Paddle Rocker
Association Groups	Group Number Maximum Nodes Supported End Point ID Group Name Profile 1 5 0 Lifeline 0x0001 2 5 0 Single Press 0x2001 3 5 0 Double Press 0x2002
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value 3 LED Light Mode Set the LED Light Mode 0 1 0 0 0x00 4 Invert Switch Reverse the default ON/OFF Paddle switch setting 0 1 0 0 0x00 5 3-Way Type Configure between standard 3-Way Switch or Add-On Switch is being used 0 1 0 0 0x00 31 Maximum Brightness Threhold Maximum Brightness Threhold 0 1 0 0 0x63 84 Reset Factory Default Reset Switch to Factory Defaults 0 1 0 0 0x00
Texts	ID Description Value 8 Where to find S2 DSK on product Page 1, box 4 1 Classic Inclusion Adding your device to a Z-Wave network: 1. Follow the instructions for your Z-Wave certified controller to add a device to the Z-Wave network. 2. Once the controller is ready to add your device, press the top or bottom of the wireless smart dimmer. 2 Classic Exclusion To remove and reset the device: 1. Follow the instructions for your Z-Wave certified controller to remove a device from the Z-Wave network. 2. Once the controller is ready to remove your device, press the top or bottom of the wireless smart dimmer. 5 Factory Reset Procedure To return your switch to factory defaults: Pull the airgap switch. Press and hold the bottom button, push the airgap switch in and continue holding the bottom button for 10 seconds. The LED will flash once each of the 8 colors then stop. NOTE: This should only be used if your network’s primary controller is missing or otherwise inoperable. NOTE: SmartStart enabled products can be added into a Z-Wave network by scanning the QR code on the product with a controller providing SmartStart inclusion. No further action is required and the SmartStart product will be added automatically within 10 minutes of being switched on in the network vicinity.
Supports NWI	Yes
Supports Explorer Frames	Yes
Supports SmartStart	Yes
