Product Recognition | |
|---|
Certification Number | ZC10-19076671 |
|---|

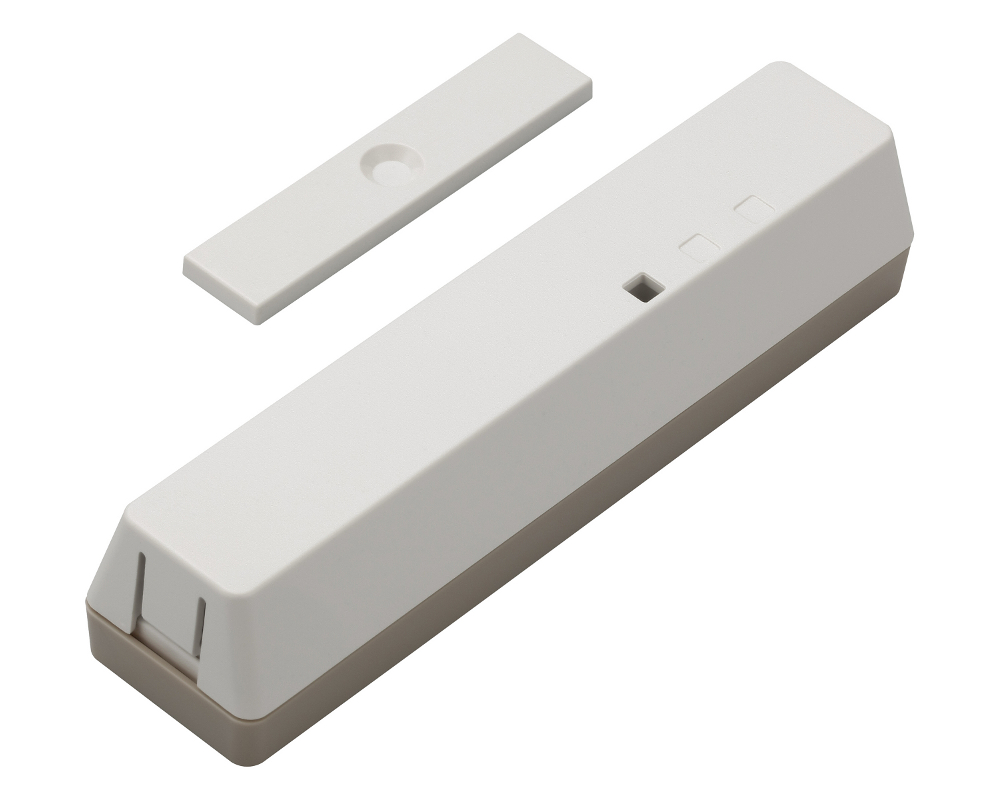

Name | KAIHEISENSOR 03 |
|---|
Short Description | This device is for KDDI IOT services only.
“KAIHEISENSOR 03” is a sensor that detects door and window open/close, temperature, humidity, and illumination. |
|---|
Long Description | This device is for KDDI IOT services only.
This product is “KAIHEISENSOR 03” that detects door and window open/close, temperature, humidity, and illumination.
It detects the state change of the place where the product is installed and notifies the controller.
It's possible to install it in the various places because a thin magnet is adopted. |
|---|
Brand | ATSUMI Electric Co., Ltd. |
|---|
Product Identifier | USC03A |
|---|
OEM Version | HW: 1 FW: 1.01:01.01 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.81.03 |
|---|
Library Type | SLAVE_ROUTING |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
Manufacturer ID | 0x0427 |
|---|
Product Type ID | 0x0001 |
|---|
Product ID | 0x0001 |
|---|
User Icon | 0x0C06 |
|---|
Installer Icon | 0x0C06 |
|---|
Frequency Plans | JP: 922.50MHz, 923.90MHz, 926.30MHz |
|---|
Categories | Sensors |
|---|
Countries / Regions | Japan |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 | Association Group Information V3 | 0x59 | 3 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC | Manufacturer Specific | 0x72 | 1 | COMMAND_CLASS_SENSOR_MULTILEVEL_V11 | Sensor Multilevel V11 | 0x31 | 11 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Battery Quantity | | Battery Type | | Supported Notification Types | | Sensors | Value |
|---|
Air Temperature | Luminance | Humidity | Open/Closed (Binary) |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 1 | 0 | Z-Wave Plus Lifeline |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | LED | LED Setting, Whether to Enable/Disable lighting at sending. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Disable | 1 | 1 | Enable |
| 2 | Temperature | Temperature Setting - Threshold value. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 7 | Value desired (1 to 9 °C in increments of 1°C) |
|
|
|---|
Texts | ID | Description | Value |
|---|
5 | Factory Reset | Use this procedure only in the event that the primary controller is lost. All the set values and the controller information are cleared to return to the factory default.
1. Hold down the operating switch for about 10 seconds. The LED comes on when initialization starts.
2. Release the operating switch when the LED comes on.The initialization is complete when the LED goes out. | 2 | Exclusion | Press the operating switch once. The LED comes on and then goes out. | 1 | Inclusion | Press the operating switch once and release it within about 2 seconds, then registration operation is started and the LED lights for about 30 seconds. | 4 | Device Wake-Up | Press the operating switch twice consecutively. The sensor wakes from the sleep state, and sends “WAKE UP NOTIFICATION”.
It will automatically enter the sleep state upon completion of sending/receiving with the controller. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Access Control | (Refer to parameters): State idle |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
Air temperature | General purpose | Illuminance | Humidity |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
