Product Recognition | |
|---|
Certification Number | ZC10-19026375 |
|---|

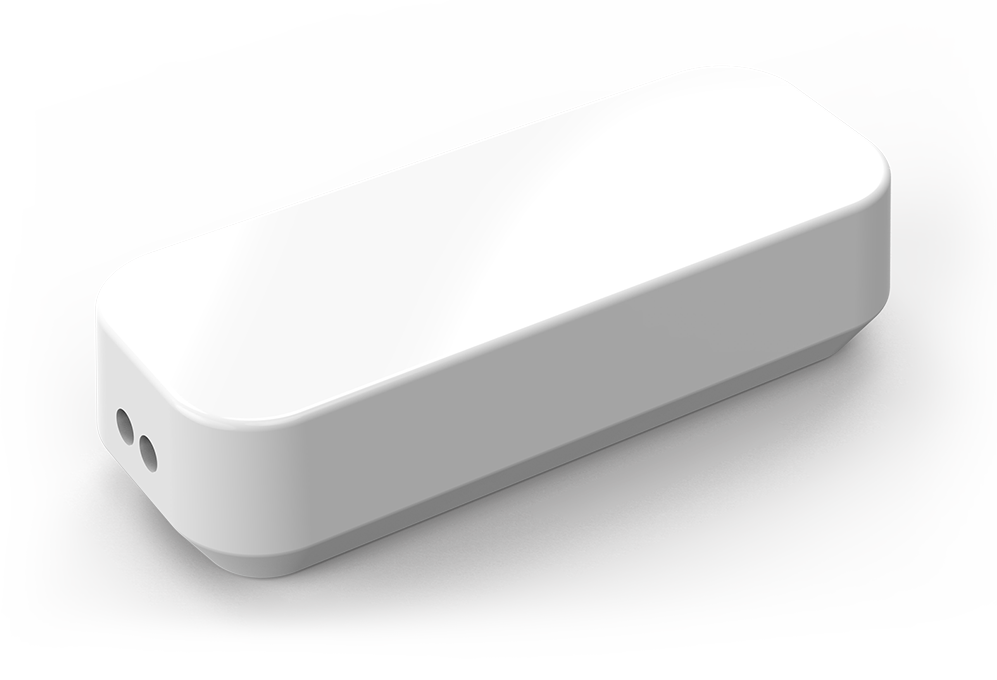

Name | KASAIHOUCHIKIADAPTOR01 |
|---|
Short Description | KASAIHOUCHIKIADAPTOR01 is a sensor notification device based on Z-Wave enhanced 232 slave library of V6.51.10. |
|---|
Long Description | KASAIHOUCHIKIADAPTOR01 is a sensor notification device based on Z-Wave enhanced 232 slave library of V6.51.10.
It is a fully functional Z-Wave® sensor that can detect a variety of dry contact signals, you just need to connection the matched external sensor on it, such as the water level sensor, dry contact switch, dry contact relay and so on. In other words, it can be used if the external sensor is a dry contact.
It is also a security Z-Wave device and supports the Over The Air (OTA) feature for the product’s firmware upgrade.
It can be included and operated in any Z‐Wave network with other Z‐Wave certified devices from other manufacturers and/or other applications. All non‐battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network.
It also supports Security Command Class and has the AES 128 bit security encryption built right in, so a security enabled controller is needed for fully to utilize its function. |
|---|
Brand | KDDI CORPORATION |
|---|
Product Identifier | UFA01A |
|---|
OEM Version | HW: 97 FW: 1.01 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.51.10 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
Manufacturer ID | 0x016A |
|---|
Product Type ID | 0x0A02 |
|---|
Product ID | 0x0061 |
|---|
User Icon | 0x0C01 |
|---|
Installer Icon | 0x0C01 |
|---|
Frequency Plans | JP: 922.50MHz, 923.90MHz, 926.30MHz |
|---|
Categories | Sensors |
|---|
Countries / Regions | Japan |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_SENSOR_BINARY | Sensor Binary | 0x30 | 1 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_NOTIFICATION_V3 | Notification V3 | 0x71 | 3 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 | Firmware Update Meta-Data V2 | 0x7A | 2 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC | Basic | 0x20 | 1 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Supported Notification Types | | Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Battery Type | | Color | | Battery Quantity | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | Z-Wave Plus Lifeline |
|
|---|
Configuration Parameters | Parameter Number | Name | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | Which value of the Sensor Binary Report will be sent when the Sensor is triggered On/Off. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
1 | 1 | On=Sensor Binary Report 0x00, Off=Sensor Binary Report 0xFF. | 0 | 0 | On=Sensor Binary Report 0xFF, Off=Sensor Binary Report 0x00. |
| 3 | Which value of the Basic Set will be sent when the Sensor is triggered On/Off. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | On=Basic Set 0xFF, Off=Basic Set 0x00. | 1 | 1 | On=Basic Set 0x00, Off =Basic Set 0xFF. |
| 111 | Set the interval time of battery report. | 0 | 4 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | The periodic battery report is disabled. | 1 | 2147483647 | the range of interval time is 1 seconds to 2147483647 seconds. |
| 122 | Set a Notification Type for the device. | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
4 | 4 | The Heat Alarm notification type is selected for the Sensor. | 5 | 5 | The Water Alarm notification type is selected for the Sensor. | 6 | 6 | The Access Control notification type is selected for the Sensor. | 7 | 7 | The Home Security notification type is selected for the Sensor. | 8 | 8 | The Power Management notification type is selected for the Sensor. | 9 | 9 | The System notification type is selected for the Sensor. | 10 | 10 | The Emergency Alarm notification type is selected for the Sensor. | 11 | 11 | The Clock notification type is selected for the Sensor. | 1 | 1 | The Smoke Alarm notification type is selected for the Sensor. | 2 | 2 | The CO Alarm notification type is selected for the Sensor. | 3 | 3 | The CO2 Alarm notification type is selected for the Sensor. |
| 255 | Reset the Sensor. | 0 | 4 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Reset to factory default settings. | 1431655765 | 1431655765 | Reset to factory default settings and removed from the Z-Wave network. |
| 2 | Enable/disable wake-up 10 minutes when re-power on the Sensor. | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
0 | 0 | disable | 1 | 1 | enable |
|
|
|---|
Texts | ID | Description | Value |
|---|
4 | Device Wake-Up | Press the Action Button once, which will trigger sending out the Wake up notification command; press and hold the Action Button for 3 seconds, which will toggle on/off the Sensor be waked up for 10 minutes. | 1 | Inclusion | Turn the primary controller of Z-Wave network into inclusion mode, short press the product’s Action Button that you can find in the back of the product. | 2 | Exclusion | Turn the primary controller of Z-Wave network into exclusion mode, short press the product’s Action Button that you can find in back of the product. | 5 | Factory Reset | Press and hold the Action Button that you can find in back of the product for at least 20 seconds and then release. This procedure should only be used when the primary controller is inoperable. | 6 | Additional Special Features | Support ""Over the Air Firmware Updating"" and “Z-Wave Security”. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Smoke Alarm | (Refer to parameters): State idle |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
