Product Recognition
Certification Number	ZC10-14120007

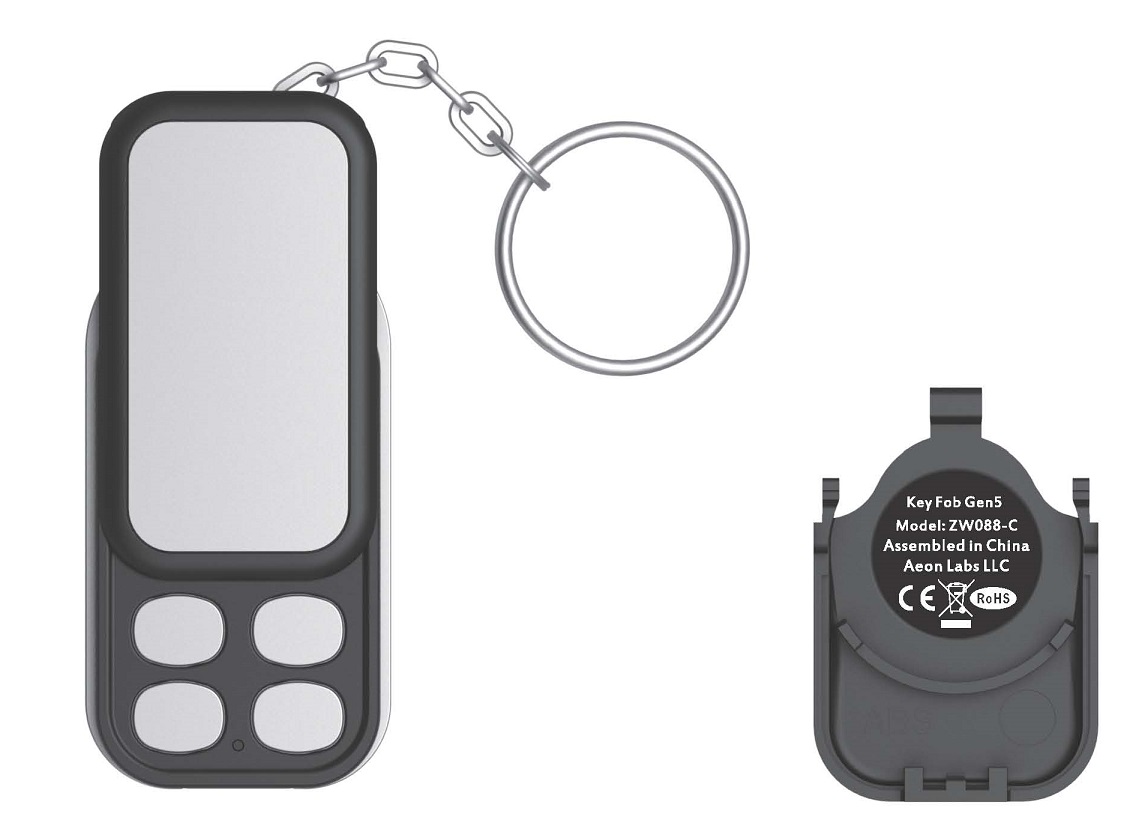

Name	Key Fob Gen5
Short Description	Key Fob Gen5 is a fully functional Z-wave remote controller, which can include, exclude and control the other Z-Wave certified devices.
Long Description	Key Fob Gen5 is a fully functional Z-wave remote controller, which can include, exclude and control the other Z-Wave certified devices. It also can be acted a secondary controller in a network. It is a four buttons design. You can use each button to control your home’s Z-Wave devices and build a Z-Wave network for them. Products that are Z-Wave certified can be used and communicate with other Z-Wave certified devices.
Brand	Aeotec
Product Identifier	ZW088-C
OEM Version	HW: 58 FW: 1.03
Hardware Platform	ZM5202
Z-Wave Version	6.51.00
Library Type	CONTROLLER_PORTABLE
Device Type	Remote Control - Multi Purpose
Role Type	ROLE_TYPE_CONTROLLER_PORTABLE
Manufacturer ID	0x0086
Product Type ID	0x0001
Product ID	0x0058
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	All Controllers, Handheld Controller
Countries / Regions	European Union
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_SWITCH_MULTILEVEL Switch Multilevel 0x26 1 COMMAND_CLASS_WAKE_UP Wake Up 0x84 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_SCENE_ACTIVATION Scene Activation 0x2B 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual Instructions - Aeon Labs Key Fob Gen5 MCert.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Group 1 is assigned to the Lifeline association group and every device has 5 nodes to associate. When the Key Fob is in Scene Mode, pressing the control button, which will send the corresponding Scene id to the associated nodes.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 250 Switching Group mode or Scene mode. This parameter is used to configure that the current mode is Group Mode or Scene Mode. (0== Group Mode, 1== Scene Mode). 0 1 0 0 0 From To Description 0 0 Set the current mode to Group Mode. 1 1 Set the current mode to Scene Mode. 255 Reset the configuration parameter to default factory setting This parameter is used to reset all configuration parameter to default factory setting. 0 1 0 0 0 From To Description 1 1 Resets all configuration parameters to default setting.
Texts	ID Description Value 24 Controller Exclusion Short press the “Exclude” button on the Key Fob, it will go into exclusion state and its red LED will blink slowly to wait excluding other slave Z-Wave devices from its network. 23 Controller Inclusion Short press the “Include” button on the Key Fob, it will go into inclusion state and its blue LED will blink slowly to wait including other slave Z-Wave devices. 3 Learn Mode (adding another controller) Short press the “Learn” button on the back of the Key Fob. 5 Factory Reset Use this procedure only in the event that the primary controller is missing or otherwise inoperable. Press and hold the “Mode” button and “Learn” button for 20 seconds and then release. 4 Device Wake-Up Press and hold the ""Learn"" for 3 seconds will trigger sending the Wake up notification command. 6 Additional Special Features It can also activate 8 Z-Wave Scenes.
Supports NWI	Yes
Supports Explorer Frames	Yes
