Product Recognition
Certification Number	ZC10-15100005

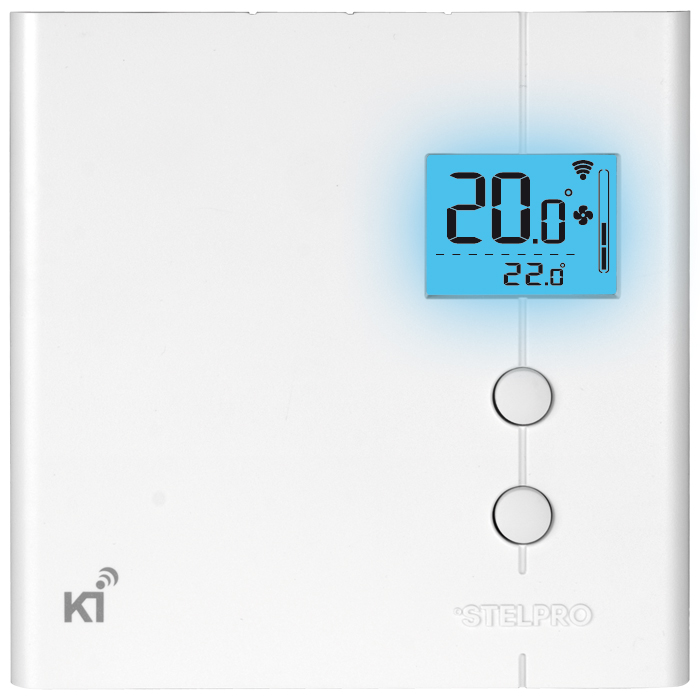

Name	Ki - Electronic Thermostat for Smart Home
Short Description	Ki is a Smart Home Z-Wave Plus line-voltage thermostat by Stelpro. It controls baseboard heaters, convectors and fan-forced heaters up to 4000W
Long Description	Ki, the smart home line-voltage thermostat by Stelpro - STZW402+ • The very first Z-Wave Plus line voltage thermostat in North America • Supports 120Vac - 240Vac (50/60 Hz) voltages • Controls baseboard heaters, convectors and fan-forced heaters up to 4000W • Easy to use 2 button interface • Made in Canada • High precision temperature control +/- 0.1 °C • Z-Wave Plus certified, works with thousands of other Z-Wave devices • Brings optimal comfort into your smart home • Can be integrated into smart home automated scenes • Displays external temperature • Adjustable backlight intensity • Comfort and Eco modes • Celsius or Fahrenheit display • Quiet TRIAC operation • Frost-free warning • Sleek design to harmonize with any decor • Backed by Stelpro’s 30 years of experience as a leader in the heating market
Brand	Stelpro
Product Identifier	STZW402+
OEM Version	01
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	SLAVE_ROUTING
Device Type	Thermostat - HVAC
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x0239
Product Type ID	0x0001
Product ID	0x0001
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	Thermostats
Countries / Regions	United States of America
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual INS_STZW402_0815_EN.PDF
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 1 0 Z-Wave Plus Lifeline The following reports are sent via the Lifeline : - Basic Report - Device Reset Locally Notification - Thermostat Mode Report - Thermostat Setpoint Report - Sensor Multilevel Report - Thermostat Operating State Report
Texts	ID Description Value 2 Exclusion Make sure the Z-Wave hub is in the exclude mode (Refer to your Z-Wave hub instruction manual). To remove (exclude) the thermostat from a Z-Wave network, enter the Menu1 (Z-Wave menu) and select “Off”. Then press the UP and DOWN buttons to start the exclusion process. During exclusion, “Off” will be blinking and the connectivity icon will be animated in an decreasing pattern. When the exclusion process has been completed, Off will be displayed solid. If an error occurs, “Err” will be displayed for 3 seconds then the screen will revert to “On” selection. 1 Inclusion Make sure the Z-Wave hub is in the include mode (Refer to your Z-Wave hub instruction manual). To add (include) the thermostat to a Z-Wave network, enter the Menu 1 (Z-Wave menu) and select “On”. Then press the UP and DOWN buttons to start the inclusion process. During inclusion, “On” will be blinking and the connectivity icon will be animated in an increasing pattern. When the inclusion process has been completed, On will be displayed solid. If an error occurs, “Err” will be displayed for 3 seconds then the screen will revert to “Off” selection. 5 Factory Reset The thermostat may be manually reset to its factory state. When this is performed, all parameters are reset to their default values and the thermostat is removed (excluded) from the Z-Wave network. To reset the thermostat to its default state: - Enter the advanced settings - Enter the °STELPRO menu (menu 6) - Navigate to the “def” screen using the UP or DOWN buttons. - Enter the “def” menu by pressing the UP and DOWN buttons for less than 3 seconds - Select “yes” and confirm the selection by pressing the UP and DOWN buttons for less than 3 seconds. If the thermostat was added (included) in a Z-wave network, it will send a ‘’device reset locally’’ notification. The thermostat will then reset itself. Please use this procedure only when the network primary controller is missing or otherwise inoperable. 6 Additional Special Features Outdoor Temperature When connected to a Z-Wave network, the thermostat may display the outdoor temperature provided by an external sensor. When available, the outdoor temperature is displayed instead of the set point, providing that the outdoor temperature display setting is set to on. If no temperature is received within a 4 hours timeframe, the outdoor temperature will disappear and the set point will be displayed. In order to display the outdoor temperature, an external sensor needs to be part of the Z-Wave network. It may be a physical sensor or a weather station app. Refer to your Z-Wave hub controller instructions manual to find how to associate both devices. On some Z-Wave hub controllers, an app may be used to provide the outdoor temperature.
Supports NWI	Yes
Supports Explorer Frames	Yes
