Product Recognition | |
|---|
Certification Number | ZC10-17125906 |
|---|

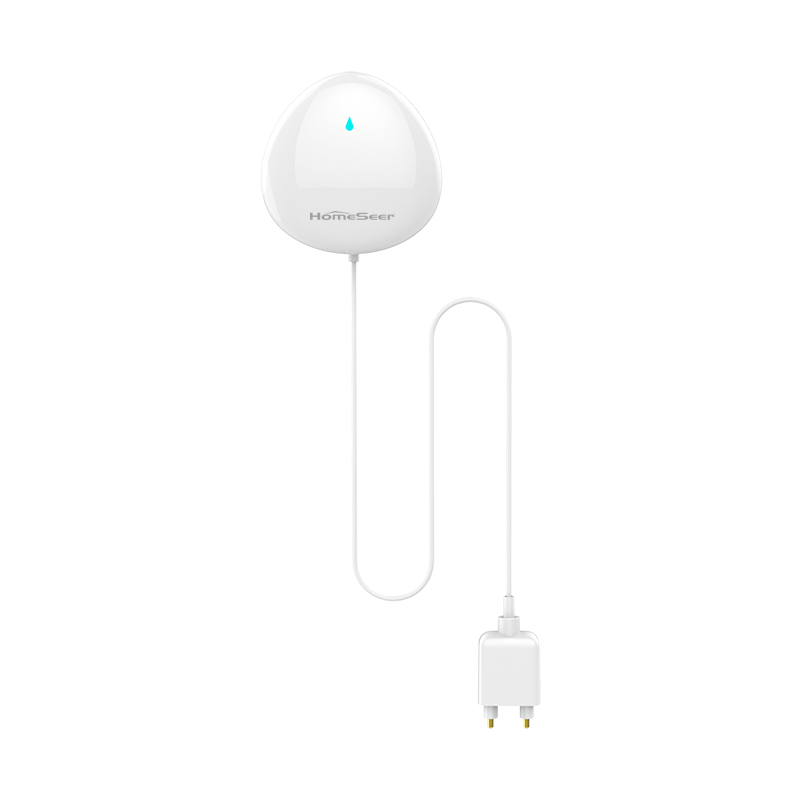

Name | LEAK SENSOR |
|---|
Short Description | LEAK SENSOR is capable of both detecting leaks, floods and when the level of water gets too low in pool or tank. |
|---|
Long Description | LEAK SENSOR is capable of both detecting leaks and floods and when the level of water gets too low in pool or tank, LEAK SENSOR can work with your z-wave network to prevent emergencies such as burst water boiler to leaking air conditioners. With Z-Wave, the scope to save money is endless.
The features list:
1) Z-Wave Plus certified for wide compatibility (500 serials product).
2) Security 0 and security 2 framework implemented with AES-128 encryption.
3) Contains an extension water detecting probe.
4) Temperature measurement.
5) Vibration sensor.
6) The battery life is up to 1 year.
7) Low battery alert |
|---|
Brand | HomeSeer |
|---|
Product Identifier | HS-LS100+ |
|---|
OEM Version | HW: 2 FW: 1.01 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.71.01 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
Manufacturer ID | 0x000C |
|---|
Product Type ID | 0x0201 |
|---|
Product ID | 0x000A |
|---|
User Icon | 0x0C00 |
|---|
Installer Icon | 0x0C00 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | Sensors |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_SENSOR_MULTILEVEL_V5 | Sensor Multilevel V5 | 0x31 | 5 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_NOTIFICATION_V5 | Notification V5 | 0x71 | 5 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V3 | Firmware Update Meta-Data V3 | 0x7A | 3 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC | Basic | 0x20 | 1 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Sensors | | Supported Notification Types | Value |
|---|
Heat Alarm | Water Alarm | Home Security |
| Battery Quantity | | Battery Type | | Color | | Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
2 | 5 | 0 | 1. Basic Set.
Flood Sensor will send Basic Set to associated nodes when Water leak detected. | 1 | 5 | 0 | Z-Wave Plus Lifeline:
1. Notification Report.
Sensor will send Notification Report to the associated nodes
2. Battery Report.
Sensor will send Battery Report when the battery level is low and the battery report’s value is 0xFF.
3. Device Reset Locally Notification.
Sensor will send Device Reset Locally Notification when reset
4.Sensor multilevel report
When associated to Group 1, you can adjust the temperature reporting cycle according to the configuration settings.
|
|
|---|
Configuration Parameters | Parameter Number | Name | Format | Size | Min Value | Max Value | Default Value | Parameter Values | Description |
|---|
17 | Set flooding alarm interval (Minute) | 0 | 1 | 0 | 0 | 5 |
Warning: Undefined variable $field_object in /nas/content/live/zwaprodcatalog/wp-content/themes/hello-elementor-child/single-z-wave-product.php on line 98
From | To | Description |
|---|
0 | 0 | Disable flooding alarm | -128 | 127 | The higher the value, the long the report periodically - in hexadecimal values from 0x01 to 0xFF, or 1 to 255 if your controller allows unsigned decimal values. |
| | 24 | Enable/Disable blinking LED when alarm being triggered | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
0 | 1 | when the value is 0, the product will not alarm when being triggered; when the value is 1, the product will alarm when being triggered |
| 0 –Disable. 1 –Enable. |
|
|---|
Texts | ID | Description | Value |
|---|
5 | Factory Reset | 1) Power on the device
2) Press and hold the Z button for more than 20 seconds,
3) If holding time more than 20seconds, the LED indicator will keep on for 2 seconds, which means resetting is complete.
4) The reset feature works only when the device has been included into a Z-Wave network.
Use this procedure only in the event that the network primary controller is missing or otherwise inoperable. | 4 | Device Wake-Up | Press and hold the Z button for more than 5 seconds and release. | 1 | Inclusion | 1) Open the cover.
2) Place the device within the direct range of your Z-Wave controller.
3) Set the main controller in add mode (see the controller’s manual).
4) Click the Z-button once or triple click the Z-button quickly, the LED indicator should blink fast.
5) Wait for the adding process to end.
6) Successful adding will be confirmed by the Z-Wave controller’s message. | 2 | Exclusion | 1) Open the cover.
2) Place the device within the direct range of your Z-Wave controller.
3) Set the main controller remove mode (see the controller’s manual).
4) Triple click the Z-button quickly, the LED indicator should blink fast.
5) Wait for the removing process to end.
6) Successful adding will be confirmed by the Z-Wave controller’s message. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Heat Alarm | (Refer to parameters): State idle | Water Alarm | (Refer to parameters): State idle | Home Security | (Refer to parameters): State idle |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
Air temperature |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
