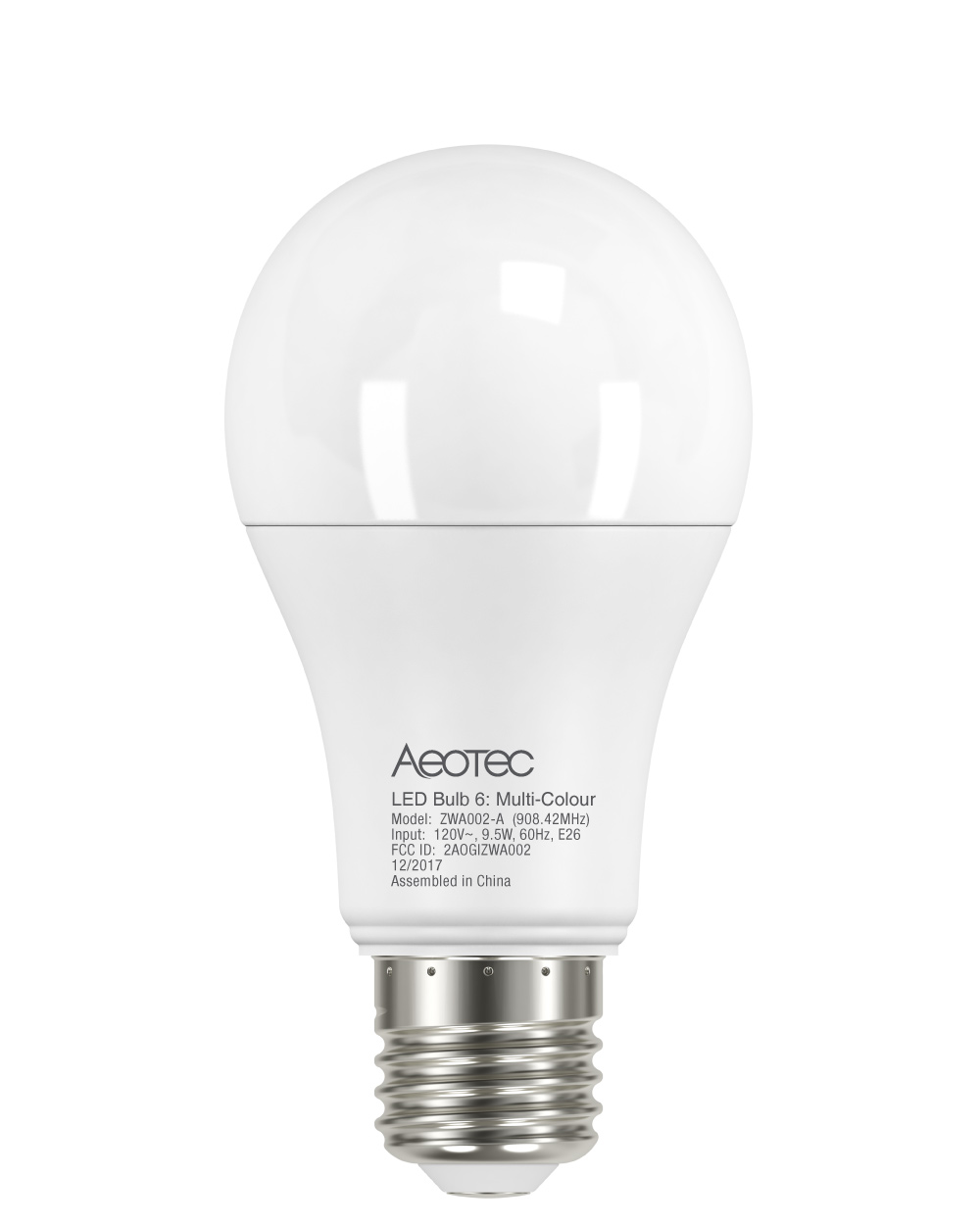

LED Bulb 6:Multi-Colour

Short Description

RGBW: dimmable from 5% to 100%, tunable from 1800K to 6500K, and 16 million colors

Long Description

✓ Standard form factor and appearance of the light bulb with 800 lm output ✓ RGBW: dimmable from 5% to 100%, tunable from 1800K to 6500K, and 16 million colors ✓ Possible to be included in groups, scenes, or schedules ✓ Suitable for indoor lighting: Corridors, Bedroom, Living Room, etc.

Brand

Aeotec

Product Identifier

ZWA002-A

OEM Version

HW: 1 FW: 1.13

Hardware Platform

ZM5101

Z-Wave Version

6.51.09

Library Type

SLAVE_ENHANCED_232

Device Type

Light Dimmer Switch

Role Type

ROLE_TYPE_SLAVE_ALWAYS_ON

Manufacturer ID

0x0371

Product Type ID

0x0103

Product ID

0x0002

User Icon

0x0600

Installer Icon

0x0600

Frequency Plans

US: 916.00MHz, 908.40MHz

Categories

All Lighting Devices, Lighting Accessories

Countries / Regions

United States of America

Supported Command Classes

Identifier	Name	Key	Version
COMMAND_CLASS_POWERLEVEL	Powerlevel	0x73	1
COMMAND_CLASS_SWITCH_ALL	Switch All	0x27	1
COMMAND_CLASS_BASIC	Basic	0x20	1
COMMAND_CLASS_CONFIGURATION	Configuration	0x70	1
COMMAND_CLASS_SECURITY	Security S0	0x98	1
COMMAND_CLASS_SWITCH_MULTILEVEL_V2	Switch Multilevel V2	0x26	2
COMMAND_CLASS_VERSION_V2	Version V2	0x86	2
COMMAND_CLASS_DEVICE_RESET_LOCALLY	Device Reset Locally	0x5A	1
COMMAND_CLASS_ZWAVEPLUS_INFO_V2	Z-Wave Plus Info V2	0x5E	2
COMMAND_CLASS_ASSOCIATION_V2	Association V2	0x85	2
COMMAND_CLASS_ASSOCIATION_GRP_INFO	Association Group Info	0x59	1
COMMAND_CLASS_SWITCH_COLOR	Switch Color	0x33	1
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2	Firmware Update Meta-Data V2	0x7A	2
COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2	Manufacturer Specific V2	0x72	2

Documents

Category	Description	File
Manual_Primary_Lang	Product or Owner's Manual	LED Bulb 6 Manul.pdf

Features

Feature

Values

Firmware Updatable

Value
Updatable by Consumer by RF

Switch Load Capacity Watts

Value
10

Color

Value
White

Association Groups

Group Number	Maximum Nodes Supported	End Point ID	Description
1	1	0	Set Configuration parameter 0x50 0: nothing. 1: Send the Basic Report. 2. Send Device Reset Locally CC

Configuration Parameters

Parameter Number

Name

Description

Format

Size

Min Value

Max Value

Default Value

Parameter Values

User custom mode for LED animations.

User custom mode for LED animations. 0 = Disable custom mode. 1= Blink Colors in order mode. 2=Randomized blink color mode

From	To	Description
0	0	Disable custom mode
1	1	Blink Colors in order mode.
2	2	Randomized blink color mode

Set the rate of change to next color in Custom Mode.

Set the rate of change to next color in Custom Mode. Value1 ~ Value4: Value Range = 5 - 8640000 (50 - 86400000ms)

From	To	Description
5	8640000	Set the specified rate of change to next color in Custom Mode.

Set color that LED Bulb blinks in (Blink Mode)

Set color that LED Bulb blinks in (Blink Mode) Value range =0x01-0xFF

From	To	Description
0	255	Set color that LED Bulb blinks in (Blink Mode)

Enable/Disable Strobe over Custom Color.

Enable/Disable Strobe over Custom Color. 0 = Disable. 1 = Enable. Others = Ignore.

From	To	Description
0	0	Disable Strobe over Custom Color.
1	1	Enable Strobe over Custom Color.

Enable to send notifications to associated devices (Group 1) when the state of LED Bulb is changed.

Enable to send notifications to associated devices (Group 1) when the state of LED Bulb is changed. 0 = Nothing. 1= Basic CC report.

From	To	Description
0	0	Nothing
1	1	Send basic report to associated devices when the state of the LED Bulb is changed

The user can configure the parameter to adjust the color component Warm White.

The user can configure the parameter to adjust the color component Warm White. Value range =Warm White(0x0A8C(2700k) ~ 0x1387 (4999k))

2700

From	To	Description
2700	4999	Value range =Warm White(0x0A8C(2700k) ~ 0x1387 (4999k))

The user can configure the parameter to adjust the color component Cold White.

The user can configure the parameter to adjust the color component Cold White. Value rang = Cold White (0x1388 (5000k) ~ 0x1964 (6500k))

6500

From	To	Description
5000	6500	Value rang = Cold White (0x1388 (5000k) ~ 0x1964 (6500k))

Texts

ID	Description	Value
5	Factory Reset	Reset the Device. 1. Assuming led bulb was added to controller and was power on. 2. RGBW bulb re-power 6 times (between 0.5-2 seconds each time). Note: ON -> OFF -> ON -> OFF -> ON -> OFF -> ON -> OFF -> ON -> OFF -> ON -> OFF -> ON 3. If the 6th power on, the led bulb change to Yellow color(into pairing process ), which means that the reset factory settings are successf. Using this action in case of the primary controller is missing or inoperable.
1	Inclusion	Add for inclusion 1. Ensure the led bulb has been excluded outside the network. 2. Triggered by OFF ->ON (between 0.5-2 seconds each time) 3. LED solid yellow Color (0xFFFF00) during the pairing(Timeout is 10 seconds).  Failure: Blinks between 100% White and Red 0x0000FF color for 3 seconds (at a rate of 200ms per flash), Once 3 seconds have passed, the LED should return to a Warm White LED at 100%  Success: Blinks between 100% White and Green 0x00FF00 color for 3 seconds (at a rate of 200ms per flash). Once 3 seconds have passed, the LED should return to a Warm White LED at 100%.
2	Exclusion	Remove for exclusion 1. Assuming led bulb was added to controller. 2. Triggered by OFF -> ON -> OFF -> ON -> OFF -> ON (between 0.5-2 seconds each time). 3. LED Solid Purple/Violet Color (0xEE82EE) during the unpairing process. (Timeout is 10 seconds).  Failure: Blinks between 100% White and Red 0x0000FF color for 3 seconds (at a rate of 200ms per flash), Once 3 seconds have passed, the LED should return to the last color ( memory status(color cc set)) of LED Bulb.  Success: Blinks between 100% White and Blue 0x0000FF color for 3 seconds (at a rate of 200ms per flash). Once 3 seconds have passed, the LED should return to a Warm White LED at 100%.

Supports NWI

Yes

Supports Explorer Frames

Yes

Radio Range Z-Wave (m)
