Product Recognition | |
|---|
Certification Number | ZC10-16065126 |
|---|

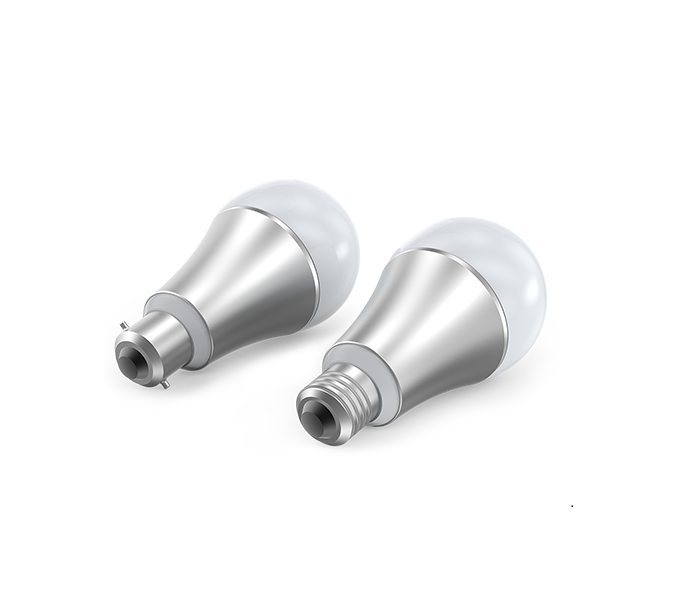

Name | LED Bulb |
|---|
Short Description | Aeotec LED Bulb is a low-cost Z-Wave LED module which allows control (on/off/dim) with the use of Z-Wave. |
|---|
Long Description | Aeotec LED Bulb is a low-cost Z-Wave LED module which allows control (on/off/dim) with the use of Z-Wave.
It’s a bulb has a Smart RGB LED, which can be used to add colour to your home. The bulb has 5 main colour channels available for you to adjust: Red, Green, Blue, Warm White and Cold White. You can configure its colour according to your favour.
The LED Bulb is also a security Z-Wave device and supports the Over The Air (OTA) feature for the product’s firmware upgrade. |
|---|
Brand | Aeotec |
|---|
Product Identifier | ZW098-C55 |
|---|
OEM Version | HW: 98 FW: 1.05 |
|---|
Hardware Platform | ZM5101 |
|---|
Z-Wave Version | 6.51.06 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Light Dimmer Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0086 |
|---|
Product Type ID | 0x0003 |
|---|
Product ID | 0x0062 |
|---|
User Icon | 0x0600 |
|---|
Installer Icon | 0x0600 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | All Lighting Devices, Dimming Lighting Devices |
|---|
Countries / Regions | European Union |
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_HAIL | Hail | 0x82 | 1 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Switch Type | | Z-Wave Scene Type | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | The association group 1 is the Z-Wave Lifeline group. The Hail CC and Basic Report CC (configurable) can be sent to the associated nodes in association group 1. | 2 | 5 | 0 | In this group, the Basic Set, Switch Binary Set, Switch Multilevel Start Level Change, Switch Multilevel Stop Level Change, Switch Multilevel Set, Scene Activation Set commands would be sent to the associated nodes in association group 2 when the Bulb receives the Basic Set, Switch Binary Set, Switch Multilevel Start Level Change, Switch Multilevel Stop Level Change, Switch Multilevel Set, Scene Activation Set commands from the main controller. |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
80 | To set whcih notification can be sent to the associated devices (Group 1) when the state of LED Bulb is changed. | To set whcih notification can be sent to the associated devices (Group 1) when the state of LED Bulb is changed. | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
0 | 0 | Nothing | 1 | 1 | Hail CC | 2 | 2 | Basic CC report. |
| 112 | Set the Dimmer mode. | Set the Dimmer mode. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Parabolic curve mode | 1 | 1 | Index curve mode | 2 | 2 | (Parabolic + Index)/2 mode | 3 | 3 | Linear mode |
| 252 | Enable/disable Lock Configuration | Enable/disable to lock Configuration parameters. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Disable | 1 | 1 | Enable |
| 255 | Reset the Bulb | Reset the Bulb to factory default. | 0 | 4 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Reset all configuration parameters to factory default settings | 1431655765 | 1431655765 | Reset the bulb to factory default. |
|
|
|---|
Texts | ID | Description | Value |
|---|
6 | Additional Special Features | Support ""Over the Air Firmware Updating"" and “Z-Wave Security”. | 1 | Inclusion | Turn the primary controller of Z-Wave network into inclusion mode, press the external switch of LED Bulb to turn it off and then press the external switch again to turn it on. | 2 | Exclusion | Turn the primary controller of Z-Wave network into exclusion mode, press the external switch of LED Bulb to turn off and then press the external switch again to turn on it, repeat the operation 3 times. | 5 | Factory Reset | Turn the controller of Z-Wave network into exclusion mode, press the external switch of LED Bulb to turn off and then press the external switch again to turn on it, repeat the operation 3 times.
After the LED Bulb is excluded from network, it will be reset to factory default state.
Use this procedure only in the event that your primary network controller is missing or inoperable. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
