Product Recognition
Certification Number	ZC10-16095245

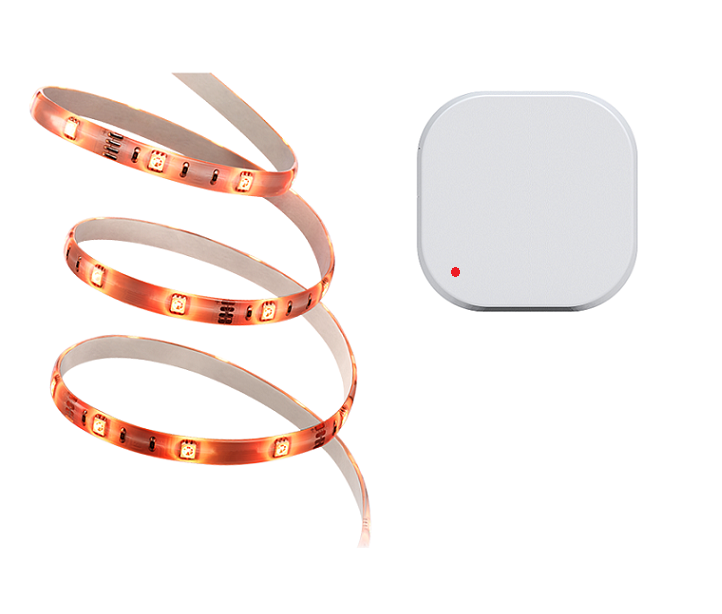

Name	LED Strip
Short Description	Aeotec LED Strip is a low-cost Z-Wave LED Strip module which allows control (on/off/dim) with the use of Z-Wave.
Long Description	Aeotec LED Strip is a multi-coloured LED Strip which allows control (on/off/dim/colour change) via wireless Z-Wave commands. The LED Strip can also communicate securely via AES 128 wireless Z-Wave commands and supports Over-The-Air (OTA) firmware upgrades.
Brand	Aeotec
Product Identifier	ZW121-C
OEM Version	HW: 121 FW: 1.01
Hardware Platform	ZM5101
Z-Wave Version	6.51.08
Library Type	SLAVE_ENHANCED_232
Device Type	Light Dimmer Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x0086
Product Type ID	0x0003
Product ID	0x0079
User Icon	0x0600
Installer Icon	0x0600
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	All Lighting Devices, Dimming Lighting Devices
Countries / Regions	European Union
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_HAIL Hail 0x82 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual LED Strip manual.pdf
Features	Feature Values Color Value White Z-Wave Scene Type Value Scene Firmware Updatable Value Updatable by Consumer by RF Switch Type Value Push Button Illuminated
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 The association group 1 is the Z-Wave Lifeline group. The Hail CC and Basic Report CC (configurable) can be sent to the associated nodes in association group 1. 2 5 0 In this group, the Basic Set, Switch Binary Set, Switch Multilevel Start Level Change, Switch Multilevel Stop Level Change, Switch Multilevel Set, Scene Activation Set commands would be sent to the associated nodes in association group 2 when the LED Strip receives the Basic Set, Switch Binary Set, Switch Multilevel Start Level Change, Switch Multilevel Stop Level Change, Switch Multilevel Set, Scene Activation Set commands from the main controller.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 80 To set whcih notification can be sent to the associated devices (Group 1) when the state of LED Bulb is changed. To set whcih notification can be sent to the associated devices (Group 1) when the state of LED Bulb is changed. 0 1 0 0 1 From To Description 3 3 Haill CC when pressing the Action Button to change its state 0 0 Nothing 1 1 Hail CC 2 2 Basic CC report. 112 Set the Dimmer mode. Set the Dimmer mode. 0 1 0 0 0 From To Description 0 0 Parabolic curve mode 1 1 Index curve mode 2 2 (Parabolic + Index)/2 mode 3 3 Linear mode 252 Enable/disable Lock Configuration Enable/disable to lock Configuration parameters. 0 1 0 0 0 From To Description 0 0 Disable 1 1 Enable 255 Reset the LED Strip Reset the LED Strip to factory default. 0 4 0 0 0 From To Description 0 0 Reset all configuration parameters to factory default settings 1431655765 1431655765 Reset the LED Strip to factory default.
Texts	ID Description Value 5 Factory Reset Press and hold the Action Button on the LED Strip Controller for 20 seconds and then release it. Use this procedure only in the event that your primary network controller is missing or inoperable. 6 Additional Special Features Support ""Over the Air Firmware Updating"" and “Z-Wave Security”. 1 Inclusion Turn the primary controller of Z-Wave network into inclusion mode, press the Action Button on the LED Strip Controller. 2 Exclusion Turn the primary controller of Z-Wave network into exclusion mode, press the Action Button on the LED Strip Controller.
Supports NWI	Yes
Supports Explorer Frames	Yes
