Product Recognition | |
|---|
Certification Number | ZC10-17075687 |
|---|

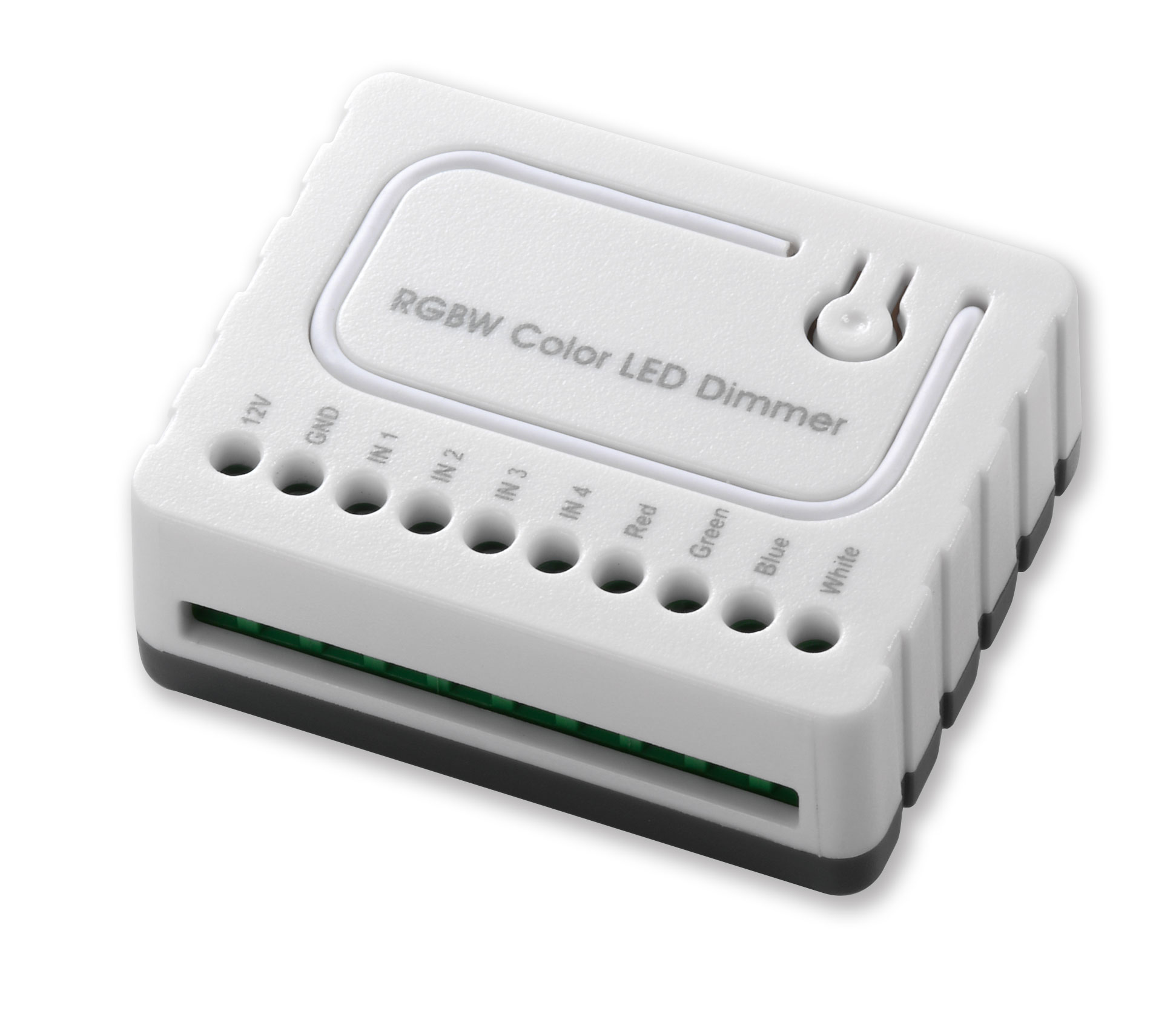

Name | Light Dimmer Switch |
|---|
Short Description | Light Dimmer Switch |
|---|
Long Description | *Apart from traditional RGB channels,it supports the additional white light channel, which allows for adding pastel color to the color scheme
*RGBW Dimmer allows to connect four output channels and independently control each light sources.(single channel output power max to 8A)
*Control your color lighting either manually via switches or your smartphone,or automatically via a presence detector
*LED lighting perfectly suits modern design, you can create your own color compositions depending on your mood, helping you feel warm or peaceful |
|---|
Brand | Good Way Technology, Co., Ltd |
|---|
Product Identifier | TD14000 |
|---|
OEM Version | HW: 255 FW: 2.07 |
|---|
Hardware Platform | ZM5101 |
|---|
Z-Wave Version | 6.51.07 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Light Dimmer Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0068 |
|---|
Product Type ID | 0x0003 |
|---|
Product ID | 0x000B |
|---|
User Icon | 0x0600 |
|---|
Installer Icon | 0x0600 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | All Lighting Devices, Dimming Lighting Devices |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SWITCH_MULTILEVEL_V2 | Switch Multilevel V2 | 0x26 | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_SWITCH_COLOR_V2 | Switch Color V2 | 0x33 | 2 | COMMAND_CLASS_MANUFACTURER_SPECIFIC | Manufacturer Specific | 0x72 | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 | Firmware Update Meta-Data V2 | 0x7A | 2 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Electric Load Type | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | Z-Wave Plus Lifeline |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | Switch Type | 1 1:Toggle Mode 2: Momentary Mode | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
1 | 2 | Toggle/Momentary Mode |
| 2 | Switch mode | 1: Normal Mode 2: Brightness Mode 3: Rainbow Mode | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
1 | 3 | Normal/Brightness/Rainbow Mode |
| 3 | Auto Scene Mode Set | 1: Ocean 2: Lightning 3: Rainbow 4: Snow 5: Sun | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
1 | 5 | Scen Change |
| 4 | Auto Scene Mode Duration | Adjust Scene delay time: 1. When Value is 1(0x01)~127(0x7F), the delay duration is 1 sec.~127 sec. 2. When Value is 128(0x80)~255(0xFE), the delay duration is 1 min.~127 min. | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
1 | 127 | duration is second | 128 | 255 | duration is min |
|
|
|---|
Texts | ID | Description | Value |
|---|
5 | Factory Reset | Exclude the R.G.B.W. Color LED Dimmer into the Z-Wave network,
press 3 times in 2 seconds. If the device is properly excluded, the green light will blink and the data will be reset to the factory default values.
Please note that re-including the product will reset the data to the
default values. Use this procedure only in the event that the network
primary controller is missing or otherwise inoperable. | 1 | Inclusion | Include Button - Inclusion, press 3 times in 2 seconds | 2 | Exclusion | Exclude Button - exclusion, press 3 times in 2 seconds |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
