Product Recognition | |
|---|
Certification Number | ZC10-16055078 |
|---|

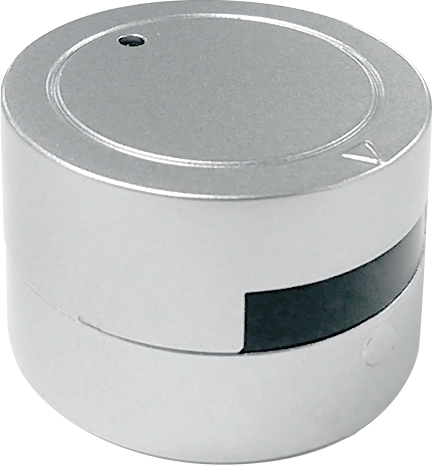

Name | Lock Dectector |
|---|
Short Description | Unlock/Lock detector.
By range finder, thumb-turn direction (horizontal/vertical) of a door is detected. |
|---|
Long Description | The sensor can remind a user to lock the door. The range finder developed for automobile was remodeled to battery-powered to adjust to Smart Home usage. It detects thumb-turn direction (horizontal/vertical) of a door. |
|---|
Brand | Z-Works |
|---|
Product Identifier | DN3G6JA062 |
|---|
OEM Version | HW: 255 FW: 1.80 |
|---|
Hardware Platform | SD3502 |
|---|
Z-Wave Version | 6.51.03 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
Manufacturer ID | 0x024D |
|---|
Product Type ID | 0x4761 |
|---|
Product ID | 0x0001 |
|---|
User Icon | 0x0C07 |
|---|
Installer Icon | 0x0C07 |
|---|
Frequency Plans | JP: 922.50MHz, 923.90MHz, 926.30MHz |
|---|
Categories | Sensors |
|---|
Countries / Regions | Japan |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | Z-Wave Plus Lifeline |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
2 | LED blinking mode | LED indicator for data transmission blinks when state change. | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
2 | 2 | LED indicator lights 1 second after thumb turn status open to close | 3 | 3 | LED indicator lights 1 second after changed thumb turn status | 0 | 0 | LED indicator is always off | 1 | 1 | LED indicator lights 1 second after thumb turn status close to open |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | Using a paper clip or equivalent, push the button over 3 seconds.
(Please note that this product is reset if switch is pushed over 10 seconds)
Status LED turns off after adding. | 2 | Exclusion | Using a paper clip or equivalent, push the button over 3 seconds.
(Please note that this product is reset if switch is pushed over 10 seconds)
Status LED starts flashing after removal is finished. | 4 | Device Wake-Up | Remove the battery and put it back after making sure the device is fully discharged. The device shall send the wake up notification. | 5 | Factory Reset | Using a paper clip or equivalent, push the button over 10 seconds.
Use this procedure only in the event that the network primary controller is missing or otherwise inoperable. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
