Product Recognition | |
|---|
Certification Number | ZC14-25080541 |
|---|

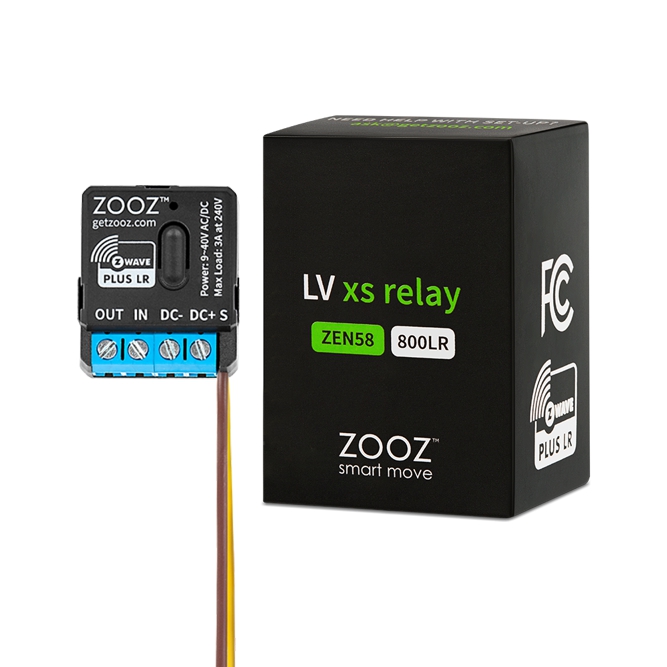

Name | Low Voltage XS Relay |
|---|
Short Description | Add Z-Wave to garage doors, entry gates, gas fireplace, or any analog equipment under 3A. |
|---|
Description | PRODUCT HIGHLIGHTS:
- Manual or Z-Wave® on/off control for low Voltage loads
- Great for automating garage doors and entry gates
- Monitors analog dry contact inputs like open / close sensors
- Installs behind your existing wall switch (single pole or 3-way)
- Z-Wave® Long Range for a next-level wireless network
- Remembers and restores on/off status after power failure
- 800 series Z-Wave® and S2 SmartStart Security
SPECS:
- Model Number: ZEN58 800LR
- Power: 9~40V AC/DC
- Maximum Load: 3A at 240 V
- Range: Up to 300 feet line of sight (up to 1300 feet with ZWLR)
- Operating Temperature: 32-104° F (0-40° C)
- Installation and Use: Indoor only
- Dimensions: 1.2” x 1” x 0.6” |
|---|
Brand | Zooz |
|---|
Brand Owner | Zooz |
|---|
Identifier | ZEN58 800LR |
|---|
Product Line | Smart Relays |
|---|
Product URL | https://www.thesmartesthouse.com/products/zooz-z-wave-long-range-low-voltage-xs-relay-zen58-800lr |
|---|
OEM Version | HW: 01 FW: 01.10 |
|---|
Hardware Platform | EFR32ZG23A |
|---|
Z-Wave Version | 7.18.8 |
|---|
Library Type | END_NODE_ENHANCED_232 |
|---|
Device Type | Binary Switch DT |
|---|
Role Type | ROLE_TYPE_END_NODE_ALWAYS_ON |
|---|
Manufacturer ID | 0x027A |
|---|
Product Type ID | 0x0004 |
|---|
Product ID | 0x0322 |
|---|
User Icon | 0x0700 |
|---|
Installer Icon | 0x0700 |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
Radio Range Z-Wave LR (m) | 400 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz, US_LR: 912.00MHz, 920.00MHz |
|---|
Categories | On/Off Switches/Devices |
|---|
Countries / Regions | Argentina, Bahamas, Barbados, Bermuda, Bolivia, British Virgin Islands, Canada, Cayman Islands, Colombia, Guatemala, Haiti, Honduras, Jamaica, Mexico, Panama, Saint Kitts and Nevis, Suriname, Trinidad and Tobago, Turks and Caicos Islands, United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | COMMAND_CLASS_SWITCH_BINARY_V2 | Binary Switch V2 | 0x25 | 2 | COMMAND_CLASS_CENTRAL_SCENE_V3 | Central Scene V3 | 0x5B | 3 | COMMAND_CLASS_CONFIGURATION_V4 | Configuration V4 | 0x70 | 4 | COMMAND_CLASS_APPLICATION_STATUS | Application Status | 0x22 | 1 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 | Association Group Information (AGI) V3 | 0x59 | 3 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 | Firmware Update Meta Data V5 | 0x7A | 5 | COMMAND_CLASS_INDICATOR_V3 | Indicator V3 | 0x87 | 3 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_SECURITY_2 | Security 2 | 0x9F | 1 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 |
|
|---|
S2 Classes | S2_AUTHENTICATED, S2_UNAUTHENTICATED |
|---|
Documents | Category | File |
|---|
Manual_English | |
|
|---|
Features | Feature | Values |
|---|
Color | | Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Switch Load Capacity Current | | Z-Wave Scene Type | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Profile |
|---|
1 | 5 | 0 | Lifeline | 0x0001 | 2 | 5 | 0 | On/Off Control | 0x2001 |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value |
|---|
1 | LED Indicator | Choose if you want the LED to indicate the on/off status of the load or if you want it to remain on or off at all times. | 2 | 1 | 0 | 0 | 0x01 | 2 | On/Off Status After Power Failure | Set the on off status for the relay after power failure. | 2 | 1 | 0 | 0 | 0x02 | 3 | Status Report Type | Choose physical (wall switch) and Z-Wave triggers for the relay to send a status change report to the hub. See manual for details. | 2 | 1 | 0 | 0 | 0x01 | 4 | Scene Control | Enable or disable scene control functionality for quick double tap triggers. | 2 | 1 | 0 | 0 | 0x01 | 5 | Input Type | Choose the wall switch or input type you want to connect to the relay. See manual for details. | 2 | 1 | 0 | 0 | 0x00 | 6 | Inclusion From Switch | Enable (1) or disable (0) ZEN57 inclusion/exclusion via 3 quick toggles (up-down sequences) of the connected wall switch. | 2 | 1 | 0 | 0 | 0x01 | 7 | Auto Turn-Off Timer | Auto-off timer will automatically turn the relay off after x seconds once it has been turned on. | 1 | 4 | 0 | 0 | 0x00000000 | 8 | Auto Turn-On Timer | Auto-on timer will automatically turn the relay on after x seconds once it has been turned off. | 1 | 4 | 0 | 0 | 0x00000000 | 9 | Relay Control (Smart Bulb Mode) | Enable or disable physical and Z-Wave on/off control. Disable both (value 2) for smart bulbs. | 2 | 1 | 0 | 0 | 0x01 | 10 | Relay Type (NO/NC) | Set the relay to act as normally closed (1). Expert users only. See manual for details. | 2 | 1 | 0 | 0 | 0x00 | 11 | Input Trigger | Choose whether the input (wall switch) on the ZEN57 triggers the output (load) or just sends input reports for monitoring, keeping output separate. | 2 | 1 | 0 | 0 | 0x00 |
|
|---|
Texts | ID | Description | Value |
|---|
8 | Where to find S2 DSK on product | The SmartStart QR code / security PIN is located on the back of the relay. | 1 | Classic Inclusion | initiate inclusion (pairing) in the app or hub UI. Make sure the device is powered and finalize the inclusion at the relay: tap the Z-Wave® button on the relay 3 times quickly. | 2 | Classic Exclusion | 1. Bring your Z-Wave® gateway (hub) close to the relay if possible
2. Put the Z-Wave® hub into exclusion mode
3. Click the Z-Wave® button on the relay 3 times quickly (the LED indicator will start blinking green)
4. Your hub will confirm exclusion, the LED indicator on the relay will turn green for 2 seconds, and the device will be removed. | 5 | Factory Reset Procedure | If your primary controller is missing or inoperable, you may need to reset the device to factory settings. To reset the relay, click the Z-Wave® button once and immediately after, press and hold the button for 15 seconds. The LED indicator will flash during the process and turn red for 3 seconds to confirm successful reset.
NOTE: All previously recorded activity and custom settings will be erased from the device’s memory. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Supports SmartStart | Yes |
|---|
