Product Recognition | — |
|---|---|
Certification Number | ZC08-11020001 |

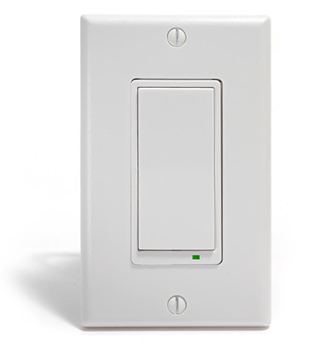

Name | LSM-20 - Scene Capable Relay Module |
Long Description | Scene Capable Relay ModuleProvides wireless RF or manual ON/OFF control of any light or lamp.
- Can control 4 other groups of 5 modules each.
- Replaces current wall switch, and can add 3-way capablility.
- Each LSM-20 Wall Mounted Switch functions as an automatic repeater to other Z-Wave Modules to ensure full home coverage of the RF signal.
- Supports the Powerlevel command.
- Has automatic Static Update Controller (SUC) capability.
The Evolve LSM-20 can be easily be installed as a replacement for a current switch to directly control the on/off of any connected lighting or electrical load. It can be remotely controlled from a Z-Wave Wireless Controller. Pushing the top or bottom of the switch identifies the LSM-20 to the wireless Controller. Loads can then be turned on and off, in groups, or individually from the Wireless Controller |
Brand | Evolve Guest Controls |
Product Identifier | ZRW103/LSM-20 |
OEM Version | ZRW103, LSM-20 V5.1 |
Hardware Platform | ZW0301 |
Z-Wave Version | 4.51 |
Library Type | SLAVE_ROUTING |
Device Type | Not Z-Wave Plus |
Manufacturer ID | 0x0113 |
Product Type ID | 0x5257 |
Product ID | 0x3033 |
Frequency Plans | US: 916.00MHz, 908.40MHz |
Categories | All Lighting Devices, On/Off Switches/Devices |
Countries / Regions | United States of America |
Controlled Command Classes | |
Documents | |
Radio Range Z-Wave (m) | 40 |
