| Product Recognition | — |
|---|
| Certification Number | ZC08-10060004 |
|---|

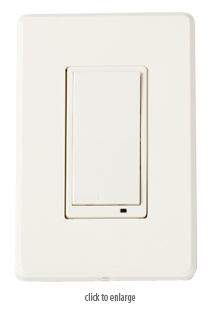

| Name | LTM-5 - Wall mounted Z-Wave transmitter |
|---|
| Long Description | LTM-5 Wall Mounted Transmitter
The LTM-5 Wall Mounted Transmitter is a component of the Evolve lighting control system. As it controls no load directly, wire the transmitter anywhere power is available according to the diagram above. Inclusion of the LTM-5 Wall Mounted Transmitter allows remote ON/OFF control and dimming of lights controlled by associated modules.
This Wall Mounted Transmitter is designed to work with other Evolve enabled devices. Evolve nodes of other types can be included in the network and will also act as repeaters to increase the range of the network.
Power Requirements
120 VAC, 60 Hz
Specifications
Signal (Frequency) – 908.42 MHz
Range – Up to 100 feet line of sight between the Controller and /or the closest Z-Wave Device.
Z-Wave Version 4.52
Network Inclusion
Scene – Command Class
Security Compatible |
|---|
| Brand | Evolve Guest Controls |
|---|
| Product Identifier | LTM-5_1006 |
|---|
| OEM Version | LTM-5 V5.1 |
|---|
| Hardware Platform | ZW0301 |
|---|
| Z-Wave Version | 4.51 |
|---|
| Library Type | SLAVE_ROUTING |
|---|
| Device Type | Not Z-Wave Plus |
|---|
| Manufacturer ID | 0x0113 |
|---|
| Product Type ID | 0x5457 |
|---|
| Product ID | 0x3033 |
|---|
| Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
| Categories | All Lighting Devices, Lighting Accessories |
|---|
| Countries / Regions | United States of America |
|---|
| Controlled Command Classes | | Identifier | Name | Key | Version |
|---|
| COMMAND_CLASS_SWITCH_MULTILEVEL | Switch Multilevel | 0x26 | 1 | | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 |
|
|---|
| Documents | |
|---|
