META ENERGY DRIVEN SWITCH-C 7

Short Description

META Energy Driven Switch C 7 monitors all parameters, usage, faults and overloads of the electrical system. A bi-directional meter that measures consumed and produced power.

Long Description

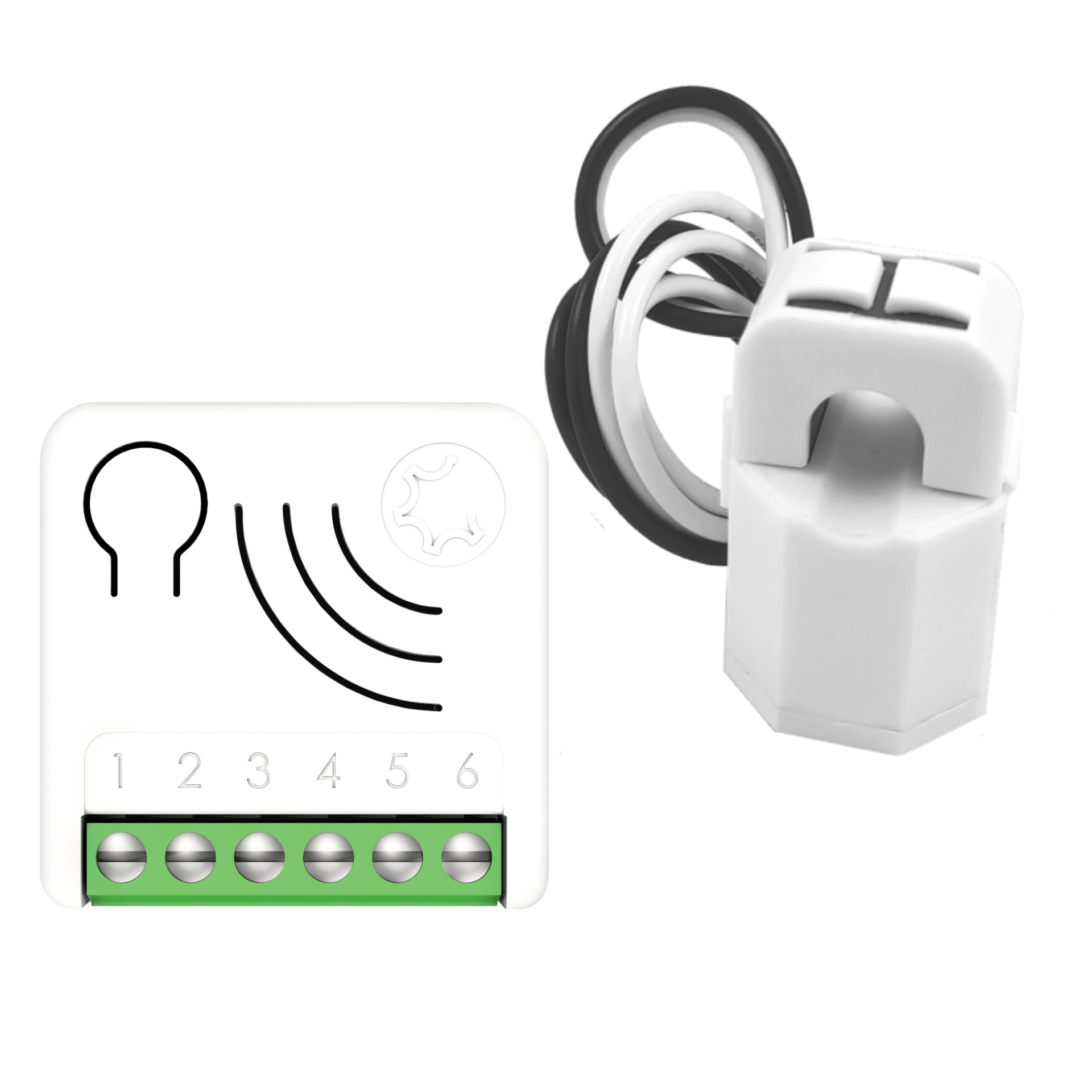

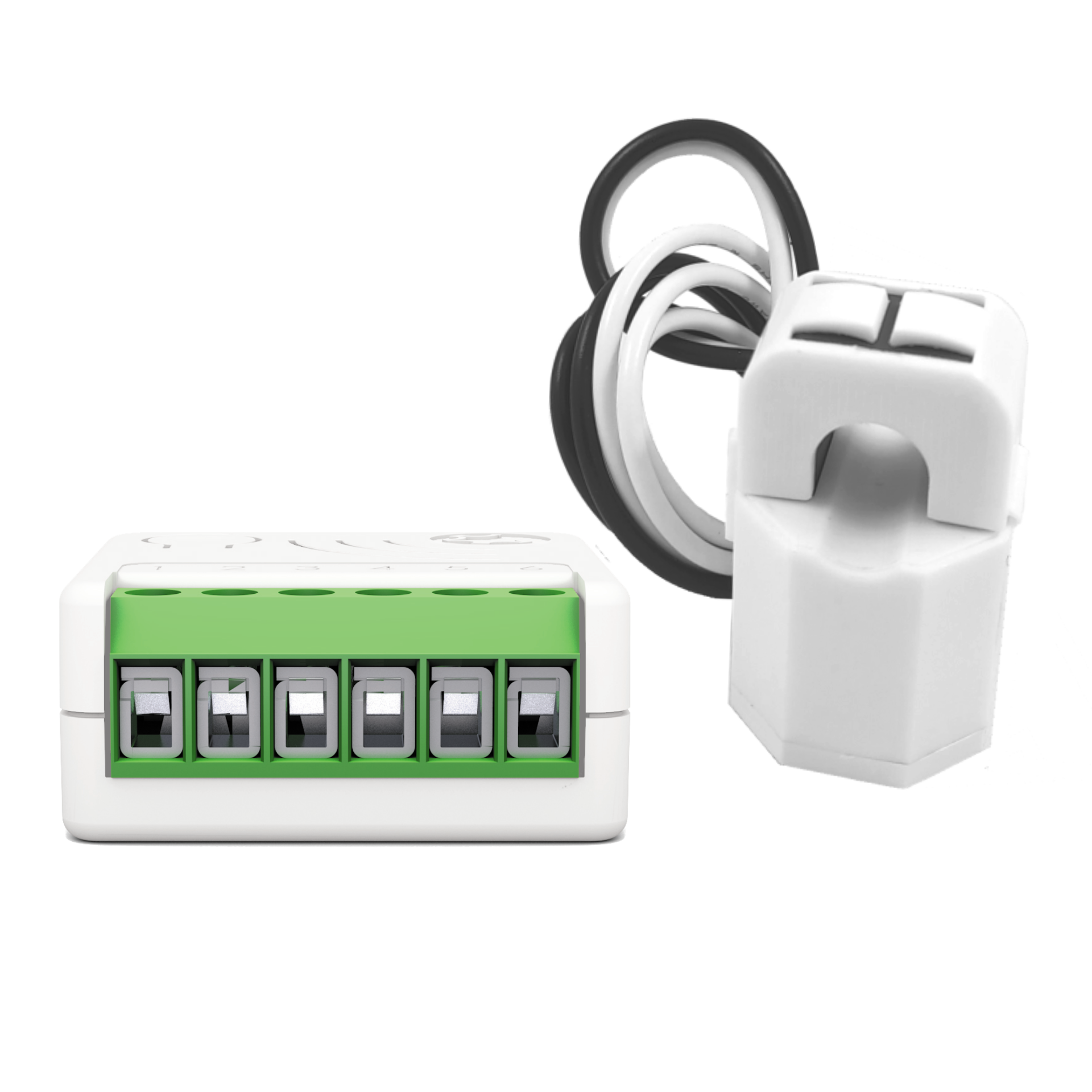

The device is a bi-directional meter capable of measuring both the consumed and produced power, equipped with a relay that can be activated to initiate specific scenarios in relation to detected power levels. It is equipped with an external current transformer and can measure powers over 10 KW. Electrical measurements: Energy produced and consumed, Instant power, Voltage RMS, Current RMS, Power Factor, SPECIAL FEATURES - Active Energy-saving management Automatically connects and disconnects a specific load if the established threshold limit is exceeded, or supplies the required power, momentarily excluding non-priority loads. - Management and prevention of electrical faults Identifies malfunctions based on irregular consumption and to the maximum time of activity. - Electrical overload management Notifies or disconnects non-priority loads in the eventuality of system overloads. - Timer Management The device has a timer that can be configured to turn ON and/or OFF the local relay. - Offline setup Mode A unique feature that allows to configure some parameters without using any user interface. - Zero Crossing Equipped with contact protection technology (Zero Crossing) which reduces the electrical stress on the relay contacts and ensures a longer life. The open / closed switching of the device always occurs when the instantaneous value of voltage is 0. META Energy Driven Switch C 7 boasts the lowest energy consumption on the market. This device is a security enabled Z-Wave Plus™ product. Power Supply: 110 - 230 VAC±10% 50/60 Hz Maximum Load on Relay: 3750 VA – 250VAC – 15 A Extremely small size: 37x37x17 mm New Z-Wave™ serie 700, SmartStart and S2 security

Brand

Cherubini

Product Identifier

A510086

Product Line

Z-Wave Product

OEM Version

HW: 01 FW: 07.00

Hardware Platform

ZGM130S037HGN2 / ZGM130S037HGN1

Z-Wave Version

7.16.3

Library Type

END_NODE_ENHANCED_232

Device Type

Meter Sensor DT

Role Type

ROLE_TYPE_SLAVE_ALWAYS_ON

Manufacturer ID

0x0149

Product Type ID

0x0004

Product ID

0x0009

User Icon

0x1000

Installer Icon

0x1000

Frequency Plans

EU: 869.85MHz, 868.40MHz

Categories

Energy Meters

Countries / Regions

Algeria, Bahrain, Cyprus, Moldova

Supported Command Classes

S2 Classes

S2_AUTHENTICATED, S2_UNAUTHENTICATED

Documents

Association Groups

Configuration Parameters

Parameter Number	Name	Description	Format	Size	Default Value
23	STARTUP_OUT	Define the output level on startup (0: OFF, 1: ON, 2: Previous status)	2	1	0x00
31	OFF_TIMEOUT	Time in tenth of second after which the output will be switched Off. 0: OFF timer disabled	1	4	0x00000000
41	DOWN_POWER_LOCAL_CONTROL	The value used to control the integrated Relay in case of Down Power Event.(0: OFF, 1: ON)	2	1	0x01
42	METER_TYPE	Define how power value is treated (0: as is, 1: negative value 0, 2: positive value 0, 3: All positive, 4: All negative)	2	1	0x03
43	CT_TYPE	Define the Model of Current Transformer connected to the device (1: Standard Type, 2: Type2 version)	2	1	0x01
44	UP_POWER_REMOTE_CONTROL	The value used to control uP Power Group. (0-99: specific value, 100: ON)	1	1	0x00
45	DOWN_POWER_REMOTE_CONTROL	The value used to control Down Power Group. (0-99: specific value, 100: ON)	1	1	0x64
46	OVER_VOLTAGE_LIMIT	Define the Over Voltage Limit in tenth of volt	1	2	0x09E2
47	DOWN_VOLTAGE_LIMIT	Define the Down Voltage Limit in tenth of volt	1	2	0x0816
50	UP_POWER_LEVEL	Sets the level in Watts beyond which time of permanence above this level is calculated. 0: Up Power Event Disabled	1	4	0x00000000
51	UP_POWER_TYPE	Define if the Up Power is consumed or produced (0: consumed, 1: produced)	2	1	0x00
52	UP_POWER_FIRST_TIMEOUT	Define the time of permanence in seconds above the Up power level after which the First Up Power event occurs	1	2	0x001e
53	UP_POWER_NEXT_TIMEOUT	Define the time of permanence in seconds above the Up power level after which the Next Up Power event occurs	1	2	0x0005
54	DOWN_POWER_LEVEL	Sets the level in Watt beyond which time of permanence below this level is calculated. 0: Down Power Event Disabled	1	4	0x00000000
55	DOWN_POWER_TYPE	Define if the Down Power is consumed or produced (0: consumed, 1: produced)	2	1	0x00
56	DOWN_POWER_FIRST_TIMEOUT	Define the time of permanence in seconds below the Down Power level after which the first Down Power event occurs	1	2	0x001E
57	DOWN_POWER_NEXT_TIMEOUT	Define the time of permanence in seconds below the Down Power level after which the next Up Down event occurs	1	2	0x0005
58	PROTECTION_TIME	Define the minimum time is second after which an Up/Down Power Event can be trigger again	1	2	0x003c
71	METER_REPORT_MAX_DELAY	The Maximum Time in minute after which the next Meter sequence report will be sent	1	1	0x0A
75	METER_ISTANT_REPORT	The percentage change of Power from the last sent report that triggers a new meter report sequence	1	1	0x14
76	REPORT_CONFIG	Define which Report scale will be sent. (0:none, 1:Energy , 4:Power, 16:Voltage, 32:Current, 64:Power Factor)	3	1	0x75

Texts

ID	Description	Value
8	Where to find S2 DSK on product	Page 10 - S2 Secure inclusion- When adding META Serie 7 devices to a Z-Wave network with a controller supporting Security 2 Authenticated (S2), the PIN code of the Z-Wave Device Specific Key (DSK) is required.
1	Classic Inclusion	All META Serie 7 devices are compatible with all Z-Wave/Z-Wave Plus certified controllers. The devices support both the Network Wide Inclusion mechanism (which offers the ability to be included in a network, even if the device is not directly connected to the controller) and Normal Inclusion. By default, the inclusion procedure starts in Normal Inclusion mode and after a short timeout the procedure continues in Network Wide Inclusion mode that lasts for about 20 Seconds. Only a controller can add the device into the network. After activating the inclusion function by the controller, the device can be added by setting it in Learn Mode. Before including the device, the LED status indicator is solid RED. The adding of a device is executed by activating the adding procedure in the inclusion section of the controller interface and executing 1 or 3 click on the integrated button (the device is set in Learn Mode). As soon as the inclusion procedure initiates the LED indicator starts a sequence of GREEN-BLUE blinks. The device is included in the network when the LED status is OFF and the interview is completed.
2	Classic Exclusion	Only a controller can remove the device from the network. After activating the exclusion function by the controller, the device can be removed by setting it in Learn Mode. The procedure of exclusion can be activated by Removing a node from the Z-Wave network and executing 1 or 3 click on the integrated button; as soon as the exclusion initiates, the LED indicator starts a sequence of RED-BLUE blinks. The device is excluded from the network when the LED status indicator is solid RED and the App_status in the interface is OK.
5	Factory Reset Procedure	The device can be reset to the original factory settings with 6 consecutive clicks on the integrated button. After the reset is completed, the device will reboot and a RED solid led is showed. INFO: If the reset is performed while the device is still part of a network, it notifies the other devices that it has been removed (Device Reset Locally Notification).
6	Other Special Features	OTHER SPECIAL FEATURES Timer Management The device has a timer that can be configured to turn ON and/or OFF the local relay. The timer starts its counter after a relay commutation. Active Energy management Energy Driven Switch C 7 can implement an active energy saving policy by managing electric loads in order to maximize the self-consumption during the greater production period of a wind power or photovoltaic plant, optimizing the net metering and the energy saving. Refer to the configuration section for the parameter details. Overvoltage Protection The product can be configured to detect if the voltage remains within a range defined by the user, who can set an Overvoltage limit and a Down voltage limit. When the voltage values go out of the defined range, a notification is sent to the lifeline association group. Offline setup Mode The device has a unique feature that allows to configure some parameters without using any user interface. This feature enables the professional user to setup the main features of the device in the field even if the device is not included in a Z-Wave Network. When the device will be included in the network all these configuration parameters will be maintained.
