| Product Recognition | |
|---|
| Certification Number | ZC10-15080022 |
|---|

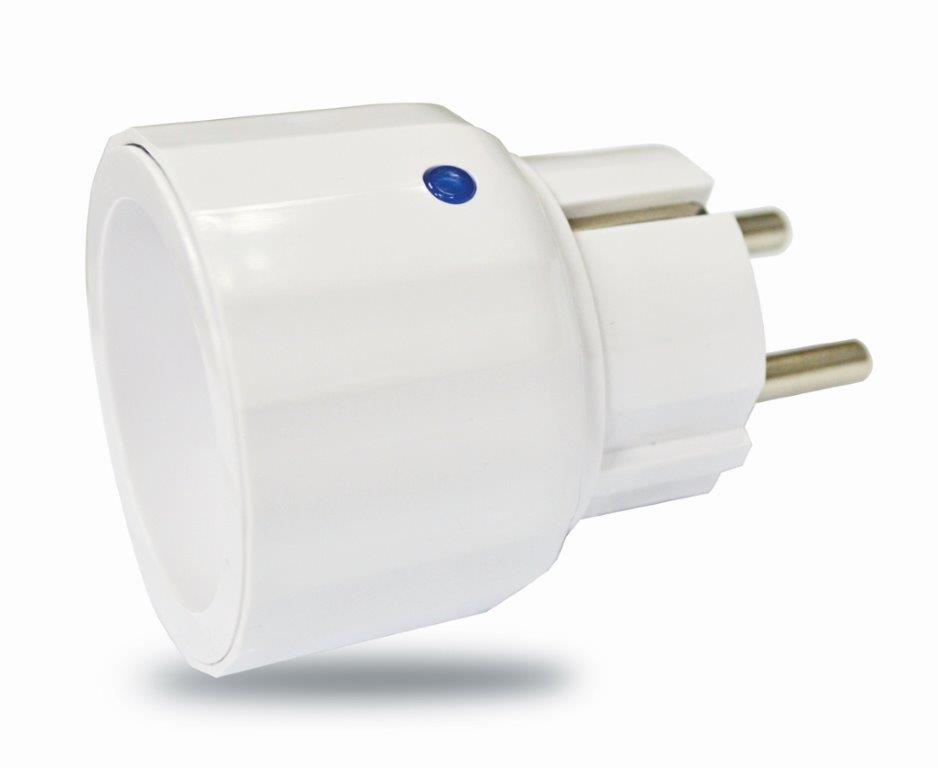

| Name | Metering Mini plug |
|---|
| Short Description | The Metering Plug is designed to control the on/off status of appliances load in your house. |
|---|
| Long Description | The Metering Plug is a Z-WaveTM enabled device which is fully compatible with any Z-WaveTM enabled network. Z-WaveTM enabled devices displaying the Z-WaveTM logo can also be used with it regardless of the manufacturer, and ours can also be used in other manufacturer’s Z-WaveTM enabled networks. Inclusion of this unit on other manufacturer’s Wireless Controller menu allows remote operation of the unit and the connected load.
The Metering Plug is designed to control the on/off status of appliances load in your house. For metering the unit can detect up to 10485.75kW*h and can support wattage, voltage, ampere, and PF detection. The unit can also detect overload upon which the unit will switch off relay and keep LED flashing until power is off and re-applied. At 220-240V voltage, this Plug can support up to 2500W resistive. |
|---|
| Brand | Everspring |
|---|
| Product Identifier | AN181-2 |
|---|
| OEM Version | 02 |
|---|
| Hardware Platform | SD3502 |
|---|
| Z-Wave Version | 6.51.02 |
|---|
| Library Type | SLAVE_ENHANCED_232 |
|---|
| Device Type | On/Off Power Switch |
|---|
| Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
| Manufacturer ID | 0x0060 |
|---|
| Product Type ID | 0x0004 |
|---|
| Product ID | 0x0006 |
|---|
| Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
| Categories | Energy Meters, All Lighting Devices, On/Off Switches/Devices |
|---|
| Countries / Regions | European Union |
|---|
| Controlled Command Classes | | Identifier | Name | Key | Version |
|---|
| COMMAND_CLASS_BASIC | Basic | 0x20 | 1 |
|
|---|
| Documents | |
|---|
| Association Groups | | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
| 2 | 4 | 0 | Basic Set,
On/Off control (Button1) | | 1 | 1 | 0 | Binary Switch Report,
Notification Report,
Device Reset Locally Notification,
Meter Report
,
Lifeline |
|
|---|
| Texts | | ID | Description | Value |
|---|
| 2 | Exclusion | 1. Put the Z-Wave Controller into exclusion mode.
2. Press the link key three times within 1.5 seconds to put the unit into exclusion mode. | | 5 | Factory Reset | 1. Press the link key three times within 1.5 seconds to put the unit into exclusion mode.
2. Within 1 second of step 1, press link key again and hold it until LED is off (about 5 seconds).
3. Node ID is excluded. The device reverts to factory default state and will be in auto-inclusion mode for 4 minutes.
4. Use this procedure only in the event that the network primary controller is missing, or otherwise inoperable. | | 1 | Inclusion |
1. Put the Z-Wave Controller into inclusion mode.
2. Press the link key three times within 1.5 seconds to put the unit into inclusion mode.
|
|
|---|
| Supports NWI | Yes |
|---|
| Supports Explorer Frames | Yes |
|---|
