Product Recognition
Certification Number	ZC10-14090006

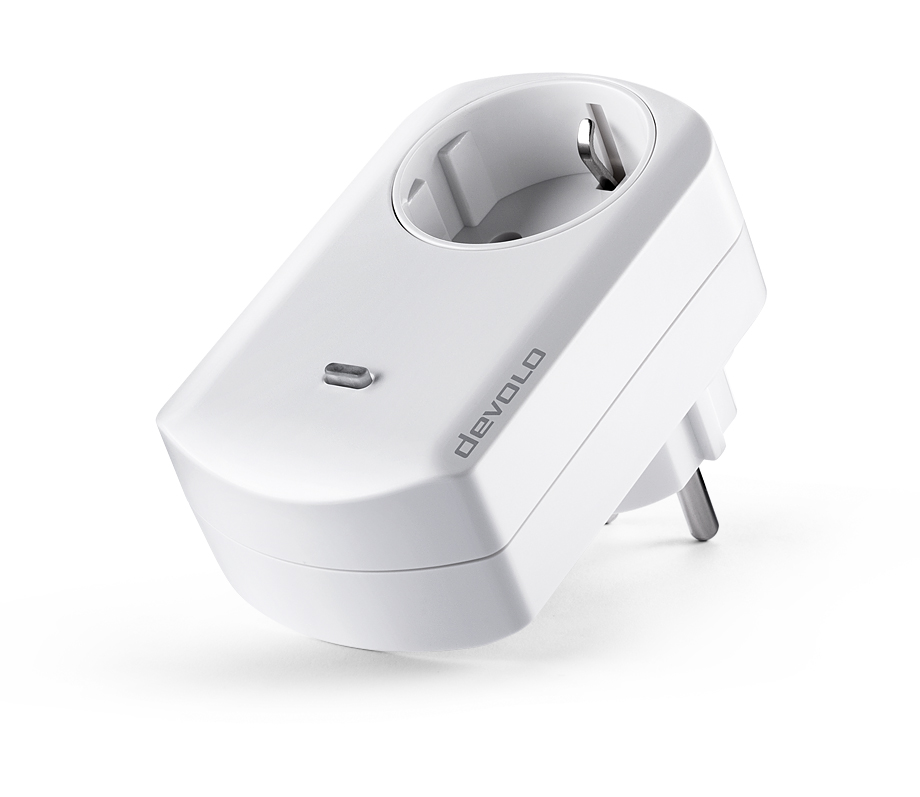

Name	Metering Plug
Short Description	This Metering Plug is a security enabled wireless powerplug, based on Z-Wave Plus technology. The device is able to detect current wattage and overload wattage of connected lights or appliances. When detecting overload state, the Plug will be disabled and its On/Off button will be locked. A powercycle will reset its overload status back to normal.
Long Description	This plug-in ON/OFF switch Home Control Metering Plug is a security enabled wireless switch, based on Z-Wave Plus technology. Z-Wave Plus™ enabled devices displaying the Z-Wave Plus™ logo can also be used with it regardless of the manufacturer, and can also be used in other manufacturer’s Z-Wave™ enabled networks. Remote On/Off control of the connected load is possible with other manufacturer’s wireless Controller. Each switch is designed to act as a repeater. Repeaters will re-transmit the RF signal to ensure that the signal is received by its intended destination by routing the signal around obstacles and radio dead spots. Because Home Control Metering Plug supports Security Command Class, it can be added with a Secured controller. Its functionality and supported command classes is identical when included as a secure and non-secure device. This plug-in ON/OFF switch is able to detect instance wattage (3000W/CE/CN,1500W/UL/TW/JP) and overload current (14.5A) of connected lights or appliances. When detecting overload state, the Switch will be disabled and its On/Off button will be lockout of which LED will flash quickly. However, unplug and re-connect the switch will reset its overload condition to normal status.
Brand	devolo
Product Identifier	MT02646
OEM Version	01
Hardware Platform	SD3502
Z-Wave Version	6.51.00
Library Type	SLAVE_ENHANCED_232
Device Type	On/Off Power Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x0175
Product Type ID	0x0001
Product ID	0x0011
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	Energy Meters, All Lighting Devices, On/Off Switches/Devices
Countries / Regions	European Union
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual PAN11-1B manual-20140816.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 1 0 Z-Wave Plus Lifeline
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 2 KWH Meter Report Period: This parameter controls the frequency at which the kWh value of the meter is reported to the node in association group 1. This setting is in units of 10 minutes. The maximum interval to report its Accumulated Power Consumption (KW/h) is 227.55 days (10min*32767/1440=227.55 days). 0 2 0 0 6 From To Description 1 32767 6*10 min=1 hour 0 0 Disable automatic interval meter kWh reporting. 7 LED indication mode This parameter determines the state of the LED display. 0 1 0 0 1 From To Description 1 1 The LED follows the state of the switch. 2 2 Night Mode - When the switch is On, the LED is Off, and when the switch is Off, the LED is On. 3 3 Flash Mode - When the state of the switch changes, the LED will be on for one second and then will turn off. 8 Auto off timer Automatic Shut-Off Setting. This parameter determines the amount of time before the switch is automatically turned off after it has been turned on. 0 1 0 0 0 From To Description 1 32767 1s ~ 32767s for automatically turning off 0 0 Disable the auto off function 6 Mode of switch off function This configuration parameter determines how the switch will respond to a received SWITCH OFF command. 0 1 0 0 1 From To Description 0 0 SWITCH OFF commands received are ignored. 1 1 SWITCH OFF commands received are honored. 1 Watt Meter Report Period This configuration parameter determines how often meter reporting of instantaneous watt usage is reported automatically. Each unit is 5 seconds. The maximum interval to report its instant power consumption is 45 hours (5s*32767/3600=45hr). 0 2 0 0 720 From To Description 1 32767 Enable automatic interval reporting with an interval of 5 * the value. 0 0 Disable automatic interval meter reporting of Watts 5 Restore switch state mode Whenever the AC power return from lost, Home Control Metering Plug will restore the switch state which could be SWITCH OFF、LAST SWITCH STATE、SWITCH ON. The default setting is LAST SWITCH STATE. 0 1 0 0 1 From To Description 0 0 Upon the return of AC power, the switch will remain Off. 1 1 Upon the return of AC power, the switch will return to the state it was in when the power was turned off. 2 2 Upon the return of AC power, the switch will turn On. 4 Threshold of KWh for Load Caution This is a warning when the KWh of load over the preset threshold value, If the setting value is 10000, when the Accumulated Power Consumption of Relay1 over this value, Home Control Metering Plug will send KWH meter report to warn the Group1 node, minimum value is 1KWh and default value is 10000 kWh. 0 2 0 0 10000 From To Description 1 10000 Enable automatic warning when the accumulated kWh power consumption exceeds the setting value from 1KWh ~ 10000KWh. 0 0 Disable kWh Load Caution Reporting 9 RF off command mode This parameter determines how the switch responds to the receipt of a SWITCH_ALL_OFF command. 0 1 0 0 0 From To Description 0 0 When SWITCH ALL OFF is received, the MT02646 turns Off. 1 1 When SWITCH ALL OFF is received, the MT02646 ignores the command and does nothing. 2 2 When SWITCH ALL OFF is received, the MT02646 will turn On if it is Off, and will turn Off if it is On. 3 3 When SWITCH ALL OFF is received, the MT02646 turns On. 3 Threshold of current for Load Caution This is a warning when the current of load over the preset threshold value, if the setting value is 1300, when the load current of Relay1 over this value, Home Control Metering Plug will send current meter report to warn the Group1 node, the Range of the setting value is from 10 to 1300,and the default value is 1300. 0 2 0 0 1300 From To Description 10 1300 1300*0.01A = 13A
Texts	ID Description Value 1 Inclusion 1. Put your Z-Wave controller into inclusion mode by following the instructions provided by the controller manufacturer. 2. Pressing On/Off button three times within 2 seconds will enter inclusion mode on the switch. 2 Exclusion 1. Put your Z-Wave controller into exclusion mode by following the instructions provided by the controller manufacturer. 2. Pressing On/Off button three times within 2 seconds will enter exclusion mode on the switch. 5 Factory Reset (Use this procedure only in the event that the primary controller is lost or otherwise inoperable.) 1. Pressing On/Off button three times within 2 seconds will enter inclusion mode on the switch. 2. Within 1 second, press On/Off button again for 5 seconds.
Supports NWI	Yes
Supports Explorer Frames	Yes
