Product Recognition | |
|---|---|
Certification Number | ZC10-18086201 |

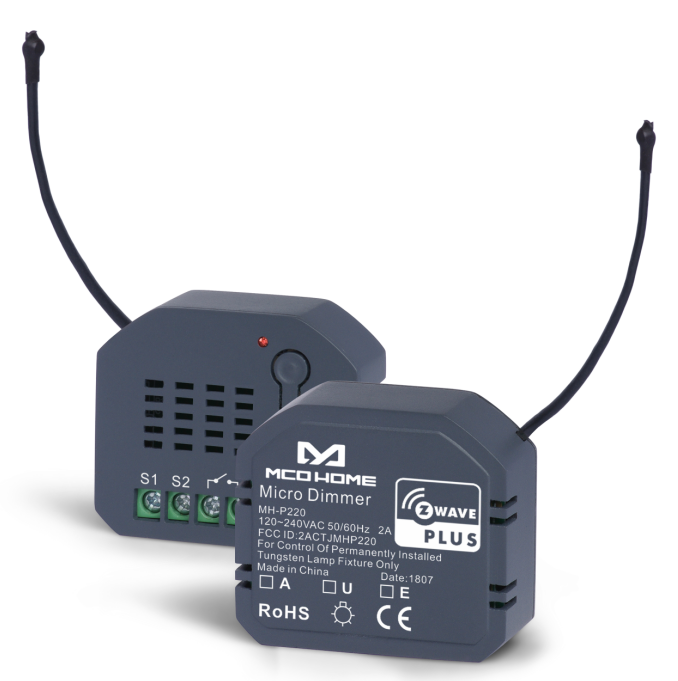

Name | Micro Dimmer |
Short Description | Micro Dimmer is a Z-Wave Plus enabled in-wall module which can be wired with a wall switch panel for dimming purpose. |
Long Description | This in-wall module is with compact design as well as stable performance, which can suit for any of the installation box and various operation situation. It supports basic command class, and also can act as repeater regardless of vendor to increase reliability of the network. |
Brand | MCO Home |
Product Identifier | MH-P220 |
OEM Version | HW: 255 FW: 3.02 |
Hardware Platform | ZM5202 |
Z-Wave Version | 6.71.03 |
Library Type | SLAVE_ENHANCED_232 |
Device Type | Light Dimmer Switch |
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
Manufacturer ID | 0x015F |
Product Type ID | 0x220A |
Product ID | 0x5101 |
User Icon | 0x0600 |
Installer Icon | 0x0600 |
Frequency Plans | US: 916.00MHz, 908.40MHz |
Categories | All Lighting Devices, Dimming Lighting Devices |
Countries / Regions | United States of America |
Supported Command Classes | |
S2 Classes | S2_UNAUTHENTICATED |
Documents | |
Features | |
Association Groups | |
Configuration Parameters | |
Texts | |
Supports NWI | Yes |
Supports Explorer Frames | Yes |
Radio Range Z-Wave (m) | 40 |
