Certification Number	ZC10-16075151

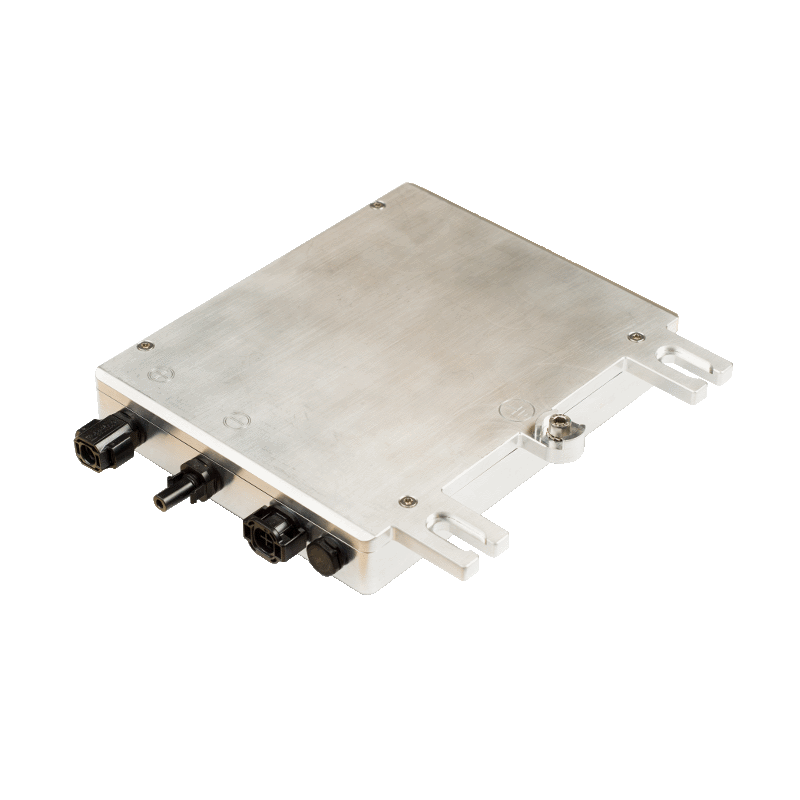

Name	Micro Inverter
Short Description	A device that measures information gathered on a single solar panel.
Long Description	The advantage of micro inverters compared to string inverters is that they can measure single solar panels which is more efficient. The possible loss will be reduced to a minimum. The Micro Inverter can measure information such as energy, voltage, current and temperature from a single solar panel. In addition, it is possible to monitor the (hardware) state of the product on the base of multiple error codes.
Brand	Autarco
Product Identifier	80825401
OEM Version	HW: 10 FW: 1.01
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	SLAVE_ENHANCED_232
Device Type	Other
Role Type	ROLE_TYPE_SLAVE_SLEEPING_REPORTING
Manufacturer ID	0x008A
Product Type ID	0x0036
Product ID	0x0100
User Icon	0x1000
Installer Icon	0x1000
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	Energy Meters
Countries / Regions	European Union
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual Quickstart + Technical Manual_Micro_Inverter_0_5.pdf
Features	Feature Values Firmware Updatable Value Updatable by Professional/Technician IP (Ingress Protection) Rated Switch Load Capacity Watts Value 300 Sensors Value Air Temperature Supported Meter Type Value Electric Energy
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 3 1 0 The node associated in this group will receive the following messages unsolicited - METER_REPORT All reports in this association group are reported with the MULTI_CHANNEL_ENCAPSULATION with source end point 2. A destination end point can be associated using the MULTI_CHANNEL_ASSOCIATION_SET command. 1 1 0 Z-Wave Plus Lifeline The node associated in this group will receive the following messages unsolicited - METER_REPORT - SENSOR_MULTILEVEL_REPORT - NOTIFICATION_REPORT - DEVICE_RESET_LOCALLY_NOTIFICATION 2 1 0 The node associated in this group will receive the following messages unsolicited - METER_REPORT All reports in this association group are reported with the MULTI_CHANNEL_ENCAPSULATION with source end point 1. A destination end point can be associated using the MULTI_CHANNEL_ASSOCIATION_SET command.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 3 Z-Wave send timeout Set the Z-Wave send timeout that a certain value can’t be reported. This doesn’t mean that there is no Z-Wave transmission at all. It means that that particular value (e.g. temperature) is not reported (unsolicited) for the configured value time. 0 1 0 0 60 From To Description 0 0 disable all unsolicited reporting. 1 255 Value > 0: timeout (s) = ((Value * 5) * cfg param 2) / 10 (Example: ((24 * 5) * 5) / 10 = 60 seconds) 6 Enable unsolicited CRC Configure if any unsolicited message are sent using the CRC command encapsulation. 0 1 0 0 2 From To Description 0 1 Disable unsolicited CRC. 3 255 Disable unsolicited CRC. 2 2 Enable unsolicited CRC. 71 Unsolicited Report conditions: VDC The requirements that a value is reported unsolicited.If both watt and % requirement differ from previous sent value, a new unsolicited value is sent. 0 4 0 0 256020 From To Description -2147483647 2147483647 BYTE 0 (LSB): Percentage (%) BYTE 1 – BYTE 3: Absolute value (watt) 75 Unsolicited Report conditions: Temperature The requirements that a value is reported unsolicited.If both watt and % requirement differ from previous sent value, a new unsolicited value is sent. 0 4 0 0 256 From To Description -2147483647 2147483647 BYTE 0 (LSB): Percentage (%) BYTE 1 – BYTE 3: Absolute value (watt) 76 Unsolicited Report conditions: kWh AC The requirements that a value is reported unsolicited.If both watt and % requirement differ from previous sent value, a new unsolicited value is sent. 0 4 0 0 2560 From To Description -2147483647 2147483647 BYTE 0 (LSB): Percentage (%) BYTE 1 – BYTE 3: Absolute value (watt) 72 Unsolicited Report conditions: IDC The requirements that a value is reported unsolicited.If both watt and % requirement differ from previous sent value, a new unsolicited value is sent. 0 4 0 0 256020 From To Description -2147483647 2147483647 BYTE 0 (LSB): Percentage (%) BYTE 1 – BYTE 3: Absolute value (watt) 73 Unsolicited Report conditions: PDC The requirements that a value is reported unsolicited.If both watt and % requirement differ from previous sent value, a new unsolicited value is sent. 0 4 0 0 -1734967276 From To Description -2147483647 2147483647 BYTE 0 (LSB): Percentage (%) BYTE 1 – BYTE 3: Absolute value (watt) 74 Unsolicited Report conditions: Energy AC The requirements that a value is reported unsolicited.If both watt and % requirement differ from previous sent value, a new unsolicited value is sent. 0 4 0 0 -1734967276 From To Description -2147483647 2147483647 BYTE 0 (LSB): Percentage (%) BYTE 1 – BYTE 3: Absolute value (watt) 78 Unsolicited Report conditions: Error The requirements that a value is reported unsolicited.If both watt and % requirement differ from previous sent value, a new unsolicited value is sent. 0 4 0 0 256 From To Description -2147483647 2147483647 BYTE 0 (LSB): Percentage (%) BYTE 1 – BYTE 3: Absolute value (watt) 1 Set to default Set all config values to default values (factory settings). All values (0x00 – 0xFF) except for 0xAA or 0x55 can be used to default all the parameters. 0 1 0 0 170 From To Description 0 255 Set all config values to default values (factory settings). 2 Request frequency Set the request frequency (in time) that the data is synchronized with the micro inverter hardware. 0 1 0 0 5 From To Description 1 255 The value * 100 ms with a range from 100 to 25.500 ms
Texts	ID Description Value 2 Exclusion Press and hold the push button (inside the housing) for 2 seconds and release it to start the remove mode. 1 Inclusion Caution: Risk of fatal injury from electric current. Make sure you are qualified to install this product. - Adding can be done 2 different ways: 1. Startup the Micro Inverter by applying its power. The Add mode will go on for circa 30 minutes. 2. If the Micro Inverter is already mounted (and therefore provided of power) press and hold the push button (inside the housing) for 2 seconds and release it to start the add mode. 5 Factory Reset Start the remove mode. During the remove mode press the button for 4 times within 1,5 seconds. Please only use this feature when the primary controller is missing. 4 Device Wake-Up Press and hold the pushbutton for 4 seconds to send a WAKE_UP_NOTIFICATION.
Supported / Controlled Meter Types	Meter Type Rate Type Description Electric meter Import Electric Meter Consumption
Supported Multilevel Sensors	Multilevel Sensor Type Air temperature
Supports NWI	Yes
Supports Explorer Frames	Yes
