Certification Number	ZC10-15110012

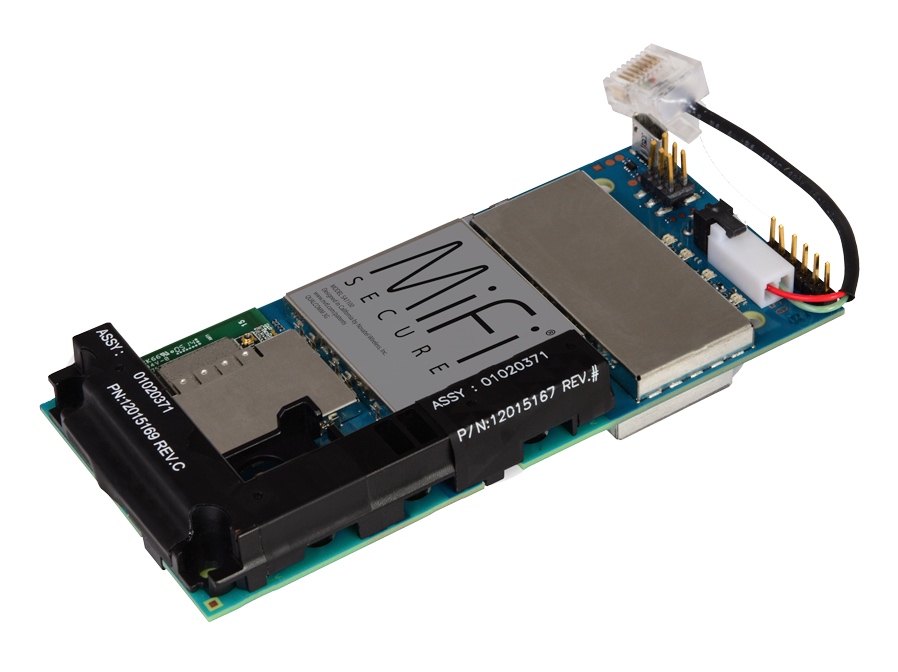

Name	MiFi Secure
Short Description	3G and Home Automation Communication Module
Long Description	A secure, connected home doesn’t have to be a complex project and it should be future proof. In conjunction with Icontrol Networks, Novatel Wireless has developed a simple approach for security dealers and providers with the MiFi Secure. Designed for simplicity, the MiFi Secure SA 1100 communication module fits easily inside Simon XT/XTi security panels for an instant 3G upgrade and enables the connected home leveraging the Icontrol One Interactive Security and Home Automation platform.
Brand	Novatel Wireless
Product Identifier	SA 1100
OEM Version	1
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	CONTROLLER_STATIC
Device Type	Gateway
Role Type	ROLE_TYPE_CONTROLLER_CENTRAL_STATIC
Manufacturer ID	0x0106
Product Type ID	0x0002
Product ID	0x0001
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	All Controllers, Security Systems
Countries / Regions	United States of America
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_SENSOR_BINARY Sensor Binary 0x30 1 COMMAND_CLASS_ASSOCIATION Association 0x85 1 COMMAND_CLASS_SWITCH_MULTILEVEL Switch Multilevel 0x26 1 COMMAND_CLASS_ASSOCIATION_GROUP_INFORMATION Association Group Information V1 0x59 0 COMMAND_CLASS_DOOR_LOCK Door Lock 0x62 1 COMMAND_CLASS_NO_OPERATION No Operation 0x00 1 COMMAND_CLASS_THERMOSTAT_FAN_MODE Thermostat Fan Mode 0x44 1 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION Multi-Channel Association V1 0x8E 0 COMMAND_CLASS_MULTI_CHANNEL Multi-Channel V1 0x60 0 COMMAND_CLASS_CONTROLLER_REPLICATION Controller Replication 0x21 1 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_WAKE_UP Wake Up 0x84 1 COMMAND_CLASS_THERMOSTAT_OPERATING_STATE Thermostat Operating State 0x42 1 COMMAND_CLASS_THERMOSTAT_MODE Thermostat Mode 0x40 1 COMMAND_CLASS_SENSOR_MULTILEVEL Sensor Multilevel 0x31 1 COMMAND_CLASS_SWITCH_BINARY Switch Binary 0x25 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_CRC_16_ENCAP CRC16 Encapsulation 0x56 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_ZWAVEPLUS_INFO Z-Wave Plus Info 0x5E 1 COMMAND_CLASS_BARRIER_OPERATOR Barrier Operator 0x66 1 COMMAND_CLASS_NOTIFICATION Notification V1 0x71 0 COMMAND_CLASS_THERMOSTAT_SETPOINT Thermostat Setpoint 0x43 1 COMMAND_CLASS_MANUFACTURER_SPECIFIC Manufacturer Specific 0x72 1 COMMAND_CLASS_VERSION Version 0x86 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual Activation_Guide_SimonXT_Cellular_Only_13005.22-7.5.0-3302015_0.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 1 0 Lifeline. On a reset of the controller, the Device Reset Locally command is sent.
Texts	ID Description Value 23 Controller Inclusion To include another Z-Wave product, log into the Icontrol user interface and select ""Manage Devices"". Then select ""Z-Wave"". From the Z-Wave screen, select ""Add Z-Wave"". Perform the necessary steps on the targeted Z-Wave device to add it to the system. 24 Controller Exclusion To exclude another Z-Wave product, log into the Icontrol user interface and select ""Manage Devices"". Then select ""Z-Wave"". From the Z-Wave screen, select ""Reset"". Perform the necessary steps on the targeted Z-Wave device to exclude it from the system. 5 Factory Reset To reset the MiFi Secure to factory defaults, push and hold the ""Reset"" button for at least 15 seconds (or until all LED's begin flashing simultaneously). Note: resetting your MiFi Secure will remove it and all associated devices from your Icontrol system, in addition to clearing all communication settings.
Supports NWI	Yes
Supports Explorer Frames	Yes
