Product Recognition
Certification Number	ZC10-16035015

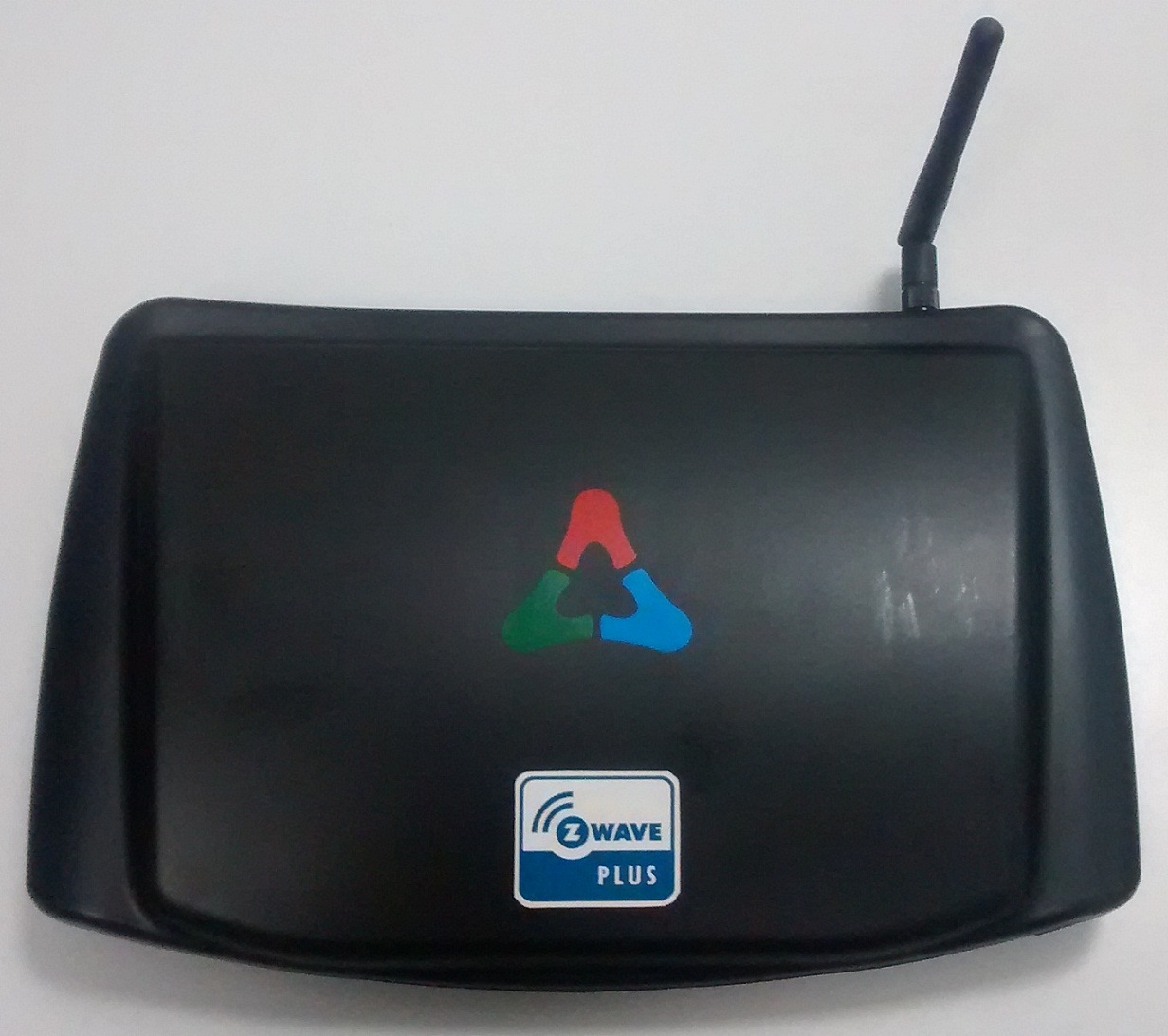

Name	Milan Infoway
Short Description	The Milan Infoway has a powerful processor that can enable real-time control of devices.
Long Description	The Milan Infoway is Milanity's information gateway that makes people's life secure, convenient, enjoyable and connected. This cost-effective Infoway is primarily suited to the integration of wireless devices such as for security, AV and lighting control applications.
Brand	Milan
Product Identifier	NLMN11
OEM Version	HW: 8 FW: 1.21
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	CONTROLLER_STATIC
Device Type	Central Controller
Role Type	ROLE_TYPE_CONTROLLER_CENTRAL_STATIC
Manufacturer ID	0x0238
Product Type ID	0x0003
Product ID	0x0004
User Icon	0x0100
Installer Icon	0x0100
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	All Controllers, Gateway Controller
Countries / Regions	European Union
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_SENSOR_MULTILEVEL_V2 Sensor Multilevel V2 0x31 2 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_THERMOSTAT_OPERATING_STATE_V2 Thermostat Operating State V2 0x42 2 COMMAND_CLASS_DOOR_LOCK_V2 Door Lock V2 0x62 2 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 Multi-Channel Association V3 0x8E 3 COMMAND_CLASS_SWITCH_ALL Switch All 0x27 1 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_CRC_16_ENCAP CRC16 Encapsulation 0x56 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_THERMOSTAT_FAN_MODE_V3 Thermostat Fan Mode V3 0x44 3 COMMAND_CLASS_THERMOSTAT_FAN_STATE_V2 Thermostat Fan State V2 0x45 2 COMMAND_CLASS_THERMOSTAT_MODE_V3 Thermostat Mode V3 0x40 3 COMMAND_CLASS_THERMOSTAT_SETPOINT_V2 Thermostat Setpoint V2 0x43 2 COMMAND_CLASS_WAKE_UP_V2 Wake Up V2 0x84 2 COMMAND_CLASS_SWITCH_MULTILEVEL_V3 Switch Multilevel V3 0x26 3 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_MULTI_CHANNEL_V4 Multi-Channel V4 0x60 4 COMMAND_CLASS_CONFIGURATION_V2 Configuration V2 0x70 2 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2 COMMAND_CLASS_NOTIFICATION_V4 Notification V4 0x71 4
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual Milan Infoway Product Manual.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Z-Wave Plus Lifeline. Any changes in the controller when added to other controller will send status report to the primary controller and vise versa.
Texts	ID Description Value 23 Controller Inclusion If you want to include any Z-Wave product you have to press the ""ADD"" button in Milan Configuration software and Press the program button in the Z-Wave product which you want to include. Please refer Milan Configuration Guide for further details. 24 Controller Exclusion If you want to exclude any Z-Wave product you have to press the ""REMOVE"" button in Milan Configuration software and Press the program button in the Z-Wave product which you want to exclude. Please refer Milan Configuration Guide for further details. 3 Learn Mode (adding another controller) If you want to put the controller into Learn mode please press ""Learn Mode"" button in Milan Configuration software. Please refer Milan Configuration Guide for further details. 5 Factory Reset If you need to reset the controller to Factory Default, click on ""Settings"" and click on ""Network Management Basic"" and click on ""Controller Reset"" in Milan Infoway Configuration software. Please refer Milan Configuration Guide for further details.
Supports NWI	Yes
Supports Explorer Frames	Yes
