Certification Number	ZC10-16075155

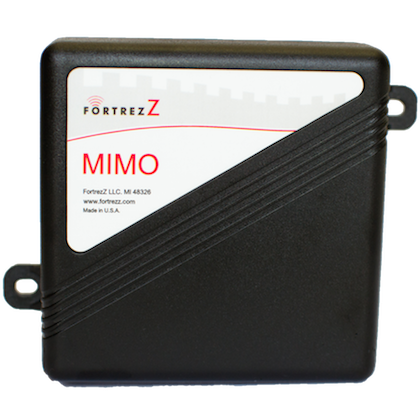

Name	MIMO2+
Short Description	MIMO2+ Multiple Input - Multiple Output Module is an interface / bridge module that has two voltage inputs and two dry contact relays.
Long Description	The MIMO2+ module provides two voltage inputs and two relay outputs (either can be wired normally open or normally closed). Z-Wave™ messages can be used to read the inputs and control the outputs. The inputs are very configurable for different trigger conditions and can even be mapped to control the outputs. The module includes a button for Z-Wave™ inclusion/exclusion and an LED for various status indications. The functionality of the SIG1 and SIG2 inputs is: - Analog Triggering: Various trigger conditions can be set for high-to-low and low-to-high transitions. This provides great flexibility for capturing digital or analog events in a wide variety of applications. The trigger status can be automatically sent to the controller. - Associations: Each input can be associated with up to two other Z-Wave™ devices, so that, for example, an associated device will automatically turn on (or off) based on the occurrence of a trigger event. Voltage Reporting: The analog input voltage levels can also be sent to the controller. The physical outputs are relays that are typically activated by Z-Wave™ commands. However, the user can override Z-Wave™ control by configuring the input trigger conditions to be mapped to the output relays via logical AND/OR functions.
Brand	FortrezZ LLC
Product Identifier	MIMO2+
OEM Version	HW: 5 FW: 2.08
Hardware Platform	ZM5202
Z-Wave Version	6.51.08
Library Type	SLAVE_ENHANCED_232
Device Type	Multilevel Sensor
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x0084
Product Type ID	0x0463
Product ID	0x0204
User Icon	0x0DFF
Installer Icon	0x0DFF
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	Sensors, On/Off Switches/Devices, Security Add-Ons
Countries / Regions	United States of America
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC Basic 0x20 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual MIMO2 Plus Manual and Tech Appendix 2016-07-29.pdf
Features	Feature Values Firmware Updatable Value Updatable by Consumer by RF Switch Load Capacity Current Value 10A / 24VDC (Relays) Switch Load Capacity Volt-Ampere Value 16V (Inputs / Signal), 24V (Outputs / Relays) Sensors Value Motion/No Motion (Binary) Open/Closed (Binary) Switch Type Value Dry Contact
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 2 0 Z-Wave Plus Lifeline 2 2 0 SIG1 (Basic Set) - Upon change of trigger 3 2 0 SIG2 (Basic Set) - Upon change of trigger
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 3 SIG 1 Multilevel Trigger Settings b7: Trigger Between Thresholds (1=true) b6: Periodic Sends (=0) or Send when Change-of-Trigger (=1) b5-b0: Periodic Send Interval for Lifeline (30s resolution, 0=no periodic sends) Reference technical appendix triggering notes for visual's. (Signed value in the range 0 to 255; convert values over 127 to a signed 1 byte value, or if your controller supports entering the value in hexadecimal you may use the hex value.) 0 1 0 0 -88 From To Description -128 127 Set this value to trigger between thresholds 4 SIG 1 Lower Threshold, High (must be less than Upper Threshold Low and greater than Lower Threshold Low) Reference technical appendix triggering notes for visual's. (Signed value in the range 0 to 255; convert values over 127 to a signed 1 byte value, or if your controller supports entering the value in hexadecimal you may use the hex value.) 0 1 0 0 -112 From To Description -128 127 Set this value to set the lower threshold high number 6 SIG 1 Upper Threshold, High SIG1 Upper Threshold, High Use this to set the upper threshold High number. Reference technical appendix triggering notes for visual's. (Signed value in the range 0 to 255; convert values over 127 to a signed 1 byte value, or if your controller supports entering the value in hexadecimal you may use the hex value.) 0 1 0 0 -1 From To Description -128 127 Set this to set the upper threshold, high number 9 SIG 2 Multilevel Trigger Settings b7: Trigger Between Thresholds (1=true) b6: Periodic Sends (=0) or Send when Change-of-Trigger (=1) b5-b0: Periodic Send Interval for Lifeline (30s resolution, 0=no periodic sends) Reference technical appendix triggering notes for visual's. (Signed value in the range 0 to 255; convert values over 127 to a signed 1 byte value, or if your controller supports entering the value in hexadecimal you may use the hex value.) 0 1 0 0 -88 From To Description -128 127 Set this value to trigger between thresholds 5 SIG 1 Lower Threshold, Low SIG 1 Lower Threshold, Low Reference technical appendix triggering notes for visual's. (Signed value in the range 0 to 255; convert values over 127 to a signed 1 byte value, or if your controller supports entering the value in hexadecimal you may use the hex value.) 0 1 0 0 -128 From To Description -128 127 Set this to set the lower threshold low number. 10 SIG 2 Lower Threshold, High (must be less than Upper Threshold Low and greater than Lower Threshold Low) Reference technical appendix triggering notes for visual's. (Signed value in the range 0 to 255; convert values over 127 to a signed 1 byte value, or if your controller supports entering the value in hexadecimal you may use the hex value.) 0 1 0 0 -112 From To Description -128 127 Set this value to set the lower threshold high number 1 Relay 1 Configuration This sets the configuration of Relay 1 to be latching, or to toggle back to Off/Open after a specified amount of time. (Signed value in the range 0 to 255; convert values over 127 to a signed 1 byte value, or if your controller supports entering the value in hexadecimal you may use the hex value.) 0 1 0 0 0 From To Description -128 127 Set this value to the amount of time in 100ms increments for the relay to remain closed/on before automatically returning to the open/off state. For example, a value of 2 = 0.2 Seconds. 0 0 The relay will remain latched in the position it is commanded to (open/off or closed/on) 2 Relay 2 Configuration This sets the configuration of Relay 2 to be latching, or to toggle back to Off/Open after a specified amount of time. (Signed value in the range 0 to 255; convert values over 127 to a signed 1 byte value, or if your controller supports entering the value in hexadecimal you may use the hex value.) 0 1 0 0 5 From To Description -128 127 Set this value to the amount of time in 100ms increments for the relay to remain closed/on before automatically returning to the open/off state. For example, a value of 2 = 0.2 Seconds. 0 0 The relay will remain latched in the position it is commanded to (open/off or closed/on) 7 SIG 1 Upper Threshold, Low (Must be greater than lower Threshold High and less than Upper Threshold High) Reference technical appendix triggering notes for visual's. (Signed value in the range 0 to 255; convert values over 127 to a signed 1 byte value, or if your controller supports entering the value in hexadecimal you may use the hex value.) 0 1 0 0 -2 From To Description -128 127 Set this to set the upper threshold low number 11 SIG 2 Lower Threshold, Low SIG 2 Lower Threshold, Low Reference technical appendix triggering notes for visual's. (Signed value in the range 0 to 255; convert values over 127 to a signed 1 byte value, or if your controller supports entering the value in hexadecimal you may use the hex value.) 0 1 0 0 -128 From To Description -128 127 Set this to set the lower threshold low number.
Texts	ID Description Value 1 Inclusion 1) Activate inclusion mode on your Z-wave controller. 2) Press the program button once. 3) LED will blink 2 times quickly to indicate ""in network"" status. 2 Exclusion 1) Activate exclusion mode on your Z-wave controller. 2) Press the program button once. 3) LED will blink 4 times quickly to indicate ""in network"" status. 6 Additional Special Features To configure Relay's for Momentary or Latched function, the configuration command class is used. Refer to Technical appendix document to instructions. This and all documents are available for download at fortrezz.com 5 Factory Reset Device Reset to Factory Defaults – Press and hold the program button for 15 seconds and then release. This can be done while the device is either in or out of a network. CAUTION – When this is done in-network, the device will no longer be in the network and all configurations and associations will be set to default. Please use this procedure only when your network primary controller is missing or otherwise inoperable.
Supported Multilevel Sensors	Multilevel Sensor Type 0x02
Supports NWI	Yes
Supports Explorer Frames	Yes
