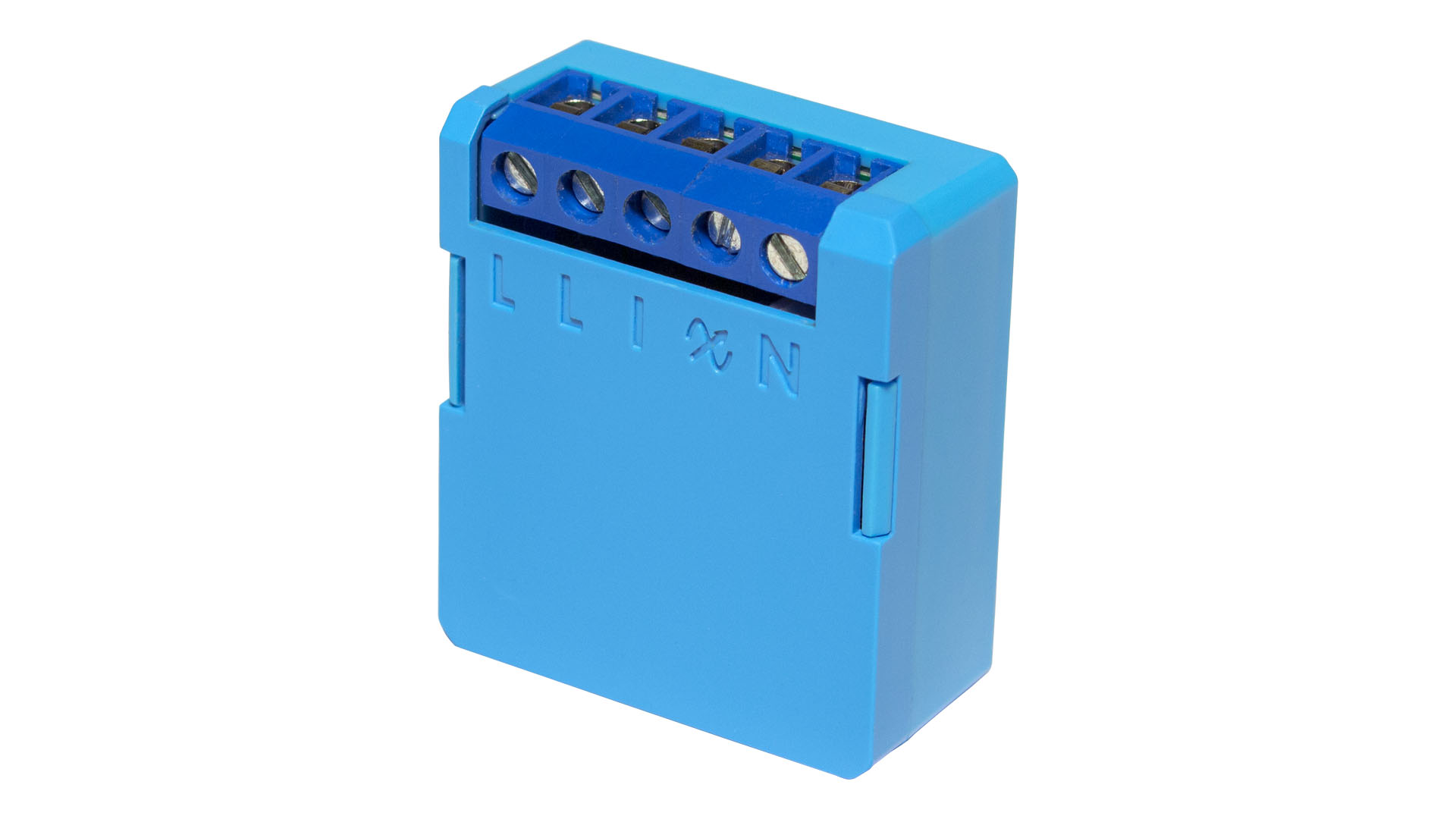

1 | Parameter no. 1 – In-wall Switch Type for Load ( ) to control terminal I | With this parameter, you can select between momentary and on/off toggle switch types. Values (size is 1-byte dec): • default value 0 • 0 - momentary • 1 - on/off toggle switch | 1 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 0 | momentary | 1 | 1 | on/off toggle switch |
|
5 | Parameter no. 5 – Working mode | With this parameter, you can change the device presentation on the user interface. Values (size is 1-byte dec): • default value 0 • 0 - Dimmer mode • 1 - Switch mode ⓘ NOTE: After parameter change, first exclude the device (without setting parameters to default value) then wait at least 30s before reinclusion. | 1 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 0 | Dimmer mode | 1 | 1 | Switch mode |
|
11 | Parameter no. 11 - Turn Load 1 ( ) Off Automatically with Timer | If Load ( ) is ON, you can schedule it to turn OFF automatically after a period of time defined in this parameter. The timer is reset to zero each time the device receives an ON or OFF command, either remotely (from the gateway (hub) or associated device) or locally from the switch. Values (size is 2-byte dec): • default value 0 • 0 - Auto OFF Disabled • 1 - 32536 = 1 - 32536 seconds - Auto OFF timer enabled for a given number of seconds. | 1 | 2 | 0 | 32536 | 0 | From | To | Description |
|---|
0 | 0 | Auto OFF Disabled | 1 | 32536 | Auto OFF timer enabled for a given number of seconds |
|
60 | Parameter no. 60 – Minimum dimming value | The value set in this parameter determines the minimum dimming value (the lowest value which can be set on the device, when, for example, dimming lights with wall switch or slider in the GUI (Gateway - hub)). Values (size is 1-byte dec): • default value 0 = 0 % (minimum dimming value) • 1- 98 = 1 % - 98 %, step is 1 %. Minimum dimming value is set by entering a value. ⓘ NOTE: The minimum level may not be higher than the maximum level! 0 % min. dimming value is defined by the Z-Wave multilevel device class. | 1 | 1 | 0 | 98 | 0 | From | To | Description |
|---|
0 | 0 | 0 % (minimum dimming value) | 1 | 98 | 1 % - 98 %, step is 1 %. Minimum dimming value is set by entering a value. |
|
71 | Parameter no. 71 – Calibration trigger | Choose when will be the calibration procedure triggered. Values (size is 1-byte dec): • default value 0 - calibration done after power cycle if module is excluded • 1 – calibration done after power cycle regardless of inclusion status • 2 – force calibration. Calibration will start immediately NOTE: For additional information check ‘MINI DIMMER CALIBRATION’ under chapter 11. | 1 | 1 | 0 | 2 | 0 | From | To | Description |
|---|
0 | 0 | calibration done after power cycle if module is excluded | 1 | 1 | calibration done after power cycle regardless of inclusion status | 2 | 2 | force calibration. Calibration will start immediately |
|
68 | Parameter no. 68 – Dimming duration | Choose the time during which the device will transition from the current value to the new target value. This parameter applies to the association group 3. Values (size is 1-byte dec): • default value 0 (dimming duration according to parameter 66) • 1 - 127 (from 1 to 127 seconds) ⓘ NOTE: Parameter is valid only in Dimmer mode. In Switch mode the parameter has no effect. | 1 | 1 | 0 | 127 | 0 | From | To | Description |
|---|
0 | 0 | (dimming duration according to parameter 66) | 1 | 127 | (from 1 to 127 seconds) ⓘ NOTE: Parameter is valid only in Dimmer mode. In Switch mode the parameter has no effect. |
|
61 | Parameter no. 61 – Maximum dimming value | The value set in this parameter determines the maximum dimming value (the highest value which can be set on the device, when, for example, dimming lights with wall switch or slider in the GUI (Gateway - hub)). Values (size is 1-byte dec): • default value 99 = 99 % (Maximum dimming value) • 2- 99 = 2 % - 99 %, step is 1 %. Maximum dimming value is set by entering a value. ⓘ NOTE: The maximum level may not be lower than the minimum level! 99% max. dimming value is defined by the Z-Wave multilevel device class. | 1 | 1 | 2 | 99 | 99 | From | To | Description |
|---|
99 | 99 | 99 % (Maximum dimming value) | 2 | 99 | 2 % - 99 %, step is 1 %. Maximum dimming value is set by entering a value. |
|
66 | Parameter no. 66 – Dimming time when key hold | Choose the time during which the Dimmer will move between the min. and max. dimming values during a continuous press of the push-button I1, by an associated device or through the UI controls (BasicSet, SwitchMultilevelSet). Values (size is 2-byte dec): • default value 3 = 3 s • 1-127 = 1 second – 127 seconds • 128 – 253 = 1 minute – 126 minutes | 1 | 2 | 1 | 253 | 3 | From | To | Description |
|---|
1 | 127 | 1 second – 127 seconds | 128 | 253 | 1 minute – 126 minutes |
|
70 | Parameter no. 70 - Overload safety switch | The function allows for turning off the controlled device in case of exceeding the defined power for more than 5s. Controlled device can be turned back on by input I1 or sending a control frame. Values (size is 2-byte dec): • default value 200 • 1 – 200 = 1 W – 200 W • 0 = function not active ⓘ NOTE: This functionality is not an overload safety protection, please check the technical specifications chapter for more details. In case of overload the following message will be send towards the controller: • COMMAND_CLASS_NOTIFICATION_V5 • The Alarm V1 type field set to 0x00 • Notification Type 0x08 and 0x08 (Overload detected) | 1 | 2 | 0 | 200 | 200 | From | To | Description |
|---|
1 | 200 | 1 W – 200 W | 0 | 0 | function not active |
|
67 | Parameter no. 67 – Ignore start level | Choose whether the device should use (or disregard) the start dimming level value. If the device is configured to use the start level, it should start the dimming process from the currently set dimming level. This parameter is used with association group 3. Values (size is 1-byte dec): • default value 0 • 0 – use the start level value • 1 - ignore the start level value ⓘ NOTE: Parameter is valid only in Dimmer mode. In Switch mode the parameter has no effect. | 1 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 0 | use the start level value | 1 | 1 | ignore the start level value |
|
65 | Parameter no. 65 – Dimming time when key pressed (soft on/off) | Choose the time during which the device will move between the min. and max. dimming values by a short press of the push-button I1. Values (size is 1-byte dec): • default value 1 = 1 s • 1 - 127 = 1 seconds- 127 seconds, step is 1 second | 1 | 1 | 1 | 127 | 1 | From | To | Description |
|---|
1 | 1 | 1 s | 1 | 127 | 1 seconds- 127 seconds, step is 1 second |
|
73 | Parameter no. 73 – Alarm/Notification events | This parameter defines the module behaviour in case it receives any Alarm/Notification events. Values (size is 1-byte dec): • default value 0 – function not active • 1 – turn ON • 2 – turn OFF • 3 – start blinking (output turns 1 s ON, and 1 s OFF) ⓘ NOTE: When value 3 is selected the default time interval of the blinking is 10 minutes. It can be stopped with a button press or sending a control frame. To adjust the time interval please refer to parameter 74 – Alarm/Notification time interval. | 1 | 1 | 0 | 3 | 0 | From | To | Description |
|---|
0 | 0 | default value 0 – function not active | 1 | 1 | turn ON | 2 | 2 | turn OFF | 3 | 3 | start blinking (output turns 1 s ON, and 1 s OFF) |
|
72 | Parameter no. 72 – Calibration status (read only) | Parameter no. 72 – Calibration status (read only) Whit this parameter you can check the calibration status. Values (size is 1-byte dec): • default value 2 – calibration failed • 1 – calibration was successful • 2 – calibration failed | 1 | 1 | 1 | 2 | 2 | From | To | Description |
|---|
1 | 1 | calibration was successful | 2 | 2 | calibration failed |
|
74 | Parameter no. 74 – Alarm/Notification time interval (dependant on parameter 73) | This parameter defines the time interval of the blinking state, once the module receives an alarm/notification event. Minimum step increase is 1 minute. Values (size is 1-byte dec): • default value 10 = 10 minutes • 1 – 125 = 1 -125 minutes ⓘ NOTE: This parameter does not have any effect if parameter 73 is not set to value 3. | 1 | 1 | 1 | 125 | 10 | From | To | Description |
|---|
1 | 125 | 1 -125 minutes | 10 | 10 | 10 minutes |
|
