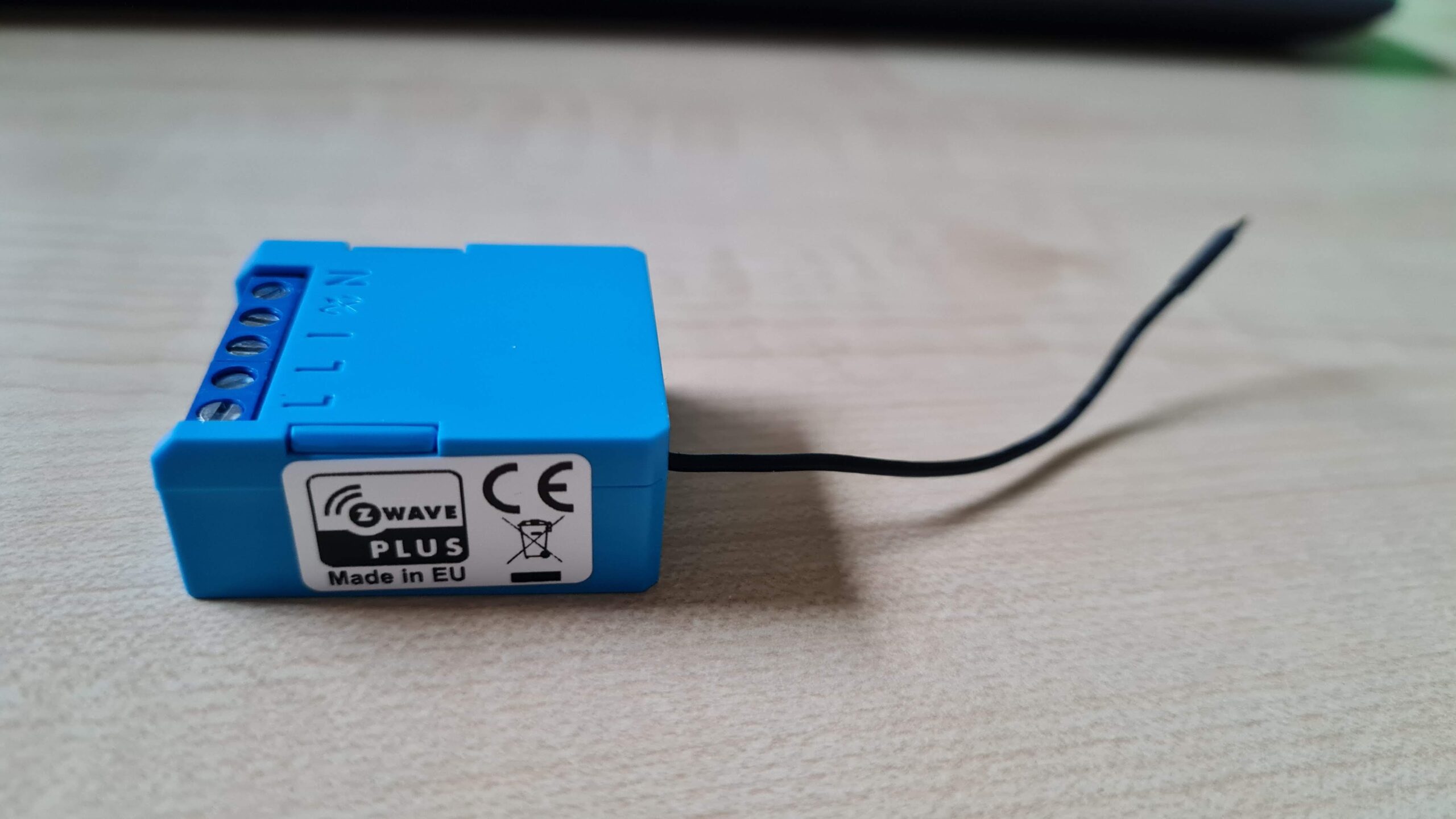

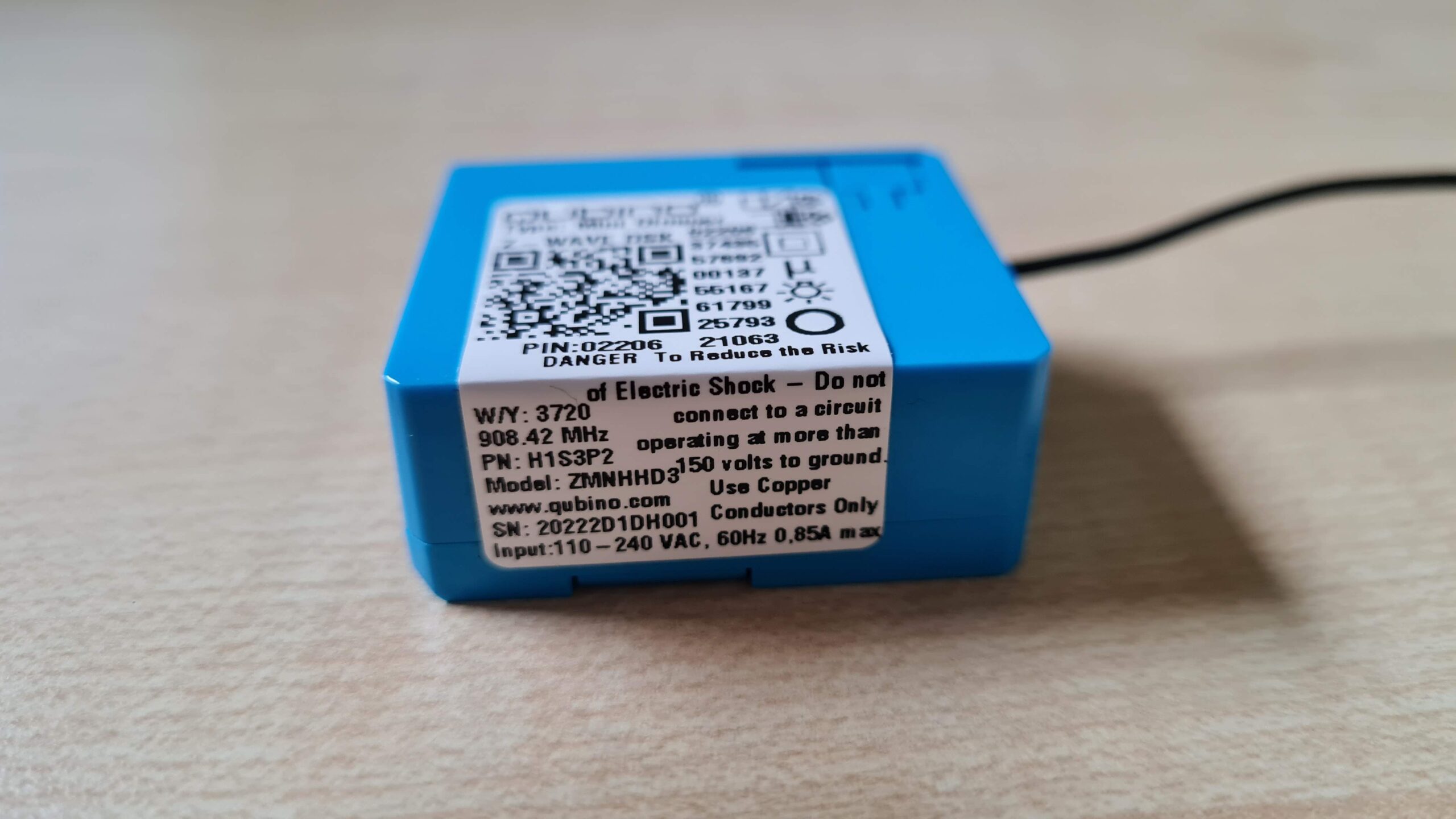

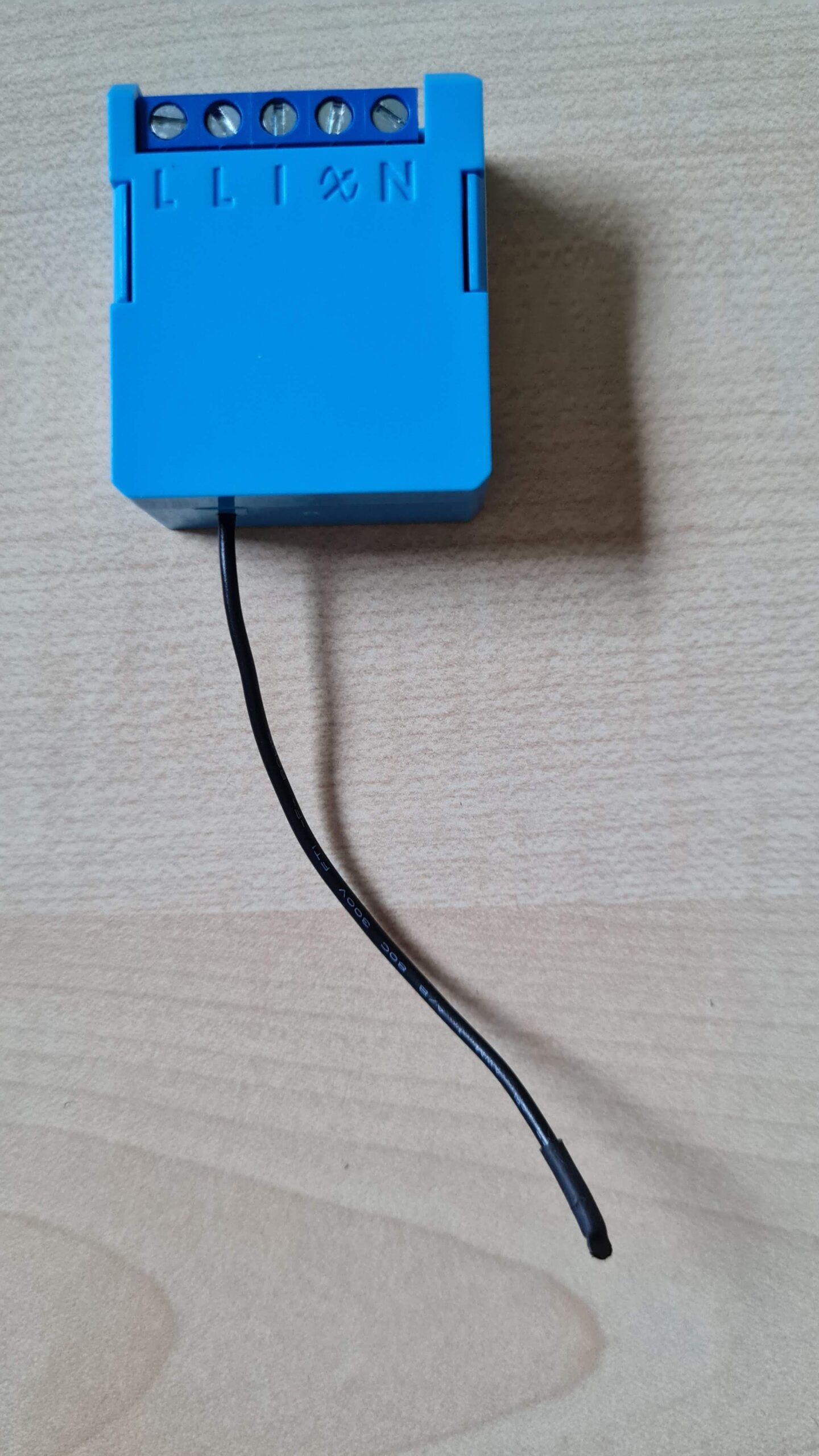

65 | Dimming time when key pressed (soft on/off) | Choose the time during which the device will move between the min. and max. dimming values by a short press of the push-button I1.
| 0 | 1 | 1 | 127 | 1 | From | To | Description |
|---|
1 | 1 | 1 second | 1 | 127 | 1 seconds- 127 seconds, step is 1 second |
|
66 | Dimming time when key hold | Choose the time during which the Dimmer will move between the min. and max. dimming values during a continuous press of the push-button I1, by an associated device or through the UI controls (BasicSet, SwitchMultilevelSet). | 0 | 2 | 1 | 253 | 3 | From | To | Description |
|---|
1 | 127 | 1 second – 127 seconds | 128 | 253 | 1 minute – 126 minutes |
|
1 | In-wall Switch Type for Load to control I1 | With this parameter, you can select between push-button (momentary) and on/off toggle switch types. | 0 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 0 | push-button (momentary) | 1 | 1 | on/off toggle switch |
|
6 | Load type | With this parameter, you select the load type, dimmable or non dimmable. Device operating in dimmable mode on non dimmable load can lead to device or load malfunction. For non dimmable loads par. 6 must be set to 1.
ⓘ NOTE: When par.6 set to 1 (non dimmable load) values of listed parameters will be ingnored (par.60 min. dimming value, par.61 max. dimming value, par.65 Dimm. Time when key presed par.66 dimm. Time when key hold, par.21 Double click function
ⓘ NOTE: If the bulb is dimmable or non dimmable (generally valid for LED) is shown on the bulb itself or on packaging.
ⓘ NOTE: Parameter 6 is replacing parameter 5. Present in previous version.
| 0 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 0 | Dimmable load | 1 | 1 | Non dimmable load |
|
11 | Turn Load 1 Off Automatically with Timer | If Load is ON, you can schedule it to turn OFF automatically after a period of time defined in this parameter. The timer is reset to zero each time the device receives an ON or OFF command, either remotely (from the gateway (hub) or associated device) or locally from the switch. | 0 | 2 | 0 | 32536 | 0 | From | To | Description |
|---|
0 | 0 | Auto OFF Disabled | 1 | 32536 | 1 - 32536 seconds - Auto OFF timer enabled for a given amount of seconds |
|
61 | Maximum dimming value | The value set in this parameter determines the maximum dimming value (the highest value which can be set on the device, when, for example, dimming lights with wall switch or slider in the GUI (Gateway - hub))
ⓘ NOTE: The maximum level may not be lower than the minimum level! | 0 | 1 | 0 | 99 | 99 | From | To | Description |
|---|
1 | 99 | 2 % - 99 %, step is 1 %. Maximum dimming value is set by entering a value. |
|
67 | Ignore start level | Choose whether the device should use (or disregard) the start dimming level value. If the device is configured to use the start level, it should start the dimming process from the currently set dimming level. This parameter is used with association group 3.
NOTE: Parameter is valid only in Dimmer mode. In Switch mode the parameter has no effect. | 0 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 0 | use the start level value | 1 | 1 | ignore the start level value |
|
68 | Dimming duration | Choose the time during which the device will transition from the current value to the new target value. This parameter applies to the association group 3.
NOTE: Parameter is valid only in Dimmer mode. In Switch mode the parameter has no effect. | 0 | 1 | 0 | 127 | 0 | From | To | Description |
|---|
0 | 0 | dimming duration according to parameter 66 | 1 | 127 | from 1 to 127 seconds |
|
70 | Overload safety switch | The function allows for turning off the controlled device in case of exceeding the defined power for more than 5s. Controlled device can be turned back on by input I1 or sending a control frame.
ⓘ NOTE: This functionality is not an overload safety protection, please check the technical specifications chapter for more details.
In case of overload the following message will be send towards the controller:
• COMMAND_CLASS_NOTIFICATION_V5
• The Alarm V1 type field set to 0x00
• Notification Type 0x08 and 0x08 (Overload detected) | 0 | 2 | 0 | 200 | 200 | From | To | Description |
|---|
0 | 0 | function not active | 1 | 200 | 1W - 200W |
|
71 | Calibration trigger | Choose when will be the calibration procedure triggered. | 0 | 1 | 0 | 2 | 0 | From | To | Description |
|---|
1 | 1 | calibration done after power cycle regardless of inclusion status | 2 | 2 | force calibration. Calibration will start immediately |
|
72 | Calibration status (read only) | With this parameter you can check the calibration status. | 0 | 1 | 1 | 2 | 2 | From | To | Description |
|---|
1 | 1 | calibration was successful | 2 | 2 | calibration failed |
|
73 | Alarm/Notification events | This parameter defines the module behaviour in case it receives any Alarm/Notification events.
NOTE: When value 3 is selected the default time interval of the blinking is 10 minutes. It can be stopped with a button press or sending a control frame. To adjust the time interval please refer to parameter 74 – Alarm/Notification time interval. | 0 | 1 | 0 | 3 | 0 | From | To | Description |
|---|
1 | 1 | turn OFF | 2 | 2 | turn ON | 3 | 3 | start blinking (output turns 1s ON, and 1s OFF) |
|
74 | Alarm/Notification time interval (dependant on parameter 73) | This parameter defines the time interval of the blinking state, once the module receives an alarm/notification event. Minimum step increase is 1 minute.
NOTE: This parameter does not have any effect if parameter 73 is not set to value 3. | 0 | 1 | 1 | 125 | 10 | From | To | Description |
|---|
1 | 125 | 1-125 minutes |
|
