Mini Gateway – Z-Wave Alliance Product Catalog

Back to Listing

Product Recognition

Certification Number

ZC12-23100351

Name

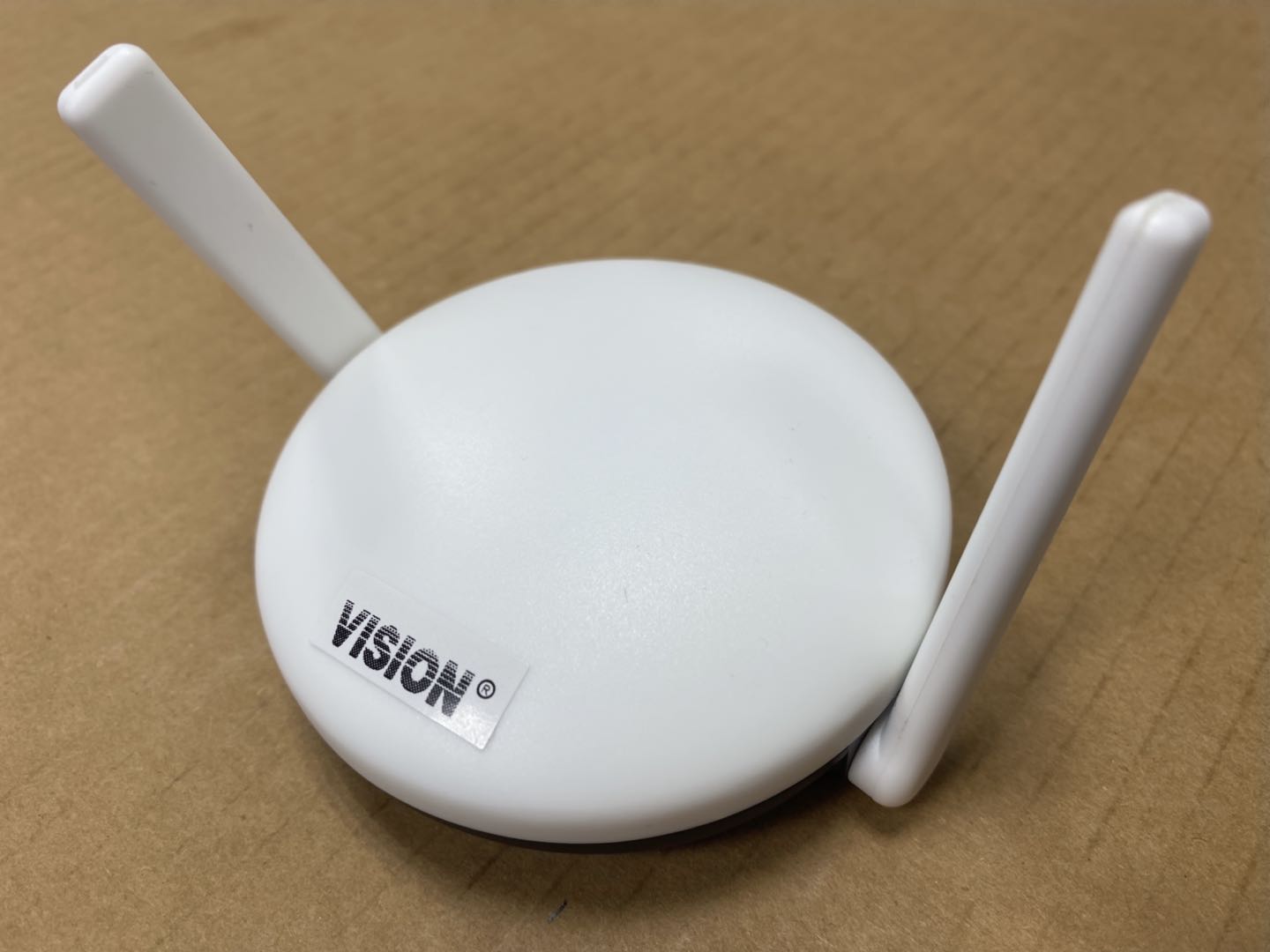

Mini Gateway

Short Description

This gateway is designed to manage your intelligent home with friendly and easily understanding interface.

Long Description

This gateway designed to manage your intelligent home and may control up to 230 devices via the wireless Z-Wave™ communication protocol. This Hub connects all of the different Z-Wave sensors around your home so that you can receive notifications by smartphone even you are away from home.

Brand

Vision

Product Identifier

ZA1021BR-7

Product Line

Home Security

OEM Version

HW: 2 FW: 7.15:07.15

Hardware Platform

ZGM130

Z-Wave Version

7.15.4

Library Type

CONTROLLER_BRIDGE

Device Type

Gateway

Role Type

ROLE_TYPE_CONTROLLER_CENTRAL_STATIC

Manufacturer ID

0x0109

Product Type ID

0x1006

Product ID

0x0601

User Icon

0x0500

Installer Icon

0x0500

Frequency Plans

ANZ: 919.80MHz, 921.40MHz

Categories

All Controllers, Gateway Controller

Countries / Regions

Malaysia

Supported Command Classes

Controlled Command Classes

S2 Classes

S2_UNAUTHENTICATED, S2_AUTHENTICATED, S2_ACCESS_CONTROL

Documents

Features

Association Groups

Texts

ID	Description	Value
9	Capability Rediscovery	Step 1: Click “Request” button, the Mini Gateway would rediscovery the device capability. Step 2: If successful, the device information would update correctly.
24	Controller Classic Exclusion	Step 1: Click button “Remove Device”. Step 2: System is on exclusion mode and waiting for user to trigger the intended device to removal mode. Step 3: If the exclusion is successful, system will show the excluded node ID on the pop-up window.
3	Controller Learn Mode	1) Follow the manufacturer’s instructions of the other controller to enable it into Add mode. 2) Click “Learn Mode” button. If it is a S2 Controller, the DSK of the Gateway will appear. Please key in the DSK to the other Controller UI when prompted. 3) When completed, the UI will show the existing Controller and device(s) in the network.
10	Controller Replication	1) Start the add device process in Adding Device. 2) Follow the manufacturer’s instructions of the other controller to enable it to go into learn mode. 3) Enter DSK code if necessary, and await the whole process to finish.
11	Controller SmartStart Inclusion	Step 1: Click “SmartStart” from Z-Wave menu. Step 2: Type in 40 decimals S2 DSK number of the device which user wants to add in using SmartStart and presses “Send”.
25	Controller Provisioning List	You can use “Remove” button to remove the specified DSK.
8	Where to find S2 DSK on product	page 23
23	Controller Classic Inclusion	Step 1: Click button “Add Device” on the website. Step 2: System is on inclusion mode and waiting for user to trigger inclusion mode of device. Step 3: After triggering device, the gateway will show “Setting Security Grant”. If the device supports S2 Security, please choose the security level for the device. If the selection is “S2 Access Control” or “S2 Authenticated”, the system will prompt user to input the device first 5 digit of the DSK. If device only supports S0, the gateway will automatically skip “Setting Security Grant” step. Step 4: Wait for the whole inclusion process to finish; it may take up to 1-2 minutes depending on the device. Step 5: If the inclusion is successful, the system will show “device included successfully”. Otherwise, a failure message will appear. Step 6: If the inclusion is successful, you will be asked to name the device and set up a location of the device.
5	Factory Reset Procedure	Step 1: Click Gateway setting button. Step 2: Select “Z-Wave Reset” button. Step 3: Confirm the dialog. Click “Reset” button will perform a factory reset to the Gateway.

Supported / Controlled Meter Types

Supports NWI

Yes

Supports Explorer Frames

Yes

Supports SmartStart

Yes

Radio Range Z-Wave (m)
