Product Recognition | — |
|---|---|
Certification Number | ZC08-13100015 |

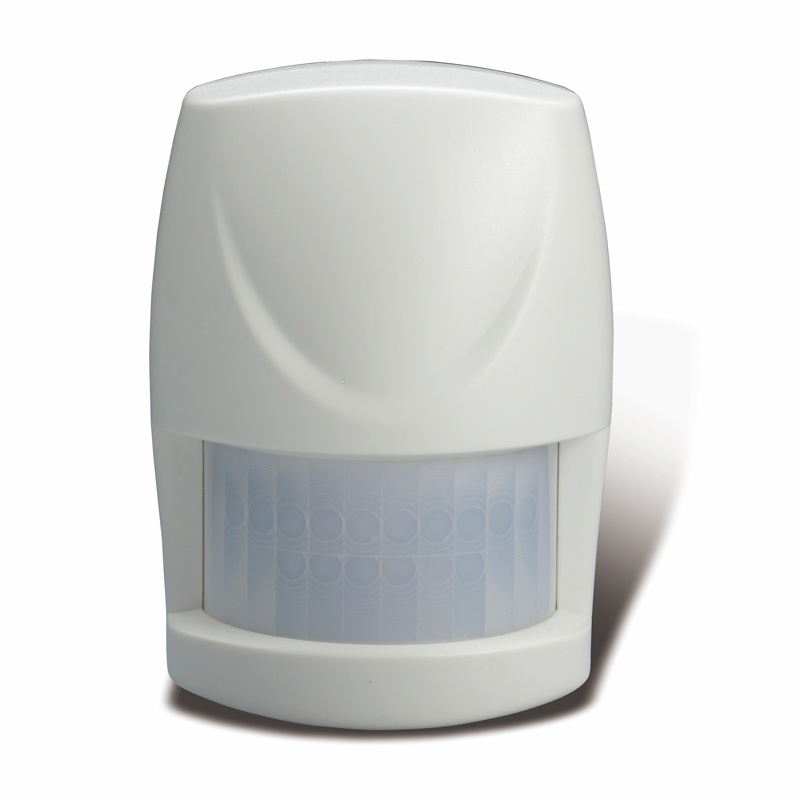

Name | Motion Detector |
Long Description | The Motion Detector is designed with two detecting sensors, Passive Infra-Red (PIR) sensor and light sensor, to detect movement within a protected area.
The detector can be used as a security device or home automation device. When the detector is cooperated with security appliances, the detector is acting as a security device by detecting changes in infra-red radiation levels. If a person moves within or across the devices field of vision, a trigger radio signal will be transmitted to cause full alarm condition in order to frighten intruders away. Alternatively, when the detector is worked with Z-Wave Controller , the detector can be set to perform the role of home automation device by detecting both changes in infra-red radiation levels and percentage of lux levels. Once night falls, the percentage of ambient illumination is lower than preset value. If a person moves within or across the devices field of vision, a trigger radio signal will be transmitted so as to turn connected lightings for better illumination. |
Brand | Everspring |
Product Identifier | HSP02-0 |
OEM Version | v2.0 |
Hardware Platform | ZW0301 |
Z-Wave Version | 4.54.02 |
Library Type | SLAVE_ENHANCED |
Device Type | Not Z-Wave Plus |
Manufacturer ID | 0x0060 |
Product Type ID | 0x0001 |
Product ID | 0x0003 |
Frequency Plans | US: 916.00MHz, 908.40MHz |
Categories | Sensors |
Countries / Regions | United States of America |
Controlled Command Classes | |
Documents | |
Supports Explorer Frames | Yes |
Radio Range Z-Wave (m) | 40 |
