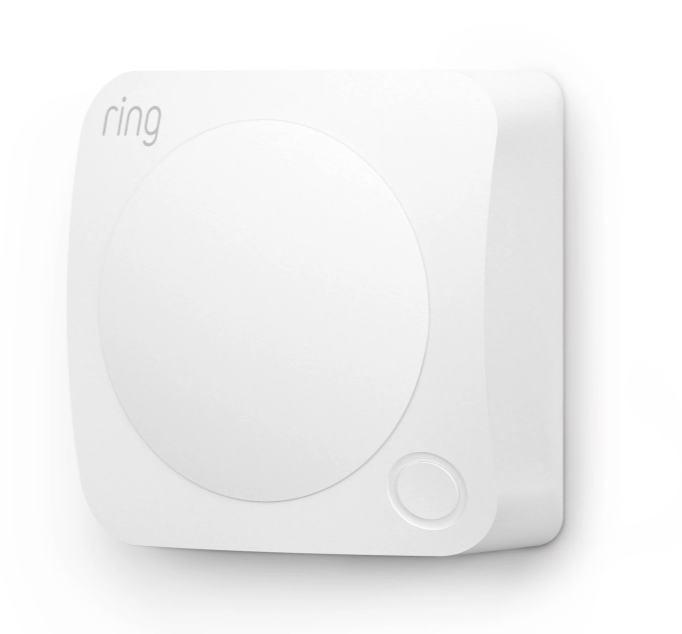

COMMAND_CLASS_CONFIGURATION_V4

Configuration V4

0x70

4

COMMAND_CLASS_POWERLEVEL

Powerlevel

0x73

1

COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3

Multi-Channel Association V3

0x8E

3

COMMAND_CLASS_INDICATOR_V3

Indicator V3

0x87

3

COMMAND_CLASS_BATTERY

Battery

0x80

1

COMMAND_CLASS_TRANSPORT_SERVICE_V2

Transport Service V2

0x55

2

COMMAND_CLASS_DEVICE_RESET_LOCALLY

Device Reset Locally

0x5A

1

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

Z-Wave Plus Info V2

0x5E

2

COMMAND_CLASS_ASSOCIATION_V2

Association V2

0x85

2

COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5

Firmware Update Meta-Data V5

0x7A

5

COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3

Association Group Information V3

0x59

3

COMMAND_CLASS_NOTIFICATION_V8

Notification V8

0x71

8

COMMAND_CLASS_SECURITY_2

Security S2

0x9F

1

COMMAND_CLASS_VERSION_V3

Version V3

0x86

3

COMMAND_CLASS_SUPERVISION

Supervision

0x6C

1

COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2

Manufacturer Specific V2

0x72

2

Manual_Primary_Lang

Product Manual

1

5

0

Lifeline

0x0001

This is the Lifeline group with the following command class support - 1. Notification Report a. See notification CC section for notifications that are sent 2. Battery Report 3. Device Reset Locally Notification

1

Heartbeat Interval

This parameter is the number minutes between heartbeats. Heartbeats are automatic battery reports on a timer after the last event.

2

Yes

1

1

70

70

2

Application Retriess

Number of application level retries attempted for messages either not ACKed or messages encapsulated via supervision get that did not receive a report.

2

Yes

1

0

5

1

3

Application Level Retry Base Wait Time Period

The number base seconds used in the calculation for sleeping between retry messages.

2

Yes

1

1

96

5

4

LED Indicator Enable

This parameter allows a user, via software, to configure the various LED indications on the device. 0 == Don't show green 1 == Show green after Supervision Report Intrusion (Fault) 2 == Show green after Supervision Report both Intrusion and Intrusion clear

2

Yes

1

0

2

1

5

Runtime Occ Clear Delay

Delay time in seconds for occupancy signal to clear

2

Yes

1

0

255

0

6

Runtime Intrusion Clear Delay

Delay time in seconds for intrusion signal to clear

2

Yes

1

0

255

0

7

Runtime Std Clear Delay

Standard delay time in seconds

2

Yes

1

0

255

0

8

Motion Detection Mode

Adjusts motion sensitivity

2

Yes

1

0

4

3

9

Lighting Enabled

Enable or Disable light sensor

2

Yes

1

0

1

0

10

Lighting Delay

Delay used to turn off lights when motion is no longer detected

2

Yes

1

0

60

2

11

Supervisory Report Timeout

The number of milliseconds waiting for a Supervisory Report response to a Supervisory Get encapsulated command from the sensor before attempting a retry.

2

Yes

2

500

30000

10000

8

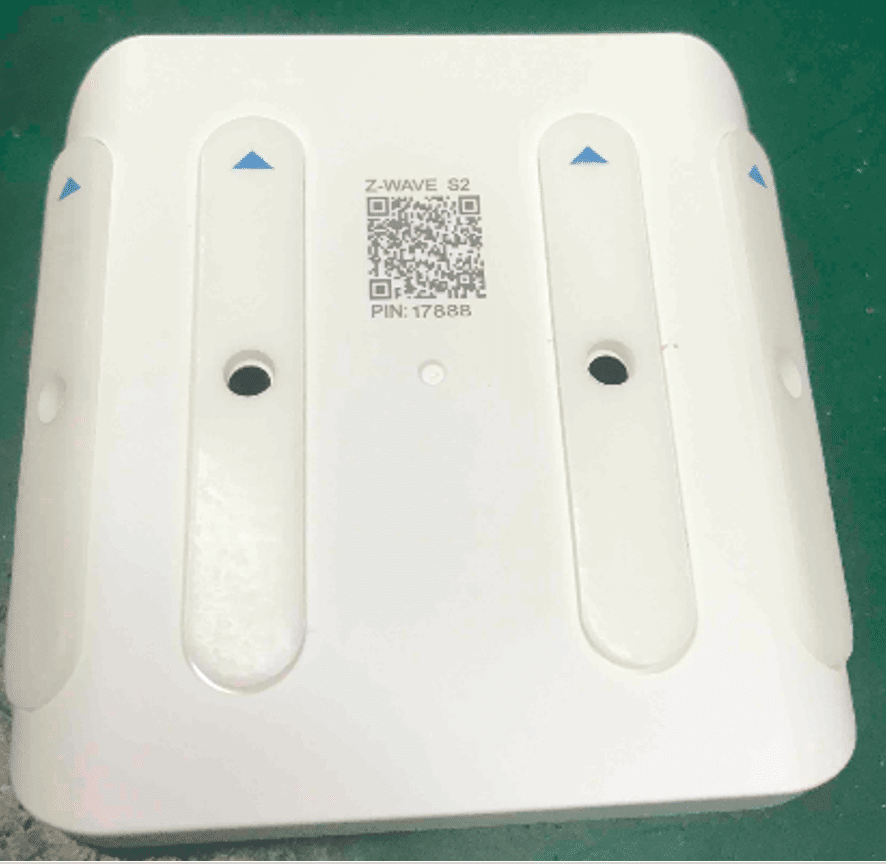

Where to find S2 DSK on product

The 5-digit DSK pin found on the package of the Ring Alarm Motion Detector or the 5-digit DSK pin found under the QR code on the device.

1

Classic Inclusion

After powering on the device, press and hold the button on the front of the device for ~3 seconds. Release the button and the device will enter Classic inclusion mode which implements both classic inclusion with a Node Information Frame, and Network Wide Inclusion. During Classic Inclusion mode, the green LED will blink three times followed by a brief pause, repeatedly. When Classic inclusion times-out, the device will blink alternating red and green a few times.

2

Classic Exclusion

Exclusion Instructions: 1. Initiate remove “Ring Alarm Motion Detector” flow in the Ring Alarm mobile application – Select the settings icon from device details page and choose “Remove Device” to remove the device. This will place the controller into Remove or “Z-Wave Exclusion” mode. 2. Locate the pinhole reset button on the back of the device in the battery compartment. 3. With the controller in Remove (Z-Wave Exclusion) mode, use a paper clip or similar object and tap the pinhole button. The device’s red LED turns on solid to indicate the device was removed from the network.

4

Wake-Up Procedure

Not applicable. Ring Alarm Motion Detector is a Frequently Listening Receiver Slave (FLiRS) device and does not support Wake Up Command Class.

5

Factory Reset Procedure

Factory Default Instructions 1. To restore Ring Alarm Motion Detector to factory default settings, locate the pinhole reset button on the device. This is found inside the battery compartment on the back of the device after removing the back bracket. 2. Using a paperclip or similar object, insert it into the pinhole, press and hold the button down for 10 seconds. 3. The device will rapidly blink green continuously for 10 seconds. After about 10 seconds, when the green blinking stops, release the button. The red LED will turn on solid to indicate the device was removed from the network. Note: Use this procedure only in the event that the network primary controller is missing or otherwise inoperable.

Home Security

(Refer to parameters): State idle

Home Security

Cover status: Tampering, product cover removed

Home Security

Motion sensor status: Motion detection

Power Management

Power status: Power has been applied

Power Management

Voltage drop/drift

System

SW status: System software failure (manufacturer proprietary failure code provided)

System

Heartbeat
