Product Recognition
Certification Number	ZC10-14100005

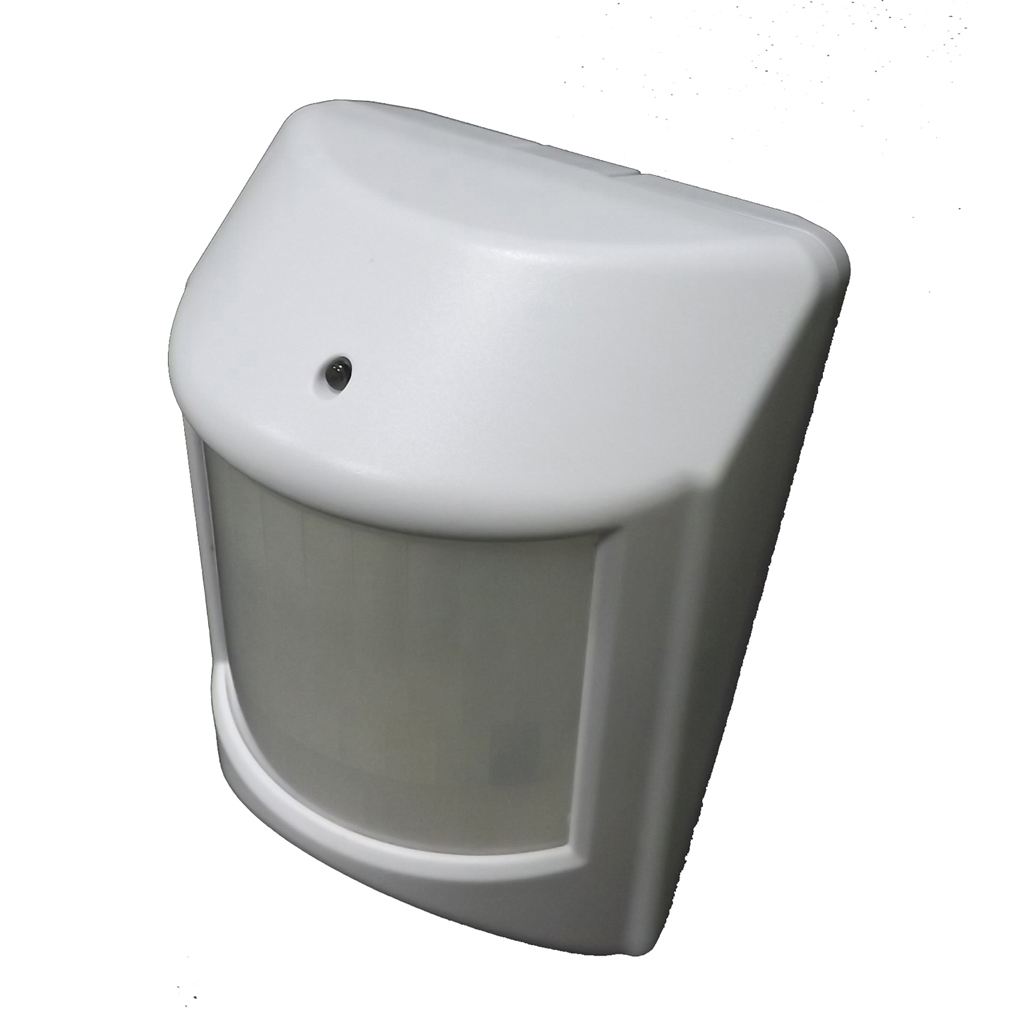

Name	Motion Detector (with Temperature Sensor)
Short Description	The ZP3102 is a Z-Wave enabled motion detector and temperature sensor.
Long Description	The ZP3102 is a Z-Wave enabled motion detector and temperature sensor. The motion detector has 120 degrees of horizontal visibility and 60 degrees of vertical visibility. The temperature sensor that is built in to the ZP3102 is capable of reporting in both Celsius and Fahrenheit scales, and may be queried for the temperature and it will report it automatically when it detects changes. The sensor is battery operated and includes the ability to report the battery level and will transmit an alert signal if the battery assumes a critically low level. The ZP3102 is future-proofed by also supporting the ability to have its firmware updated over the Z-Wave network.
Brand	Vision
Product Identifier	ZP3102EU-5
OEM Version	02
Hardware Platform	ZM5202
Z-Wave Version	6.51.02
Library Type	SLAVE_ENHANCED_232
Device Type	Notification Sensor
Role Type	ROLE_TYPE_SLAVE_SLEEPING_REPORTING
Manufacturer ID	0x0109
Product Type ID	0x2002
Product ID	0x0205
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	Security Add-Ons
Countries / Regions	European Union
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC Basic 0x20 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual 20140725 - (Z-WAVE CERTIFICATION) ZP 3102-5 PIR_20140722_500 Series.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Z-Wave Plus Lifeline
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 1 Retriggering Time User could set up the retriggering time from 1 ~ 255 minutes using values 0x00 to 0xFF (-128 to 127). 0 1 0 0 3 From To Description 1 255 Retriggering Time 2 Temperature Scale User could choose the temperature reported scale by following: 0x00 - Celsius 0x01 - Fahrenheit 0 1 0 0 0 From To Description 0 1 Temperature type 3 Infrared sensor sensitivity Infrared sensor sensitivity adjustment: 1 = most sensitive 7 = most insensitive 0 1 0 0 4 From To Description 1 7 Sensitivity Adjustment
Texts	ID Description Value 2 Exclusion Put the Z-Wave Interface Controller into “exclusion” mode, and following its instruction to delete the ZP3102 to your Z-Wave network. Press the Program Switch of ZP3102 once to be excluded. The LED on the ZP3102 should start to flash. 1 Inclusion Put the Z-Wave Interface Controller into 'inclusion' mode, and follow its instructions to add the ZP3102 to your Z-Wave network. For a successful inclusion, it is suggested to have the sensor and your Z-Wave controller about one meter apart. Press the Program Switch of the ZP3102 (refer to the manual for the location of the program switch) ready the ZP3102 for inclusion into the Z-Wave network. If inclusion does not take place or is unsuccessful within 20 seconds, the ZP3102 will go to sleep; if this happens, simply repeat pressing the program switch to try again. 4 Device Wake-Up Remove the rear cover to wake up the device, or set the wake up interval time from 10 minutes to 1 week. The battery will be drained quickly if you fail to replace the cover after using that method to wake up the device. 5 Factory Reset Removing the rear cover to wake up the device. Press Program Switch 10 times within 10 seconds, ZP3102 will go back to factory default. (This is to be used only in the case of the primary controller being inoperable or otherwise unavailable.)
Supports NWI	Yes
Supports Explorer Frames	Yes
