Certification Number | ZC10-17125907 |
|---|

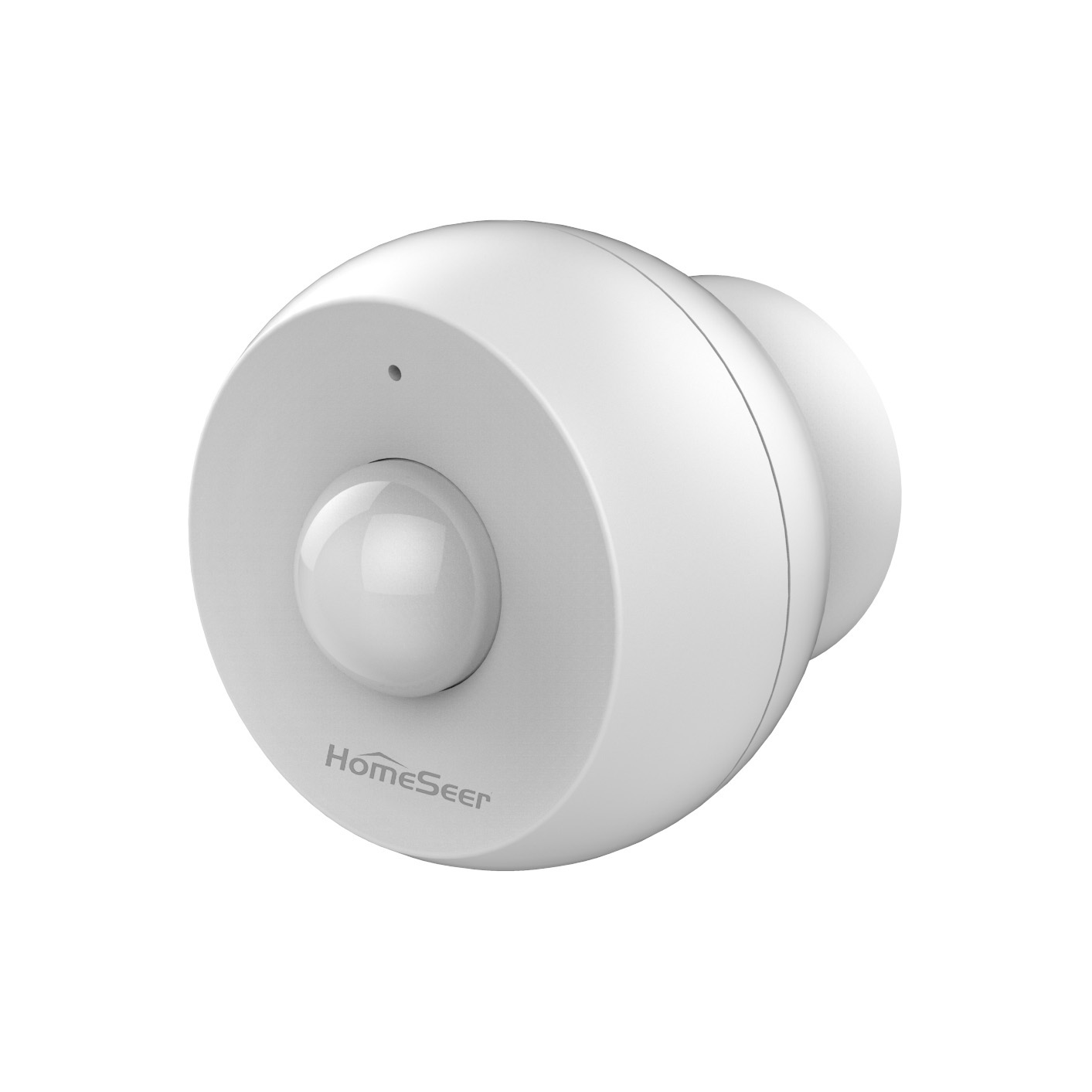

Name | Motion Sensor |
|---|
Short Description | Motion sensor is a universal Z-Wave Sensor. It can detect motion and communicate with other associated Z-Wave devices, such as Gateway, Siren, Smart Switch, etc. |
|---|
Long Description | Motion sensor can be included and operated in any Z-Wave network with other Z-Wave certified devices.
The features list:
1) Z-Wave Plus certified for wide compatibility (500 serials product).
2) Supports security 0 and security 2 protected mode with AES-128 encryption.
3) Motion sensor.
4) Tamper alarm by shock sensor.
5) The battery life is up to 1 year.
6) Low battery alarm.
7) Support firmware OTA. |
|---|
Brand | HomeSeer |
|---|
Product Identifier | HS-MS100+ |
|---|
OEM Version | HW: 1 FW: 1.00 |
|---|
Hardware Platform | ZM5101 |
|---|
Z-Wave Version | 6.71.01 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
Manufacturer ID | 0x000C |
|---|
Product Type ID | 0x0201 |
|---|
Product ID | 0x0009 |
|---|
User Icon | 0x0C07 |
|---|
Installer Icon | 0x0C07 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | Sensors |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_NOTIFICATION_V5 | Notification V5 | 0x71 | 5 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V3 | Firmware Update Meta-Data V3 | 0x7A | 3 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC | Basic | 0x20 | 1 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Sensors | | Supported Notification Types | | Battery Type | | Color | | Battery Quantity | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | Z-Wave Plus Lifeline:
1. Notification Report.
Sensor will send Notification Report to the associated nodes when Motion Sensor is removed or/and PIR is triggered.
2. Battery Report.
Motion Sensor will send Battery Report when the battery level is low and the battery report’s value is 0xFF.
3. Device Reset Locally Notification.
| 2 | 5 | 0 | 1. Basic Set.
Motion Sensor will send Basic Set to associated nodes when the PIR is triggered.
|
|
|---|
Configuration Parameters | Parameter Number | Name | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
17 | ENABLE/DISABLE SHOCK ALARM | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 1 | when the value is 0, the product will not sends a vibration alarm after moving or shaking; when the value is 1, the product will sends a vibration alarm after moving or shaking |
|
|
|---|
Texts | ID | Description | Value |
|---|
4 | Device Wake-Up | Press and hold the Z button for more than 5 seconds and release. | 1 | Inclusion | 1) Open the cover.
2) Place the device within the direct range of your Z-Wave controller.
3) Set the main controller in add mode (see the controller’s manual).
4) Click the Z-button once or triple click the Z-button quickly, the LED indicator should blink fast.
5) Wait for the adding process to end.
6) Successful adding will be confirmed by the Z-Wave controller’s message. | 2 | Exclusion | 1) Open the cover.
2) Place the device within the direct range of your Z-Wave controller.
3) Set the main controller remove mode (see the controller’s manual).
4) Triple click the Z-button quickly, the LED indicator should blink fast.
5) Wait for the removing process to end.
6) Successful adding will be confirmed by the Z-Wave controller’s message. | 5 | Factory Reset | 1)Power on the device,
2) Press and hold the Z button for more than 20 seconds,
3) If holding time more than 20seconds, the LED indicator will keep on for 2 seconds, which means resetting is complete.
4) The reset feature works only when the device has been included into a Z-Wave network.
Use this procedure only in the event that the network primary controller is missing or otherwise inoperable. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Home Security | (Refer to parameters): State idle |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
Air temperature |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
