Product Recognition | |
|---|
Certification Number | ZC10-19056522 |
|---|

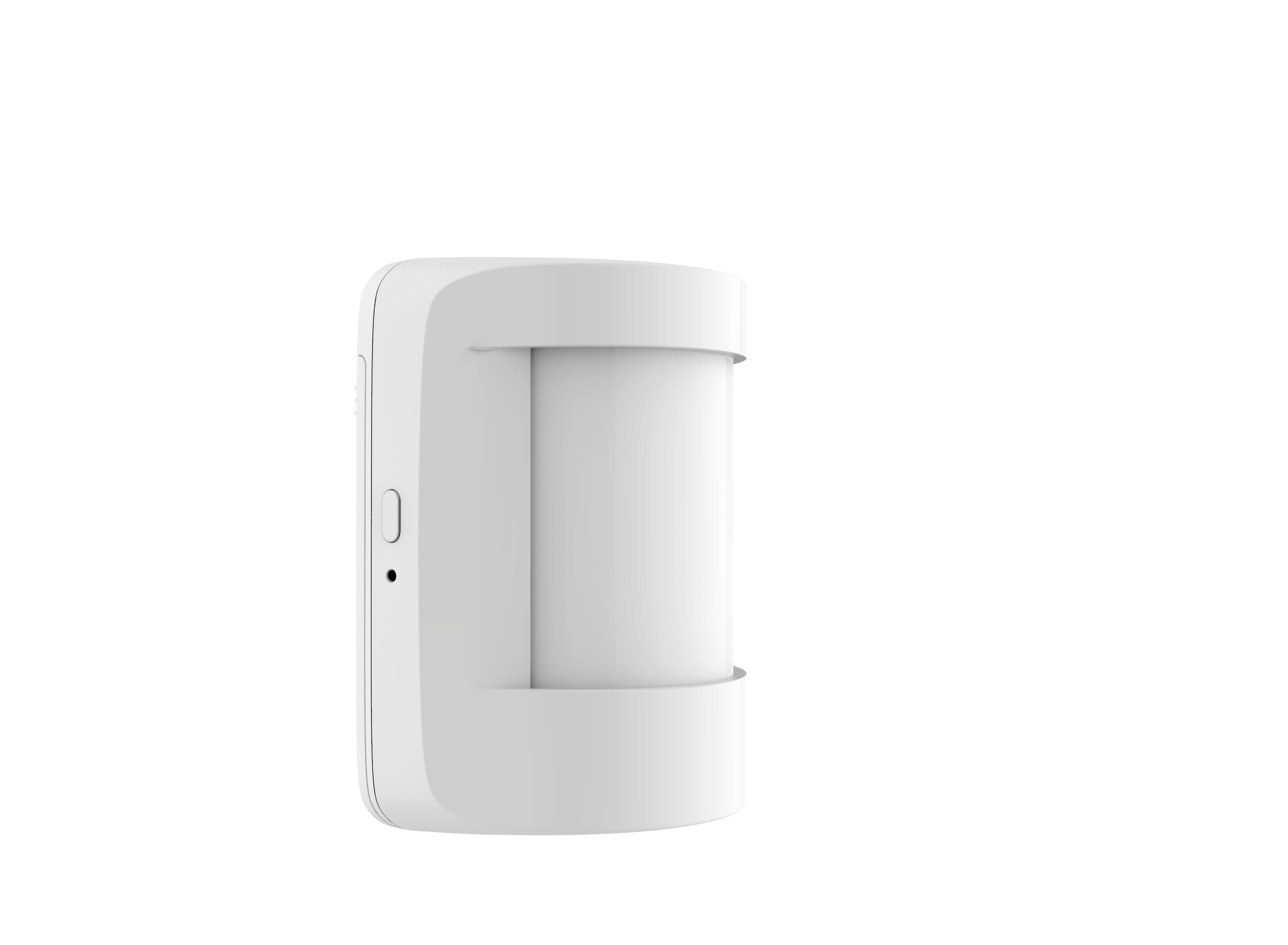

Name | Motion Sensor |
|---|
Short Description | The Motion Sensor lets you know when movement is detected in a certain area and can trigger different actions in response to that movement (or lack of movement). |
|---|
Long Description | This motion sensor is a passive infrared sensor with pet immunity function. This sensor can effectively shield a certain weight of animals to prevent false triggering caused by animal passing. Motion Sensor can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers. Motion Sensor is supports the Over-The-Air (OTA) feature for the product’s firmware upgrade. |
|---|
Brand | LEEDARSON |
|---|
Product Identifier | 7C-SS-VA-H0 |
|---|
OEM Version | HW: 1 FW: 2.00 |
|---|
Hardware Platform | ZM5101 |
|---|
Z-Wave Version | 6.81.04 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
Manufacturer ID | 0x0300 |
|---|
Product Type ID | 0x0300 |
|---|
Product ID | 0x0026 |
|---|
User Icon | 0x0C07 |
|---|
Installer Icon | 0x0C07 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | Sensors |
|---|
Countries / Regions | European Union |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_SENSOR_MULTILEVEL_V5 | Sensor Multilevel V5 | 0x31 | 5 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC | Basic | 0x20 | 1 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Battery Type | | Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Sensors | Value |
|---|
Motion/No Motion (Binary) | Luminance |
| Supported Notification Types | | Battery Quantity | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | Lifeline
1. Notification Report.
Sensor will send Notification Report when Motion Detection Unknown Location and (Event inactive).
2. Motion Sensor Report
Sensor will send Multilevel Sensor Report (luminance) interval when PIR triggered.
3. Battery Report.
Sensor will send Battery Report when the battery level is low and the battery report’s value is 0xFF.
4. Device Reset Locally.
| 2 | 5 | 0 | Send Basic Set when PIR trigger |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
10 | Low Battery Power Level Low battery power level of alarm threshold values | Low battery power level of alarm threshold values: the value range are 0~50 for percentage, the battery low power level can setting 0%~50%. | 0 | 1 | 0 | 0 | 10 | From | To | Description |
|---|
0 | 50 | Low battery power level of alarm threshold values |
| 17 | Enable/disable pet immunity mode. | Enable/disable pet immunity mode. This feature is lens dependent and detection range may be reduced when Pet Immunity is enabled. 0 = Disable the pet immunity mode 1 = Enable the pet immunity mode | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
0 | 1 | Enable/disable pet immunity mode.0 = Disable the pet immunity mode,1 = Enable the pet immunity mode |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | Add the Motion Sensor into the Z-Wave network:
1. Power on your Motion Sensor, and let your Z-Wave controller into add/inclusion mode.
2. Implement the button action, the Motion Sensor will send out a node info security CC in command class list (Security inclusion), the LED will be fast blink for 60 seconds.
3. If the inclusion is successful, the LED will be turn on within 2 seconds. If failed, LED will be turn off forever, and please repeat the steps in above. | 2 | Exclusion | Remove Motion Sensor from a Z-Wave network:
1. Power on your Motion Sensor, and let the Z-Wave primary controller into remove mode.
2. Press the button on the Motion Sensor, the LED will be turn on for 60 seconds.
3. If Motion Sensor has been successfully removed from your Z-Wave network, the LED will be fast blink 2 seconds. If failed, LED will be turn off forever, and please repeat the steps in above. | 5 | Factory Reset | Reset Motion Sensor to factory default.
NOTE:
1. Triggering this action, in 5 seconds LED will be fast blink. The LED will be turn on within 2 second until hold time is equal to 5 seconds. Motion Sensor will send “Device_Reset_Locally” to the main controller and exclude from the Z-Wave network when the button is released, this procedure will reset the sensor to factory default.
2. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
3. When not in the network, ignore this operation. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Light sensor | (Refer to parameters): State idle | Light sensor | Light detection status: Light detected | Light sensor | Light color transition detected |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
General purpose | Illuminance |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
